Omron R88D-KN series User Manual

4 System Design
4-42
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type

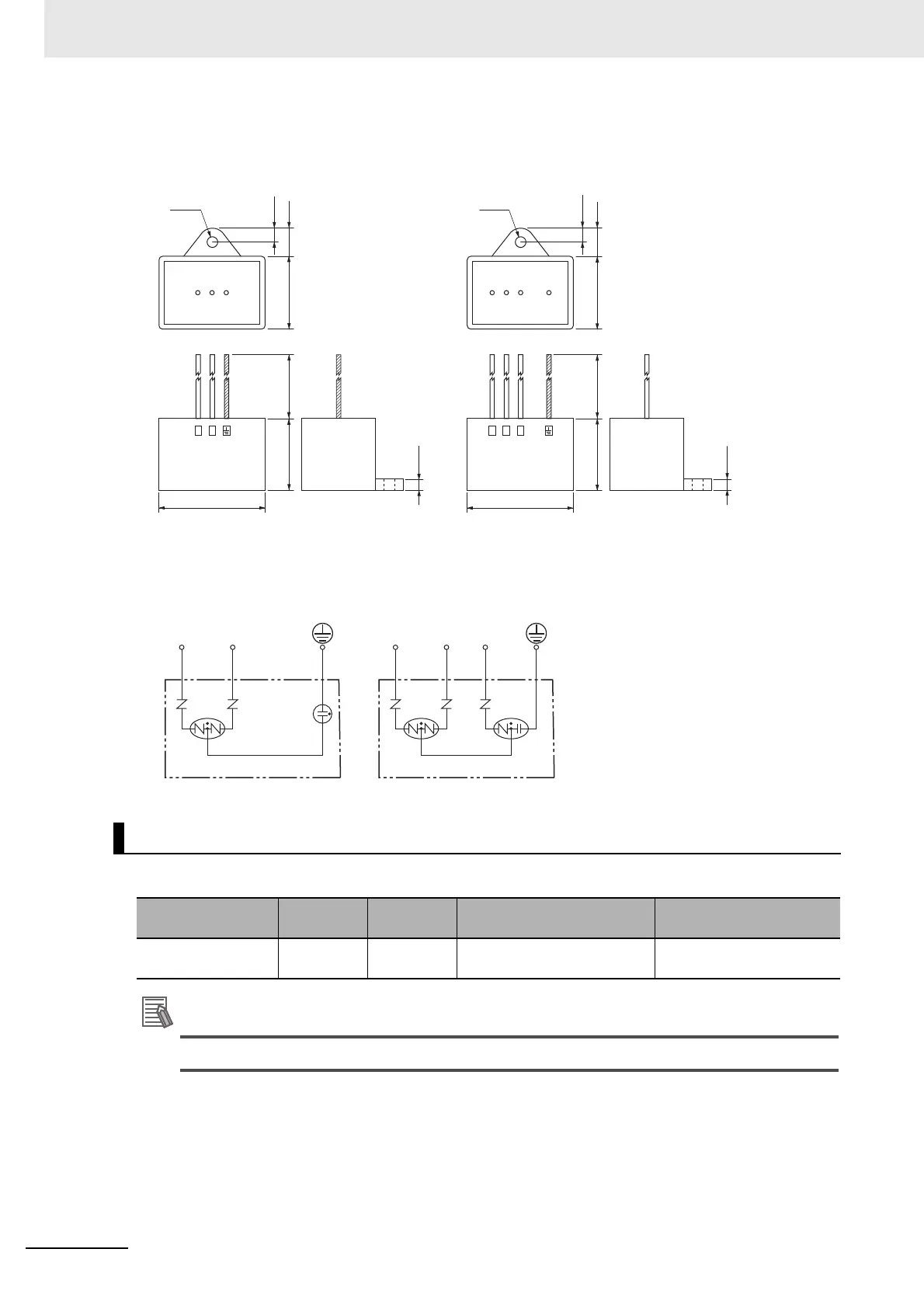

 External Dimensions
 Equalizing Circuits
• Use the following noise filter for the brake power supply.
Additional Information
Noise can also be reduced by 1.5 turns with the ZCAT3035-1330 (TDK) Radio Noise Filter.
Noise Filter for the Brake Power Supply
Model
Rated
current
Rated
voltage
Leakage current Manufacturer
SUP-EK5-ER-6 5 A 250 V 1.0 mA (at 250 Vrms, 60 Hz) Okaya Electric Industries
Co., Ltd.
123
28
4.5
28.5 11
5.5
φ
4.2
41
200
For 3-phase (BXZ series)
For single-phase (BWZ series)
21
28
4.5
28.5 11
5.5
φ
4.2
41
200
(1) (2) (3)
For 3-phase (BXZ series)
For single-phase (BWZ series)
(1) (2)
