Omron S8BA-24D24D120LF User Manual

4-4 UPS operation mode settings
4 Check and start operation
S8BA-24D24D□□□LF
69
4
(C)
(C)
(B)
(B)
(B)
(B)
(B)
(C)
(C)
(B)
(B)
(B)
(B)
(B)
(B)
(B)
(B)
(B)

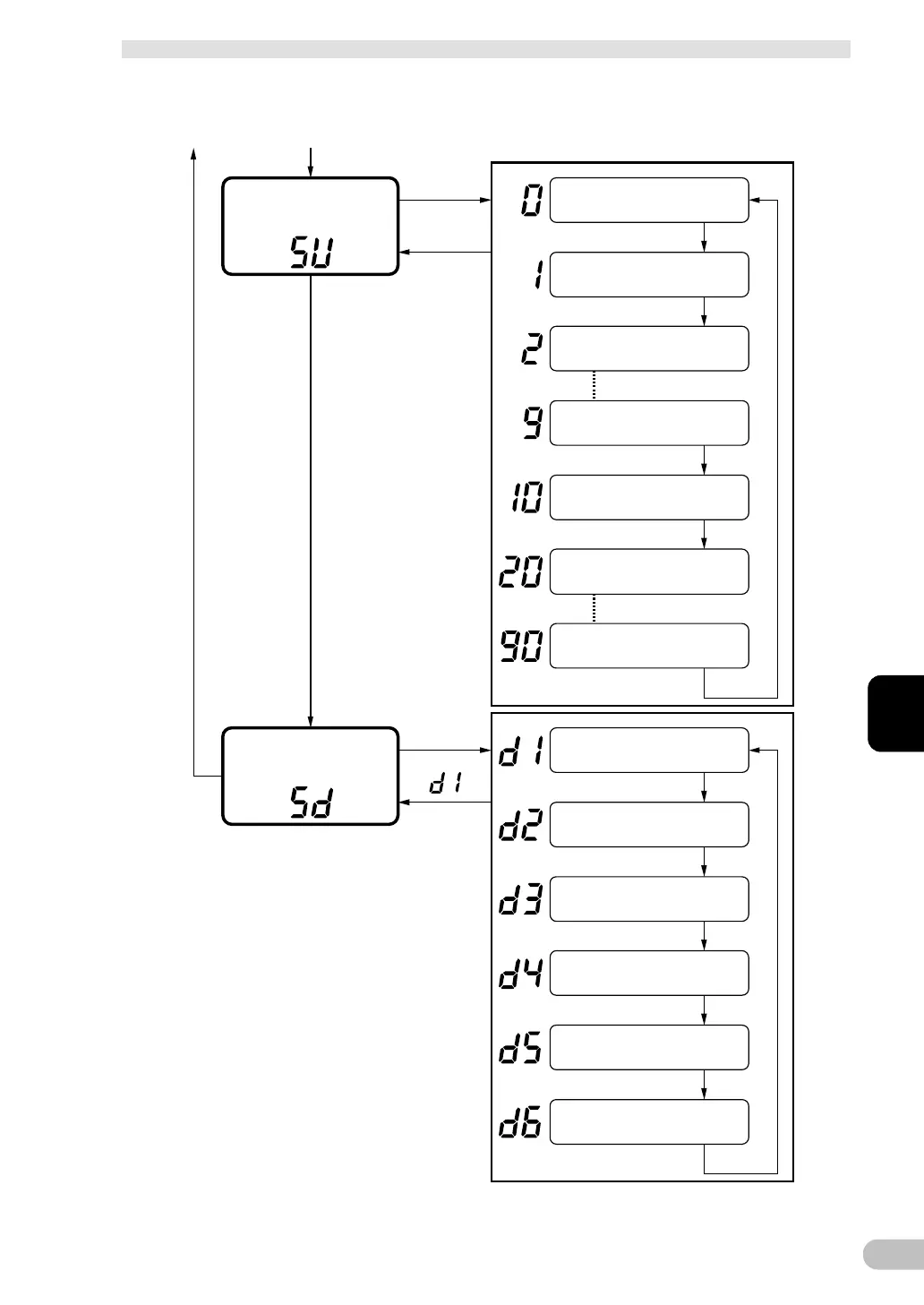

1 second delay
2 seconds delay
9 seconds delay
0 second delay (default)
BU signal delay time
setting
Display
current
setting
20 seconds delay
10 seconds delay
(1 sec. step)
TR signal* test
BU signal* test
WB signal* test
BL signal* test
I/O signal test
Display
Remote ON/OFF test
BS signal* test
90 seconds delay
(10 sec. step)
(previous page)
*For details, see 7-1 I/O signal functions.
Operation (A): pressing the “Beep Stop/Test” switch and turn on the “Power” switch.
Operation (B): pressing the “Beep Stop/Test” switch below 1 second and then release it.
Operation (C): pressing the “Beep Stop/Test” switch 1 second or more and then release it.
Operat
ion (D): turning off the “Power” switch.
