4-27
4-3 Wiring Conforming to EMC Directives
4
System Design

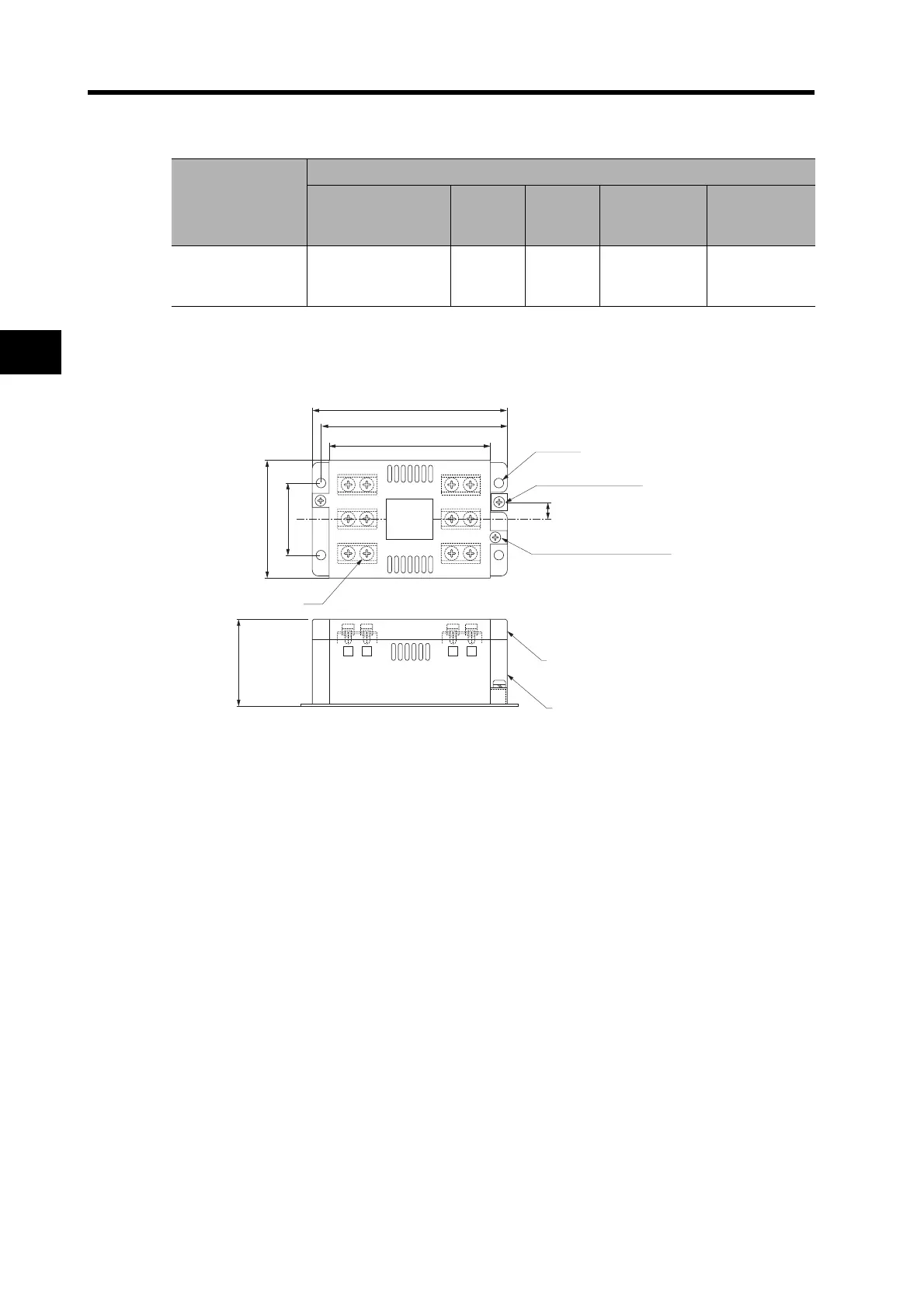

Noise Filter for the Power Supply Input
Use the following noise filter for the Servo Drive’s power supply.
Dimensions
Servo Drive model
Noise filter
Model
Rated
current
Rated
voltage
Max. leakage
current
(60 Hz)
Maker
R7D-BP Series 3SUP-HU10-ER-6 10 A 250 VAC 0.4 mA/phase
Okaya Electric
Industries Co.,
Ltd.
105
5.5
43
70
52
10
95
Ground terminal
M4
Cover mounting screw
M3
Cover
Noise Filter
M4
Label
115
