Chapter 2
2-24
Standard Models and Specifications

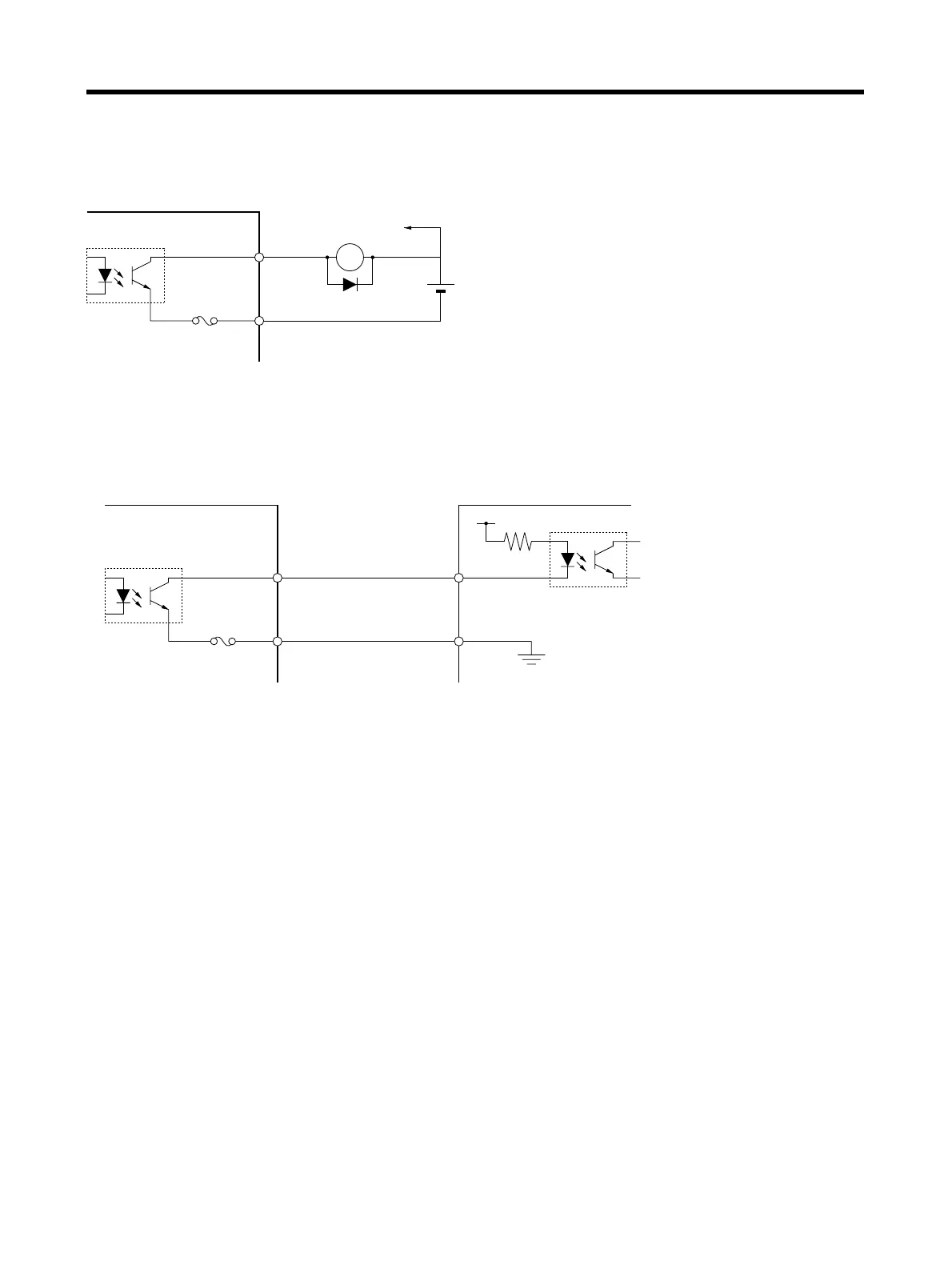

■ Control Output Circuits
● Sequence and Alarm Outputs
Note Automatic-reset fuses are used for output protection. If overcurrent causes the fuse to operate,
current will not flow, and after a fixed period of time it will automatically reset.
● Phase-Z Output
Note Automatic-reset fuses are used for output protection. If overcurrent causes the fuse to operate,
current will not flow, and after a fixed period of time it will automatically reset.
To other output circuits
Di: Diode for preventing surge voltage (Use speed diodes.)
External power supply
24 V DC ± 1 V
Maximum operating voltage: 30 V DC
Maximum output current: 50 mA
Servo Driver
+
−
X
Di
(See note.)
Maximum operating voltage: 30 V DC
Maximum output current: 20 mA
(See note.)
FG
ZCOM
Z32
33
Servo Driver
Controller
