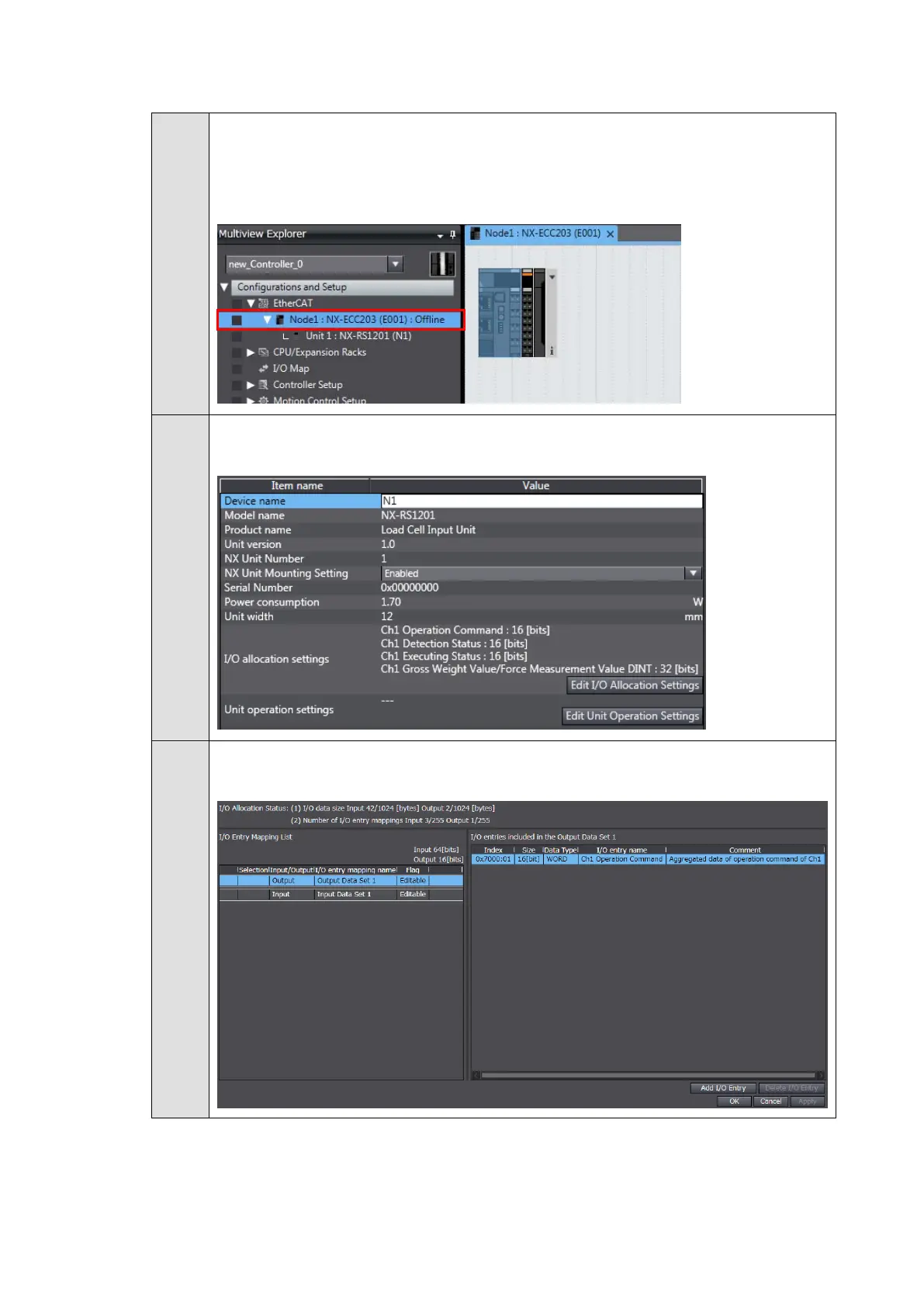

With the Sysmac Studio and the CPU Unit being offline, double-click the
Communications Coupler Unit to which your Load Cell Input Unit is connected in the
Multiview Explorer to open the Edit Slave Terminal Configuration Tab Page.
The following tab page is displayed.
2
In the Edit Slave Terminal Configuration Tab Page, click your Load Cell Input Unit.
The following tab page is displayed.
3
Click the Edit I/O Allocation Settings Button.
The following tab page is displayed.
