Omron SYSMAC NX series Startup Guide

36

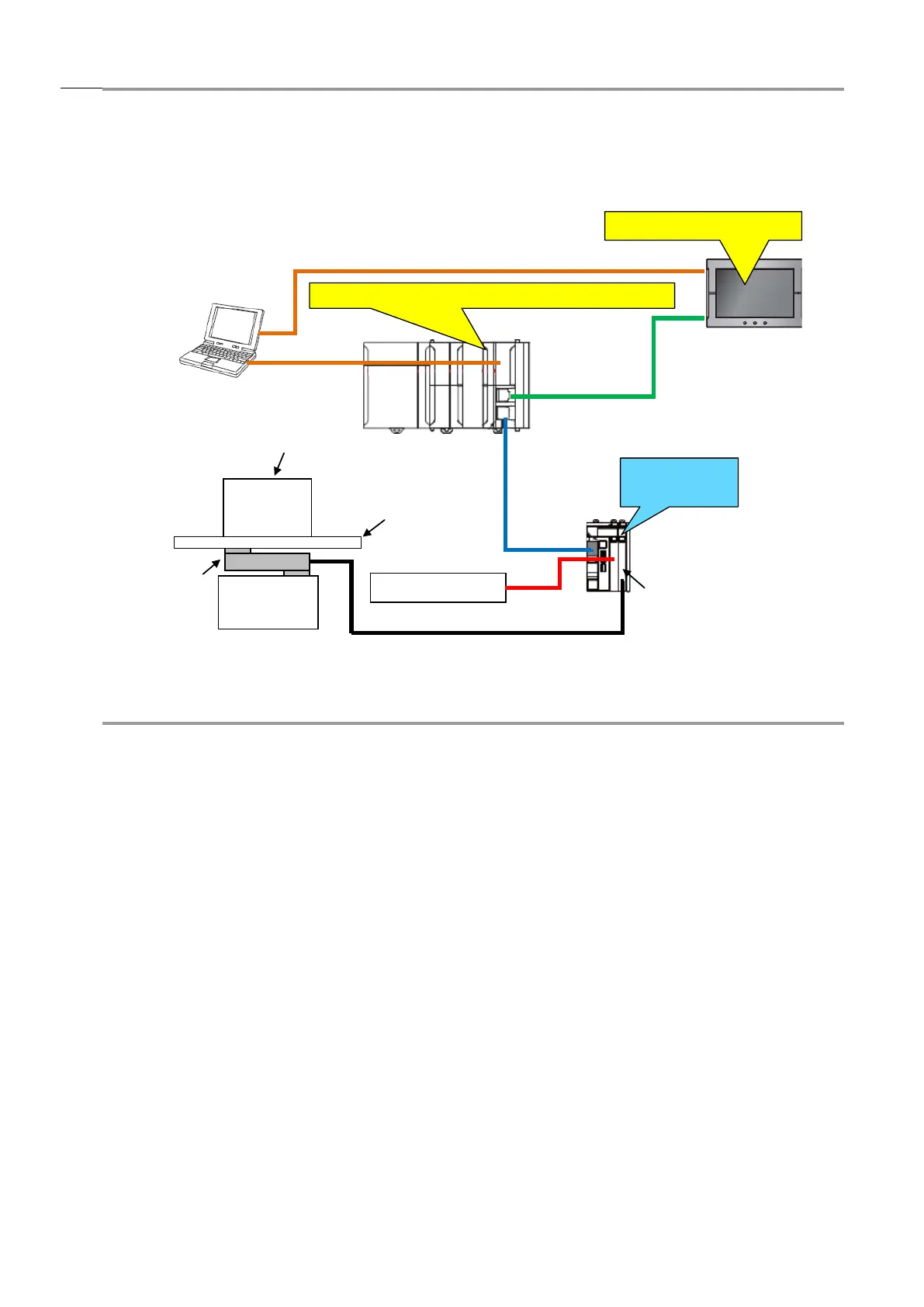

Following the above condition where zero set is performed, placing a measured material on the
scale allows the weight value of the measured material to be checked from the I/O data, Ch1
Gross Weight Value/Force Measurement Value DINT and Ch1 Gross Weight Value/Force
Measurement Value REAL.
NX-series
Load Cell Input Unit
(NX-RS1201
)
Unit power supply
Personal computer
(Sysmac Studio
already installed)
Ch1 Gross Weight Value/Force Measurement Value DINT = 10
Display value = 10 kg
10 kg
Measured material
Zero set is
active !
Scale (5 kg)
Load cell
Refer to 8-3 Zero Set/Zero Reset described in the NX-series Load Cell Input Unit User’s Manual
(Cat. No. W565) for details on the zero set feature.
From the Sysmac Studio’s I/O map, you can check the values of Ch1 Gross Weight Value/Force
Measurement Value DINT and Ch1 Gross Weight Value/Force Measurement Value REAL. Refer
to the previously mentioned procedure in 3.4.2. Checking Measurement Values
●When the
Calibration Method is Actual Load Calibration for how to check measurement values from the
Sysmac Studio’s I/O map.
