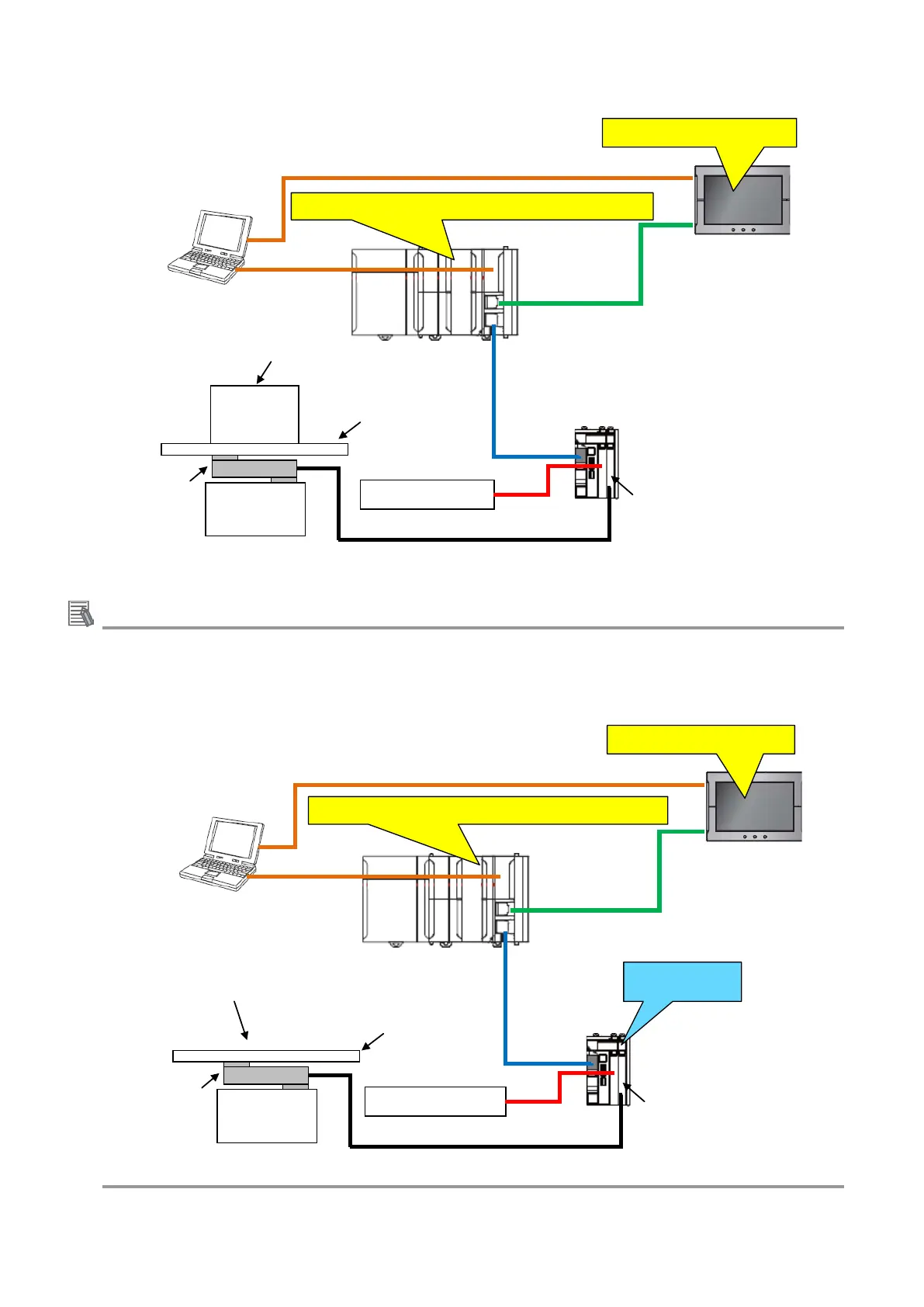

Omron SYSMAC NX series Startup Guide

35
NX-series
Load Cell Input Unit
(NX-RS1201)
Scale (5 kg)
Unit power supply
Personal computer
(Sysmac Studio
already installed)
Ch1 Gross Weight Value/Force Measurement Value DINT = 15
Display value = 15 kg
10 kg
Measured material
Load cell
Additional Information
When performing a calibration by the equivalent input calibration method, if you want to measure
the weight value of the measured material excluding the weight of the scale, execute zero set with
only the scale placed on a load cell, as in the figure below. If you execute zero set with this state,
the gross weight value with only the scale placed on a load cell is corrected to 0.
NX-series
Load Cell Input Unit
(NX-RS1201)
Unit power supply
Personal computer
(Sysmac Studio
already installed
)
Ch1 Gross Weight Value/Force Measurement Value DINT = 0
Display value = 0 kg
Only a scale is placed on the load cell.
Zero set !
Scale (5 kg)
Load cell
