Characteristic Data According to Conditions of Use
SECTION 7
Appendix
105

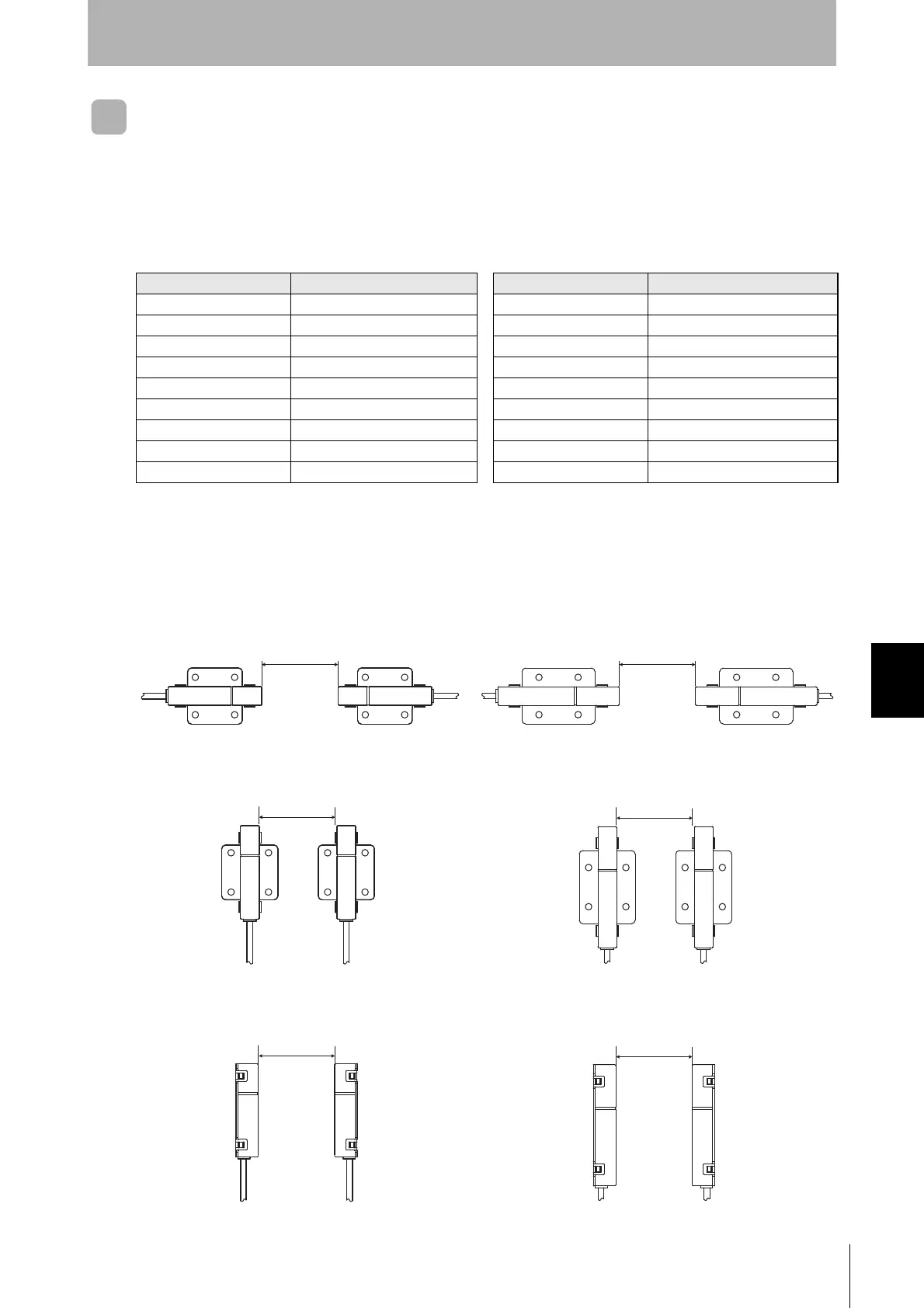

Mutual Interference Distances (Reference Only)
If Amplifier Units are connected using multidrop connections and multiple CIDRW Heads are used, the
CIDRW Heads will not process commands simultaneously. In this case, install the CIDRW Heads at
least 0.1 m apart from each other.
Distance between Antennas and Changes in Communications Distances (Reference Only)
If CIDRW Heads in separate CIDRW systems process commands simultaneously when the CIDRW
Systems are installed close to each other, mutual interference between the Heads can result in mal-
functions. If this is a problem, install the CIDRW Heads separated at least by the distances shown in
the following illustrations.
■ For Coaxial Installation
■ For Parallel Installation
■ For Face-to-Face Installation
• V640-HS61 • V640-HS62
Distance between Antennas Change in communications distance Distance between Antennas Change in communications distance
1,000 mm 100% 2,000 mm 99%
900 mm 100% 1,600 mm 99%
800 mm 100% 1,400 mm 95%
700 mm 99% 1,200 mm 84%
600 mm 90% 1,000 mm 68%
500 mm 74% 800 mm 53%
400 mm 55% 600 mm 34%
300 mm 40% 400 mm 15%
200 mm 15% 200 mm 0%
1 m min.
• V640-HS61
• V640-HS62
2 m min.
1 m min.
• V640-HS61
• V640-HS62
2 m min.
1 m min.
• V640-HS61
• V640-HS62
2 m min.
