SECTION 7
Specifications and Dimensions
CIDRW System
User’s Manual
SECTION 7
Appendix

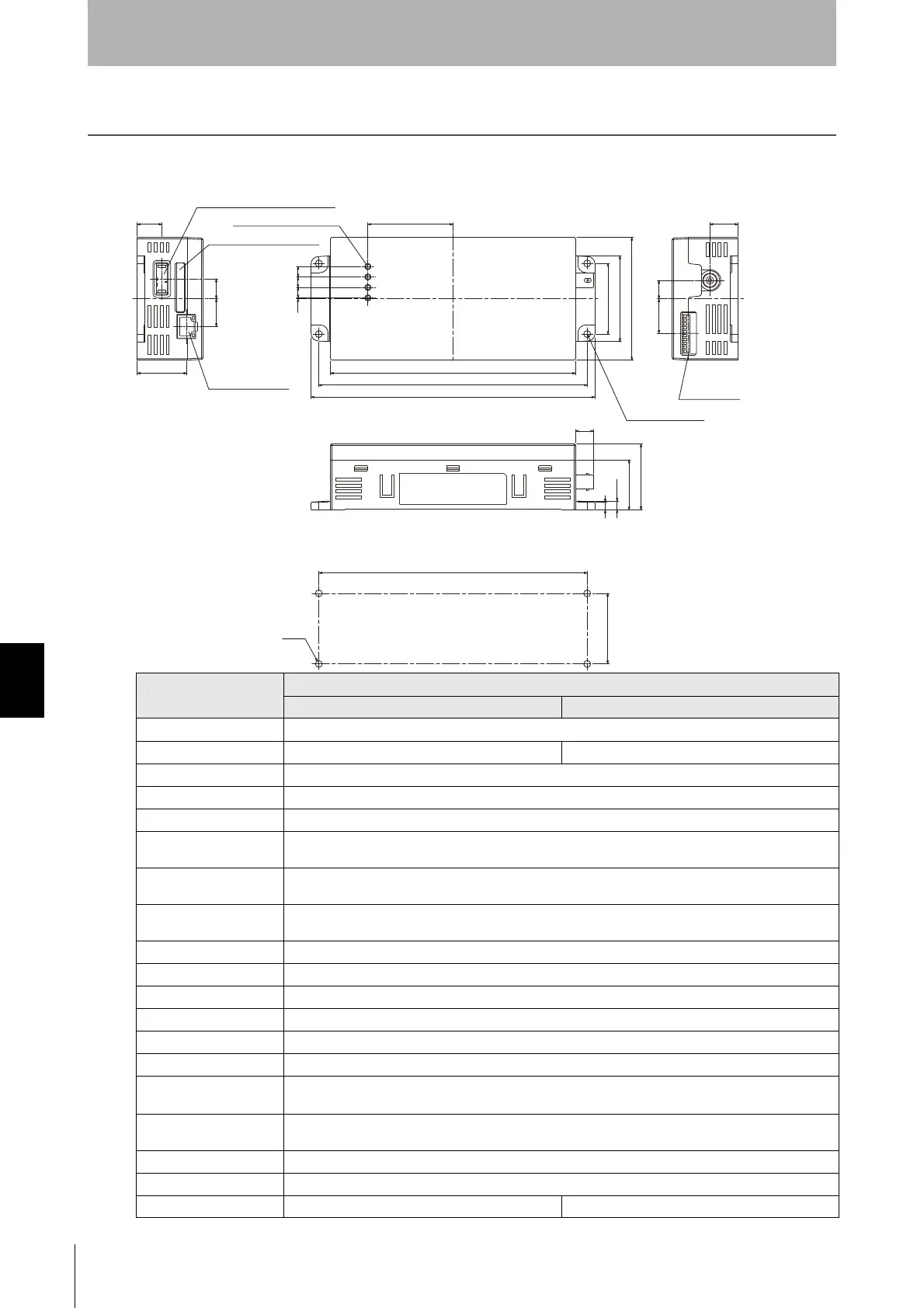

Specifications and Dimensions
Amplifier Units
V640-HAM11-ETN-V2 and V640-HAM11-L-ETN-V2
Item
Specifications
V640-HAM11-ETN-V2 V640-HAM11-L-ETN-V2
Power supply voltage 24 VDC +10% -15%
Current consumption 150 mA max. 400 mA max.
Degree of protection IP20 (IEC60529: 2001)
Ambient temperature Operating: 0 to +40°C Storage: -15 to +65°C (with no icing)
Ambient humidity Operating/Storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min.(with 100 VDC megohmmeter)
between power supply terminals and the frame ground terminal
Dielectric strength 1,000 VAC (50/60 Hz for 1 min.) leak current consumption 5 mA max.
between both power supply terminals and the frame ground terminal
Vibration resistance 10 to 150 Hz, double amplitude: 0.20 mm, Max. Acceleration: 15 m/s
2
with 10 sweeps for 8 min. each in 3 directions
Shock resistance 150 m/s
2
, 3 times each in 6directions
Ground Ground to 100 Ω or less.
Case material PC/ABS resin
Dimensions 80×185×43 mm (W×D×H, excluding protruding parts)
Mass Approx. 250 g
Frequency 134.2 kHz
Rediated magnetic field
strength
maximum 35 dBμA/m at 10 meters (fixed)
Environmental pollution
degree
Degree 2
Over voltage category Category Ι
Mounting method Secured with four M4 screws. (tightening torque: 1.2N·M)
CIDRW Head V640-HS61 V640-HS62
175±0.5
160
175
185
55.5
46
56
80
6.86.86.80.6
(11.5)
(32.5)
43
5
(5.7)
(13)
(18)
(31.95)
(15.8)
(12)
(18.2)
(22.5)
4-M4
46±0.5
DIP switch
(Unit: mm)
Mounting dimensions
Four, 4.5-dia. holes
DC power supply connector
RS-485 connector
RS-232C connector
Four operation indicators
