Omron V640 Series User Manual

80
SECTION 7
Connection Examples
CIDRW System
User’s Manual
SECTION 7
Appendix

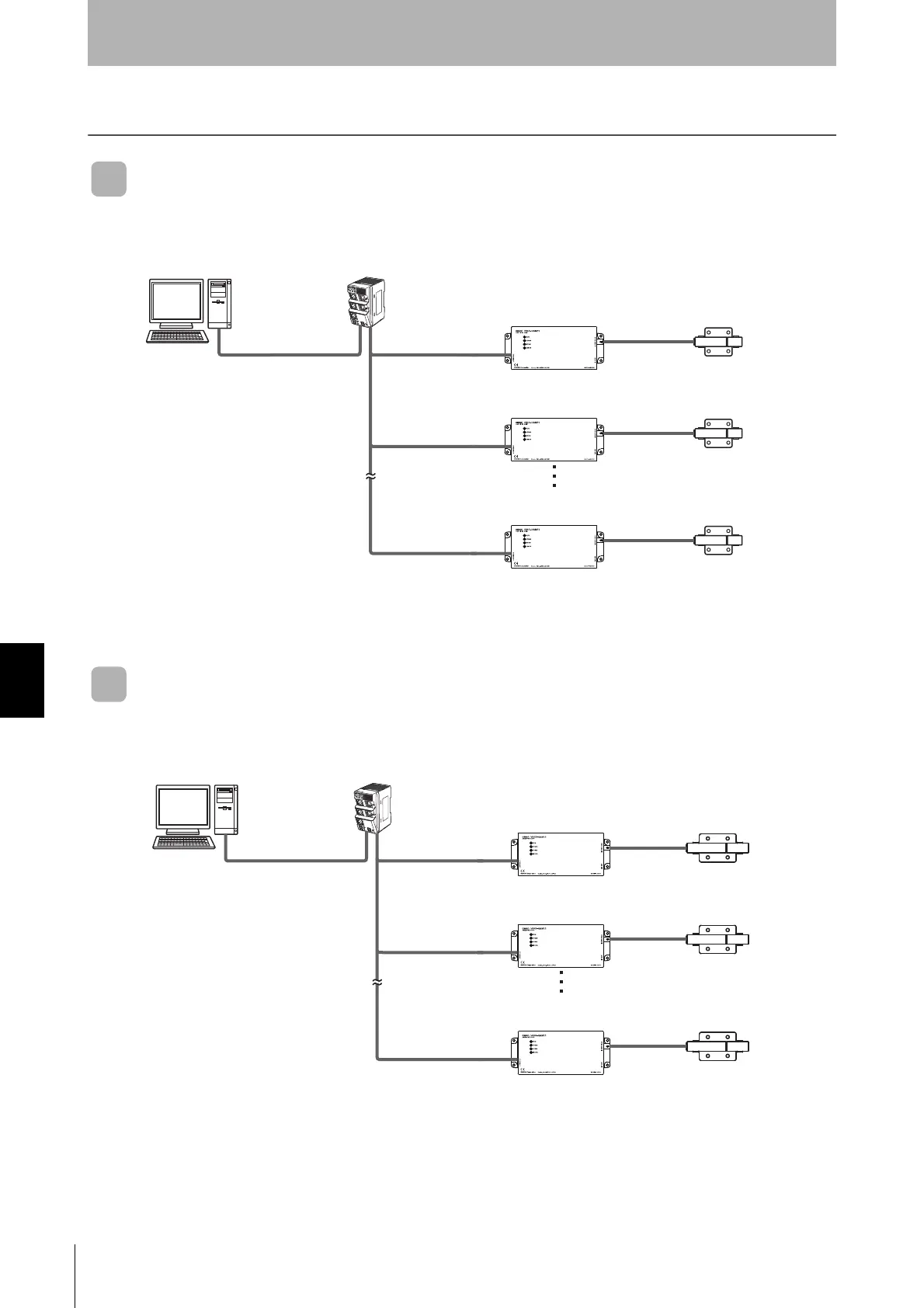

Connection Examples
V640-HAM11-ETN-V2
Connect the host device and Amplifier Unit using a LAN cable.
V640-HAM11-L-ETN-V2
Connect the host device and Amplifier Unit using a LAN cable.
Host device
Host computer,
device controller, etc.
CIDRW Head
V640-HS61
Amplifier Unit
V640-HAM11-ETN-V2
Ethernet hub
Recommended: W4S1-05B(OMRON)
LAN cable
LAN cable
CIDRW Head
V640-HS61
Amplifier Unit
V640-HAM11-ETN-V2
LAN cable
CIDRW Head
V640-HS61
Amplifier Unit
V640-HAM11-ETN-V2
LAN cable
The Amplifier Unit controls the
CIDRW Head.
The CIDRW Head is the
antenna. It reads and writes
carrier IDs and performs
other processing for ID Tags.
Host device
Host computer,
device controller, etc.
CIDRW Head
V640-HS62
Amplifier Unit
V640-HAM11-L-ETN-V2
Ethernet hub
Recommended: W4S1-05B(OMRON)
LAN cable
LAN cable
CIDRW Head
V640-HS62
Amplifier Unit
V640-HAM11-L-ETN-V2
LAN cable
CIDRW Head
V640-HS62
Amplifier Unit
V640-HAM11-L-ETN-V2
LAN cable
The Amplifier Unit controls the
CIDRW Head.
The CIDRW Head is the
antenna. It reads and writes
carrier IDs and performs
other processing for ID Tags.
