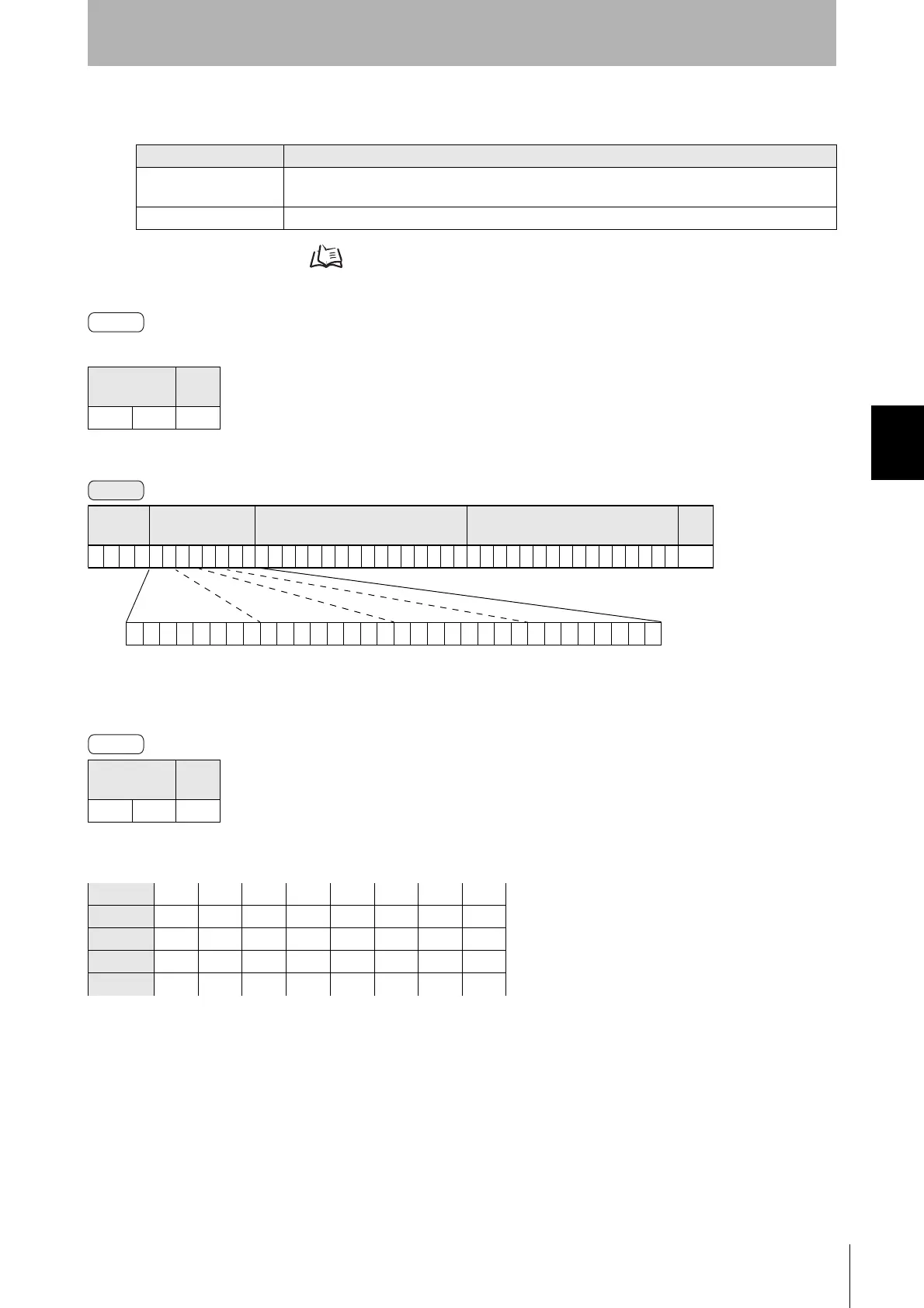

37
CIDRW System
User’s Manual
SECTION 4
Command/Response Format
SECTION 4
Reading from/Writing to ID Tags
ID Tag Memory Maps Refer to page 111.
The response code (when normal: 00) is returned.
Example: Writing Data to Pages 8 and 10 of the Amplifier Unit
The ID Tag status on normal completion is as shown below.
Parameter Description
Parameter Description
Page designation Pages are specified by setting the bits corresponding to pages that are to be read to 1 and setting
the other bits to 0, then converting the result to a hexadecimal character string.
Write data The data to be written to the specified pages is specified in ascending order of page numbers.
Response
code
CR
000Dh
Response
code
CR
000Dh
Page 8 11h 22h 33h 44h 55h 66h 77h 88h
Page 9
Page 10 01h 23h 45h 67h 89h ABh CDh EFh
Response
Command
00000000000000000000101000000000
Command
code
Page designation Data of page 8 Data of page 10 CR
0 2 0 000000A0011223344556677880123456789ABCDEF 0Dh
Binary
notation
Response
