Omron V640 Series User Manual

96
SECTION 7
Characteristic Data According to Conditions of Use
CIDRW System
User’s Manual
SECTION 7
Appendix
• Parallel Mounting (RI-TRP-DR2B-30)
• READ
• WRITE
-250 -200 -150 -100 -50 0 50 100 150 200 250
0
50
100
150
200
250

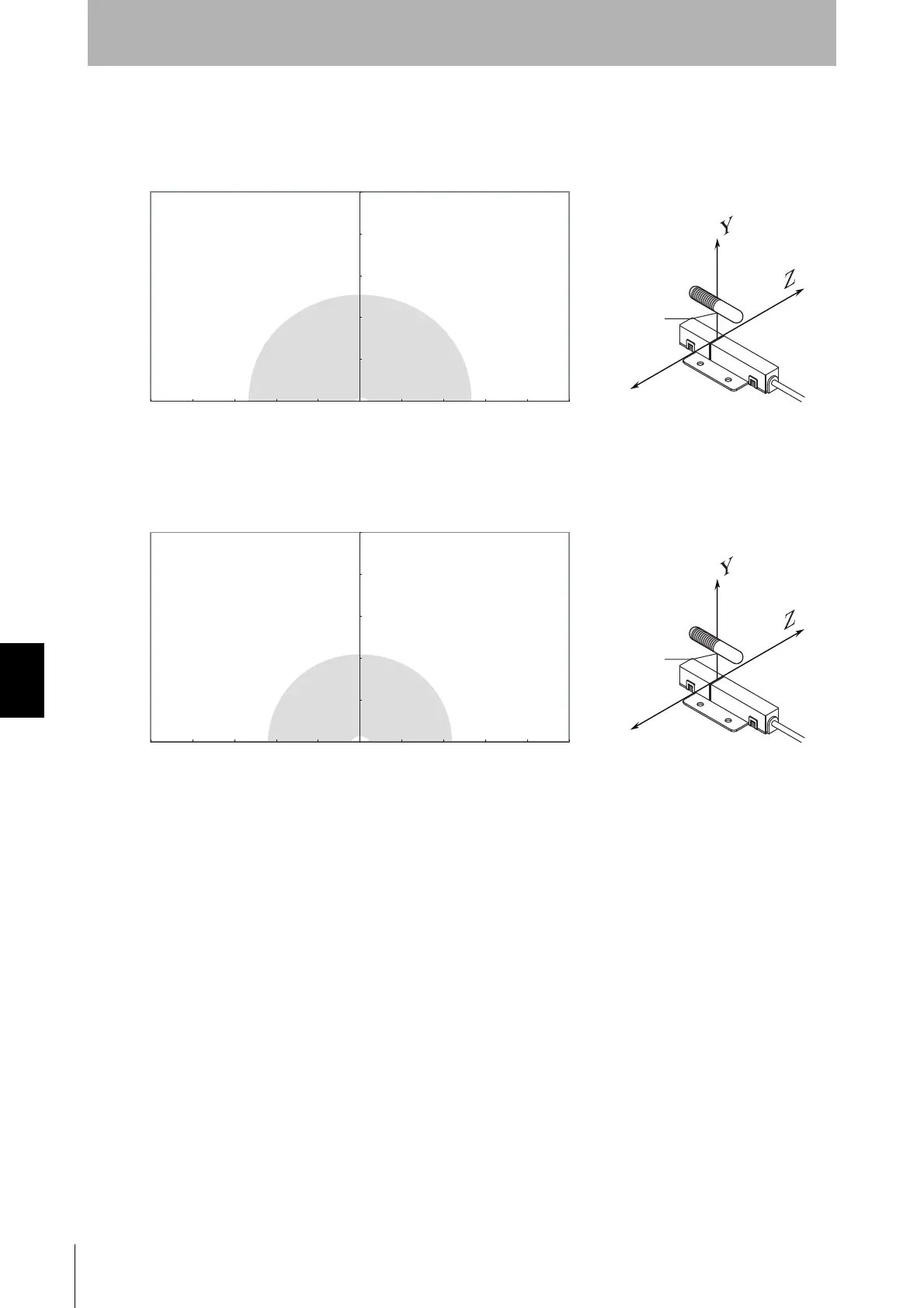

Communications Area (READ)
Distance in Y direction (mm)
Distance in Z direction (mm)
Measurement
point
㻙㻞㻡㻜 㻙㻞㻜㻜 㻙㻝㻡㻜 㻙㻝㻜㻜 㻙㻡㻜 㻜 㻡㻜 㻝㻜㻜 㻝㻡㻜 㻞㻜㻜 㻞㻡㻜
㻜
㻡㻜
㻝㻜㻜
㻝㻡㻜
㻞㻜㻜
㻞㻡㻜
Communications Area (WRITE)
Distance in Y direction (mm)
Distance in Z direction (mm)
Measurement
point
