Characteristics According to Operating Conditions
SECTION 7
Appendices
131
 V680S-D2KF68

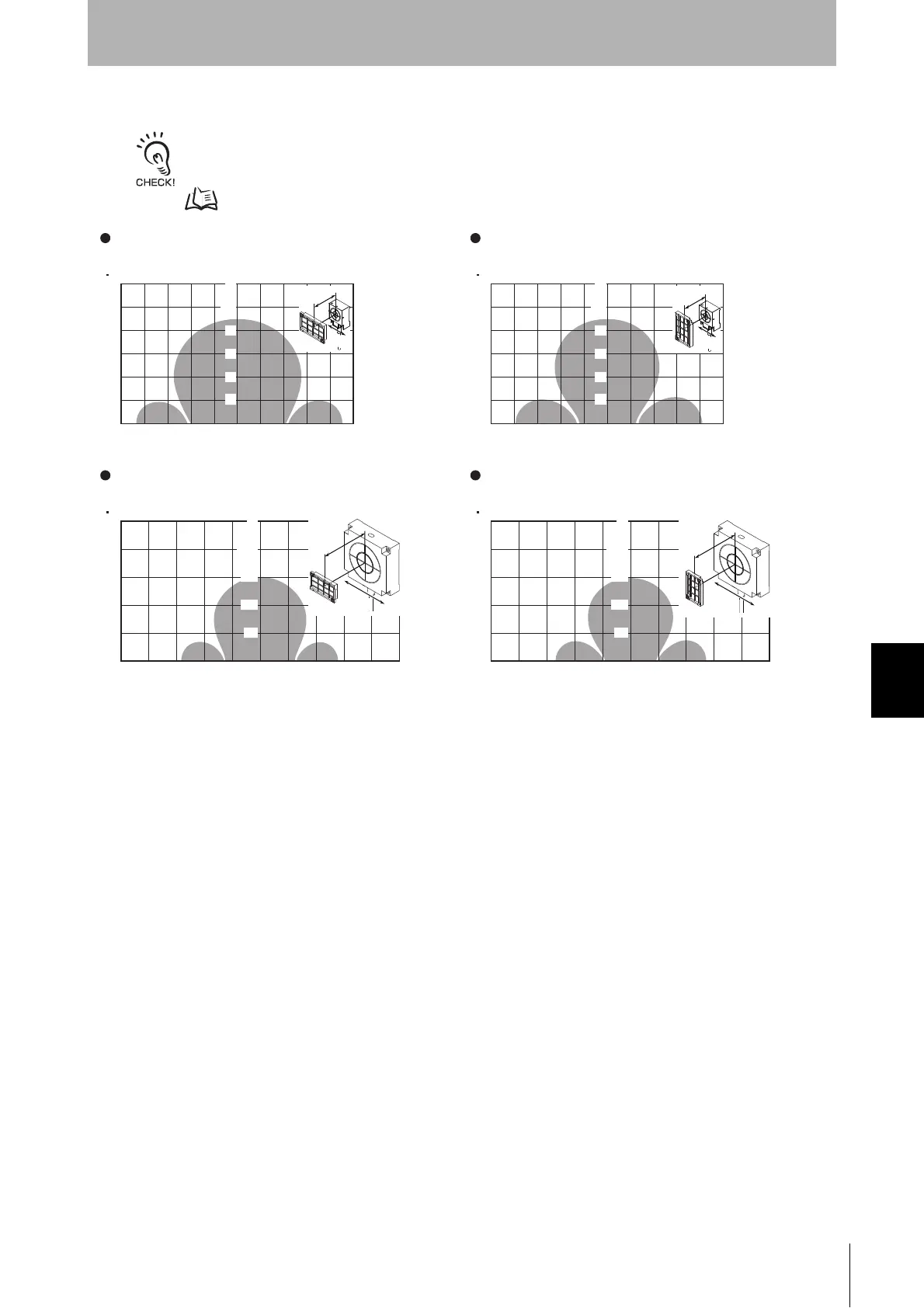

The interrogation zone given here are for reference only. For information on communications ranges, refer to
Communications Range Specifications in this section. The interrogation zone depends on the type of RF Tags used, the
ambient temperature, surrounding metals, and noise. Be sure to check carefully when installing the system.
p.114
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
Read/Write Read/Write
V680-HS63䋨with Metal on Back Surface䋩
and V680S-D2KF68
(Vertical-facing RF Tag)
V680-HS63䋨with Metal on Back Surface䋩
and V680S-D2KF68
(Horizontal-facing RF Tag)
50
100
150
200
Y
-250 -200 -150 -100 -50 0 50 100 150 200 X
50
100
150
200
Y
-250 -200 -150 -100 -50 0 50 100 150 200 X
Read/Write
V680-HS65䋨with Metal on Back Surface䋩
and V680S-D2KF68
(Horizontal-facing RF Tag)
Read/Write
V680-HS65䋨with Metal on Back Surface䋩
and V680S-D2KF68
(Vertical-facing RF Tag)
Y
X
Y
X
Y
X
Y
X
