RFID System
User's Manual
SECTION 1
Part Names and Functions
SECTION 1
Product Overview

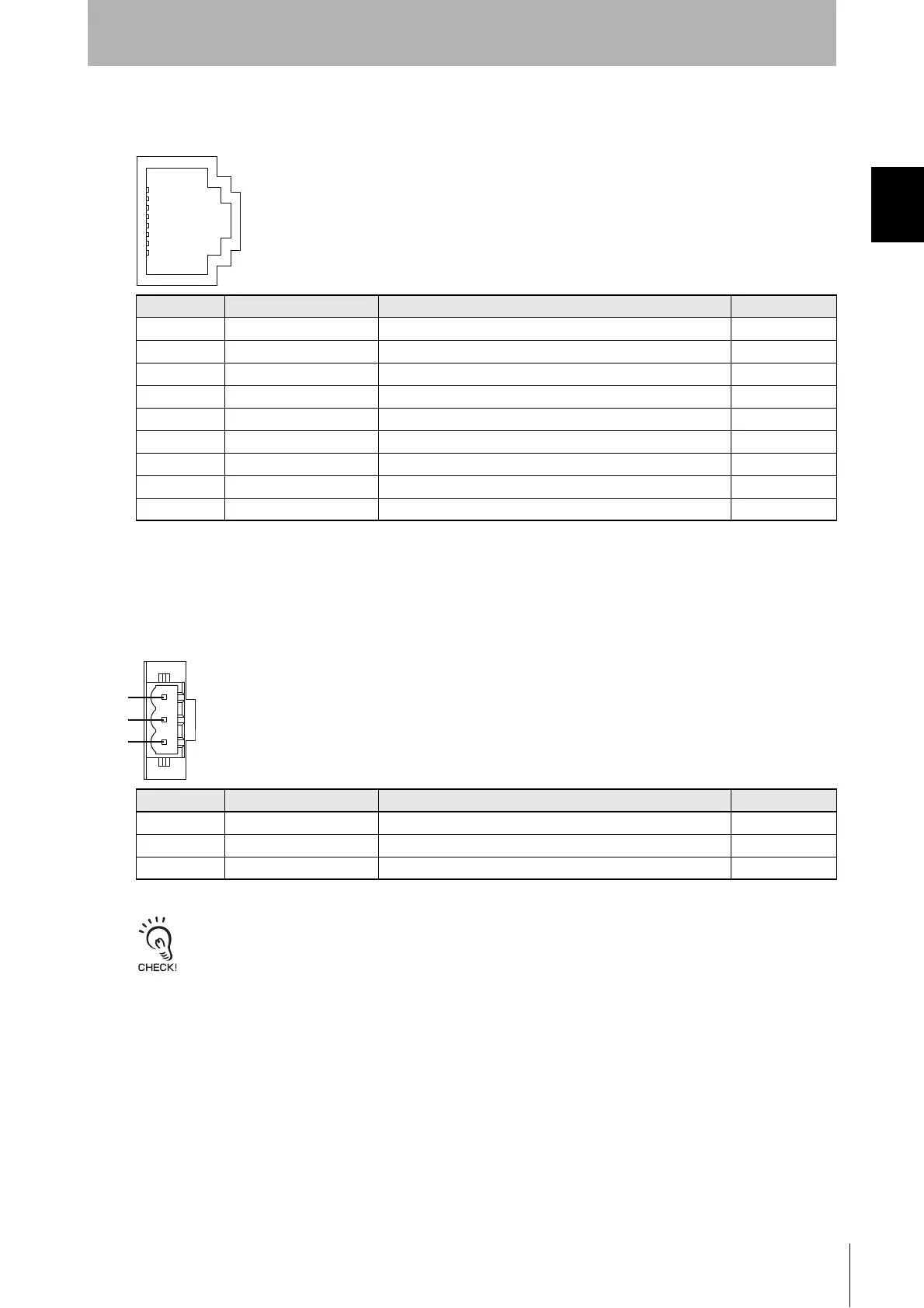

■ FL Remote Connector Port
This connector connects the FL Remote to the Master Unit.
■ Power Supply Terminals
The power supply terminals supply 24-VDC power using the included connector.
Included connector model: FKC2.5/3-ST-5.08-RF (Phoenix Contact)
Use the recommended OMRON Power Supply, the S8VS-03024.
Pin No. Name Description I/O
1 TX_D1+ Transmitted data + Output
2TX_D1 Transmitted data Output
3 RX_D2+ Received data + Input
4--- ---
5--- ---
6RX_D2 Received data Input
7--- ---
8--- ---
Hood GR Internal functional ground ---
Pin No. Name Description I/O
1 24V 24V ---
2 GND GND ---
3 GR Functional ground (Ground to 100 or less.) ---
