 Dimensions

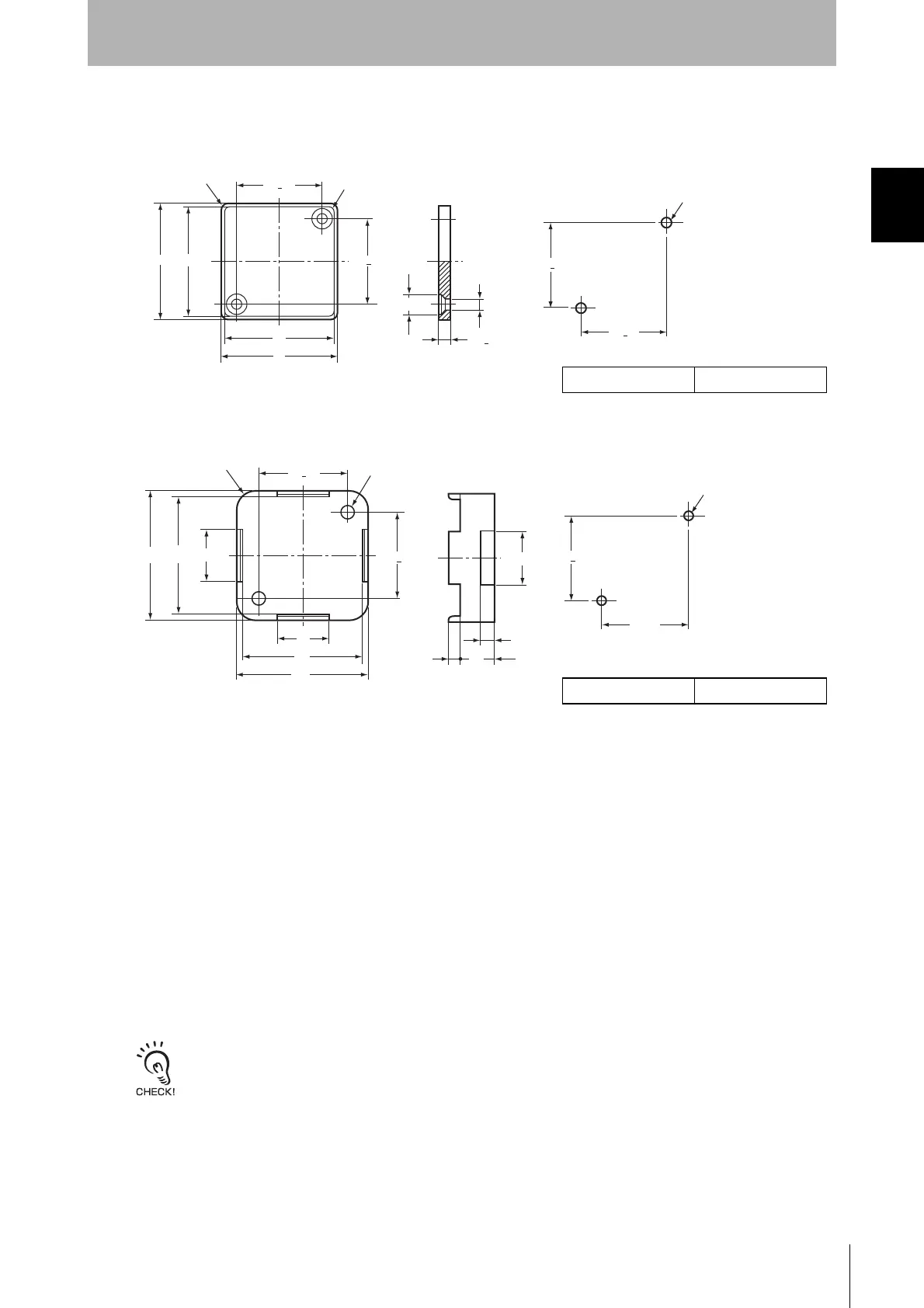

V680-D1KP66T/-D1KP66MT
V600-A86 Attachment
 RF Tag Heat Resistance
• Storing RF Tags under high temperatures or under heat cycles will adversely affect the performance
of the internal parts and the service life of the RF Tags.
An LTPD of 10% was used for evaluation of RF Tags that reached the end of their service life after
testing under the following test conditions.
LTPD: Lot Tolerance Percent Defective
The lower limit of the malfunction rate for lots to be considered unacceptable during reliability testing.
Heat cycle: 1,000 cycles of 30 minutes each between -10 and 150°C. No failures
occurred in 22 samples.
200 cycles of 30 minutes each between -10 and 180°C. No failures
occurred in 22 samples.
High-temperature storage: 1,000 hours at 150°C. No failures occurred in 22 samples.
200 hours at 180°C. No failures occurred in 22 samples.
25+0.2
25+0.2
25+0.2
25+0.2
3.5+0.1
Two, M3 holes
Four, 3-mm corners
Four, 4-mm corners
32
32
34
34
Two, 6 dia.
Two, 3.5 dia.
Mounting Hole Dimensions
Case material PPS resin
(Unit: mm)
25+0.2
25+0.2
25+0.2
25+0.2
Two, M3 holes
Two, 4 dia. holes
Four, 5.5-mm corners
16
4
10
3.5
37
37
34
34
15
15
Case material PPS resin
(Unit: mm)
