Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview

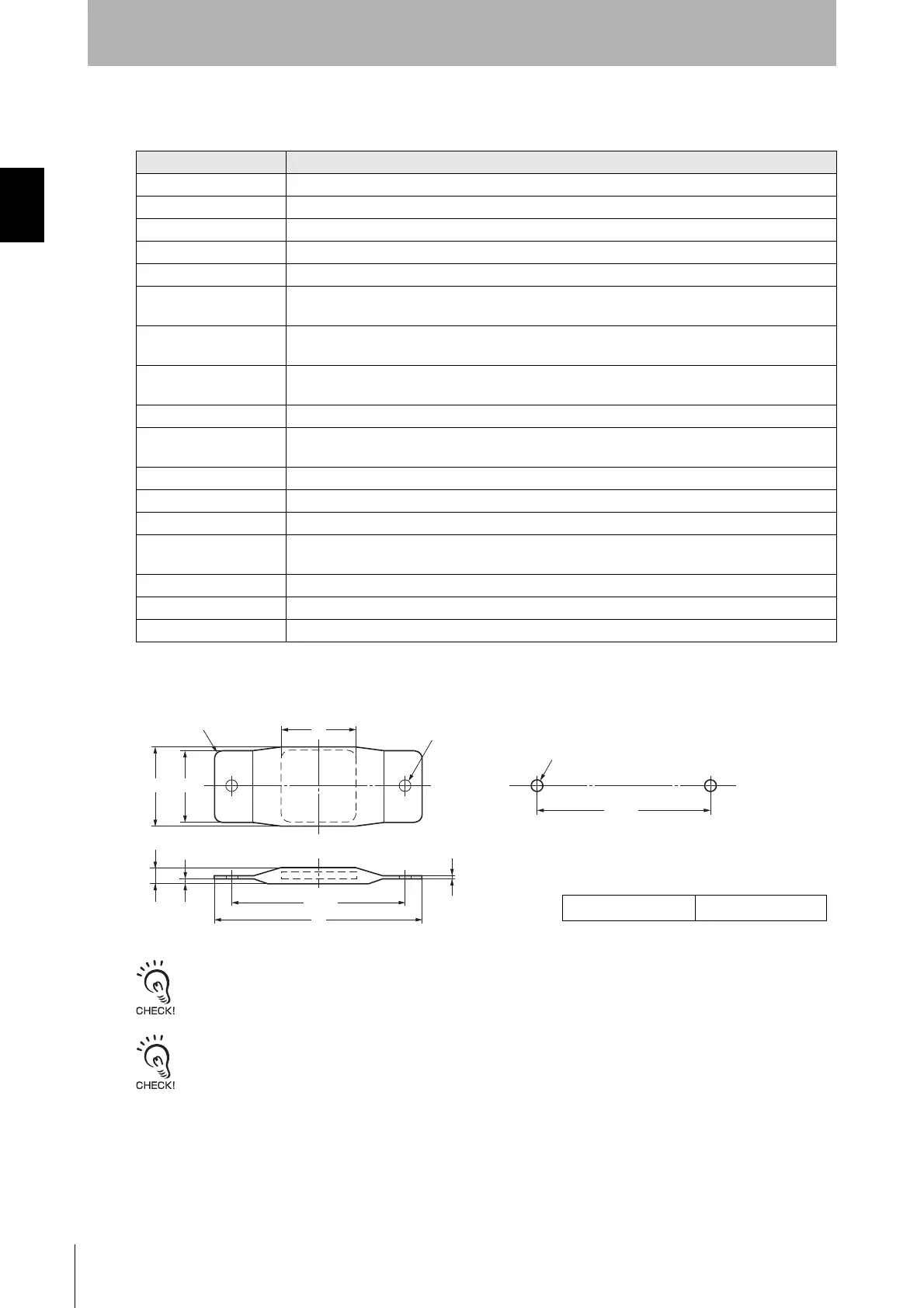

 V680-D1KP66T-SP
 General Specifications
 Dimensions
The marked surface is the communications surface. When mounting the RF Tag, face the marked surface toward the
Reader/Writer.
You cannot use FIFO Trigger communications.
Item Model Specification
Compliance standards ISO/IEC 18000-3 (15693)
Memory capacity 1,000 bytes
Memory type EEPROM
Data retention 10 years (85°C or less)
Write endurance 100,000 writes for each block (25°C)
Ambient operating
temperature
-25 to 70°C (with no icing)
Ambient operating
humidity
35% to 95% (with no condensation)
Ambient storage
temperature
-40 to 110°C (with no icing)
Ambient storage humidity 35% to 95% (with no condensation)
Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s
2
, 10 sweeps each in 3 directions
for 15 minutes each
Shock resistance No abnormality after application of 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 95 × 36.5 × 6.5 mm (W × H × D, excluding protruding parts)
Degree of protection IP67
Materials Exterior: PFA fluororesin
RF Tag filling: PPS resin
Weight Approx. 20 g
Installation method Two M5 screws
Metal countermeasures None
Two, 5.5 dia. mounting holes
Four, 6-mm corners
1.3
6.5 2.5 max.
Mounting Hole Dimensions
Two, M5 holes
80±0.2
80±0.2
34
95
3436.5
(Unit: mm)
Case material PFA resin
