Section 4 APPENDIX
ZFV
User’s Manual
Section 4
Specifications and External Dimensions

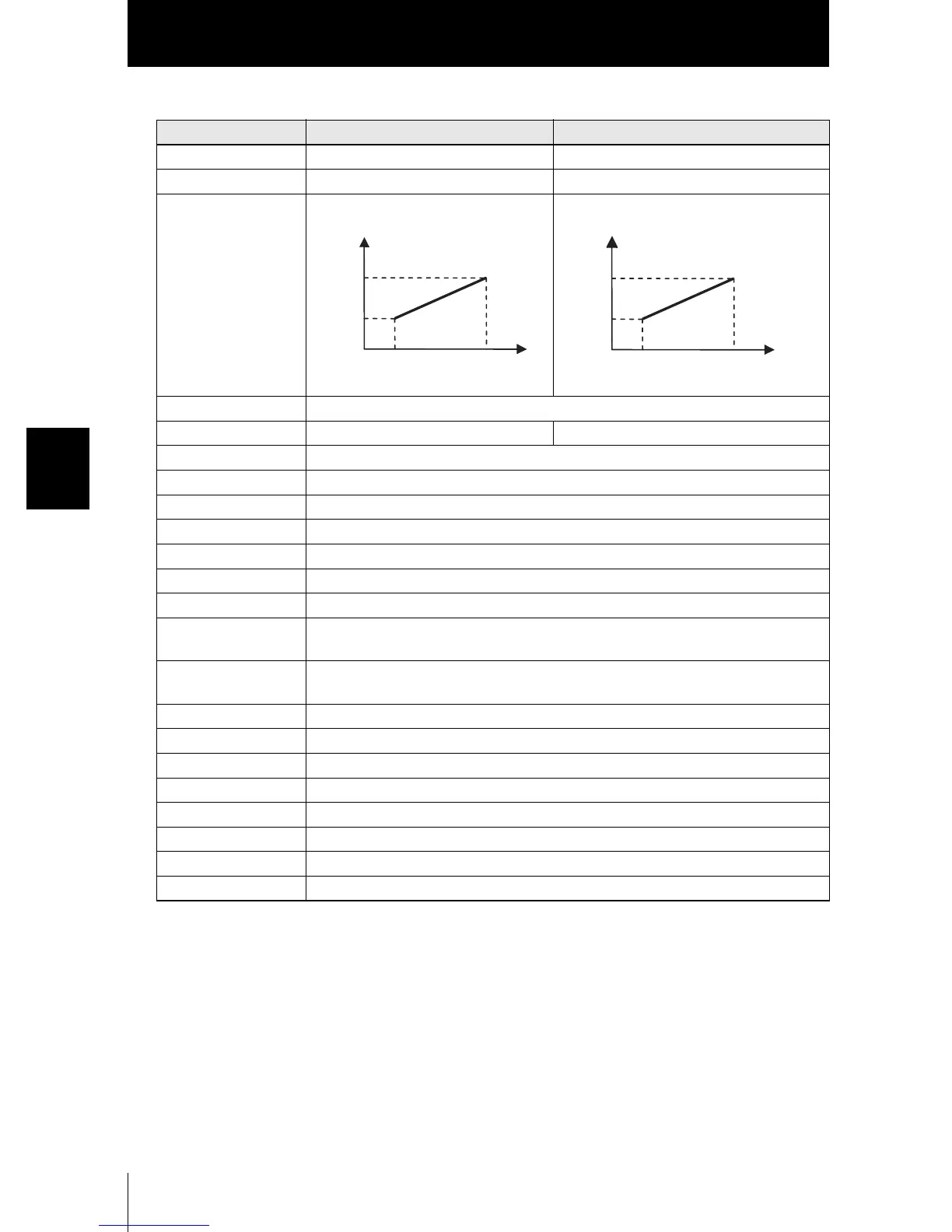

Item ZFV-SR10 (Narrow View) ZFV-SR50 (Wide View)
Setting distance (L) 34 to 49 mm 38 to 194 mm
Detection range (H×V) 5 × 4.6 mm to 9 × 8.3 mm 10 × 9.2 mm to 50 × 46 mm
Relation between set-
ting distance and
detection range
Guide light Provided (center, sensing area)
Built-in lens Focus: f15.65 Focus: f13.47
Object lighting method Pulse lighting
Object light source Eight red LEDs
Sensing element 1/3-inch CCD, partial scan
Shutter Electronic shutter, shutter time: 1/1,000 to 1/4,000
Power supply voltage 15 VDC (Supplied from Amplifier Unit.)
Current consumption Approx. 200 mA
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance
(destruction)
10 to 150 Hz, 0.35-mm single amplitude, 10 times each in X, Y, and Z directions for 8
min
Shock resistance
(destruction)
150 m/s
2
, three times each in six directions (up/down, left/right, forward/backward)
Ambient temperature Operating: 0 to 40 °C, Storage: -20 to 65°C (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere Must be free of corrosive gas.
Connection method Prewired, Standard cable length: 2 m
Degree of protection IEC60529, IP65
Materials Case: ABS, Mounting bracket: PBT
Weight Approx. 200 g (including mounting bracket and cord)
Accessories Mounting bracket (1), Ferrite core (1), Instruction sheet
49mm
34mm
5mm 9mm
Setting distance
Detection range (H)
(L)
10mm
194mm
38mm
50mm
Setting distance
Detection range (H)
(L)
