Omtech USB570z User Manual

8

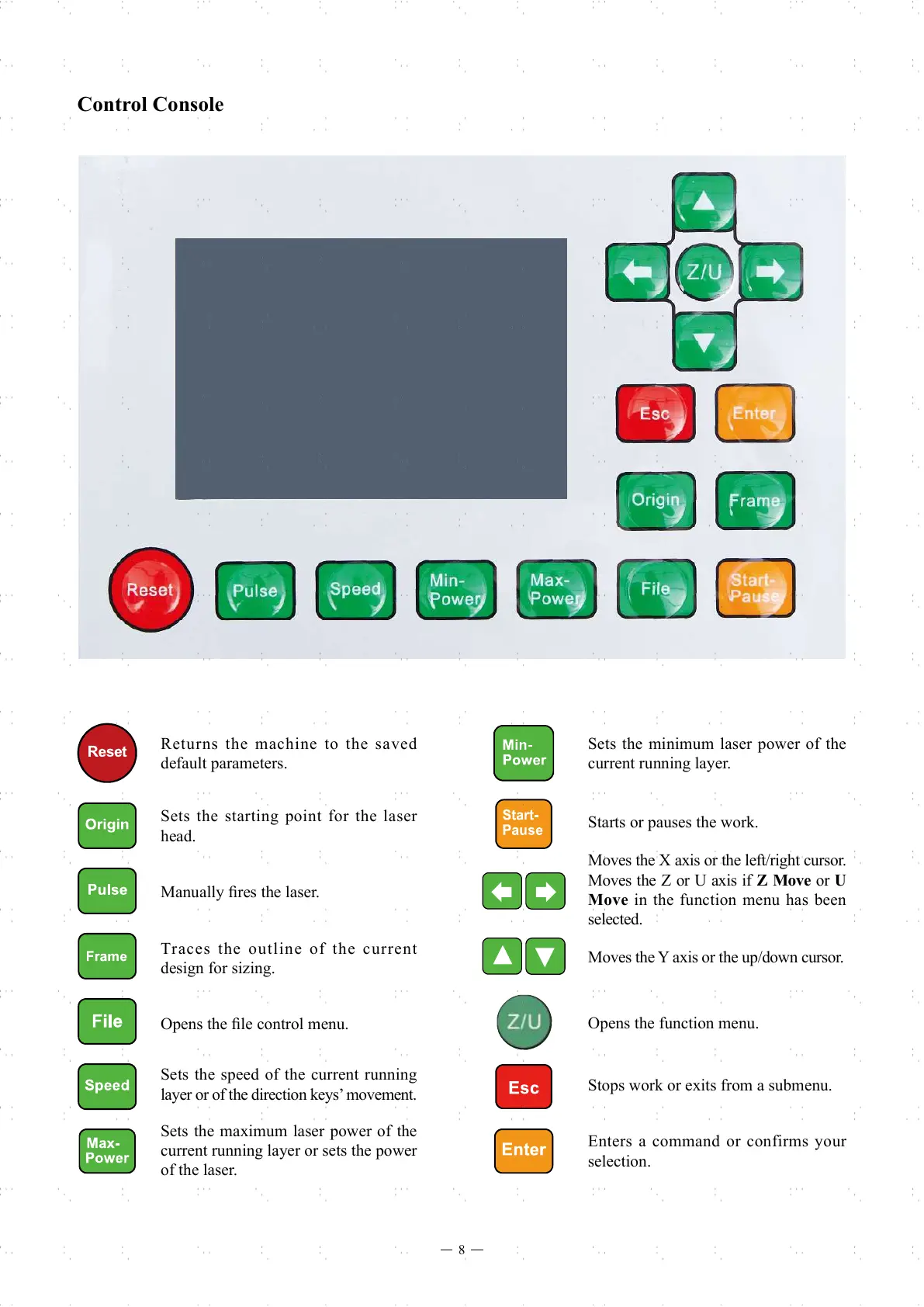

Control Console
Returns the machine to the saved
default parameters.
Sets the starting point for the laser
head.
Manually fi res the laser.
Traces the outline of the current
design for sizing.
Opens the fi le control menu.
Sets the speed of the current running
layer or of the direction keys’ movement.
Sets the maximum laser power of the
current running layer or sets the power
of the laser.
Sets the minimum laser power of the
current running layer.
Starts or pauses the work.
Moves the X axis or the left/right cursor.
Moves the Z or U axis if Z Move or U
Move in the function menu has been
selected.
Moves the Y axis or the up/down cursor.
Opens the function menu.
Stops work or exits from a submenu.
Enters a command or confirms your
selection.
