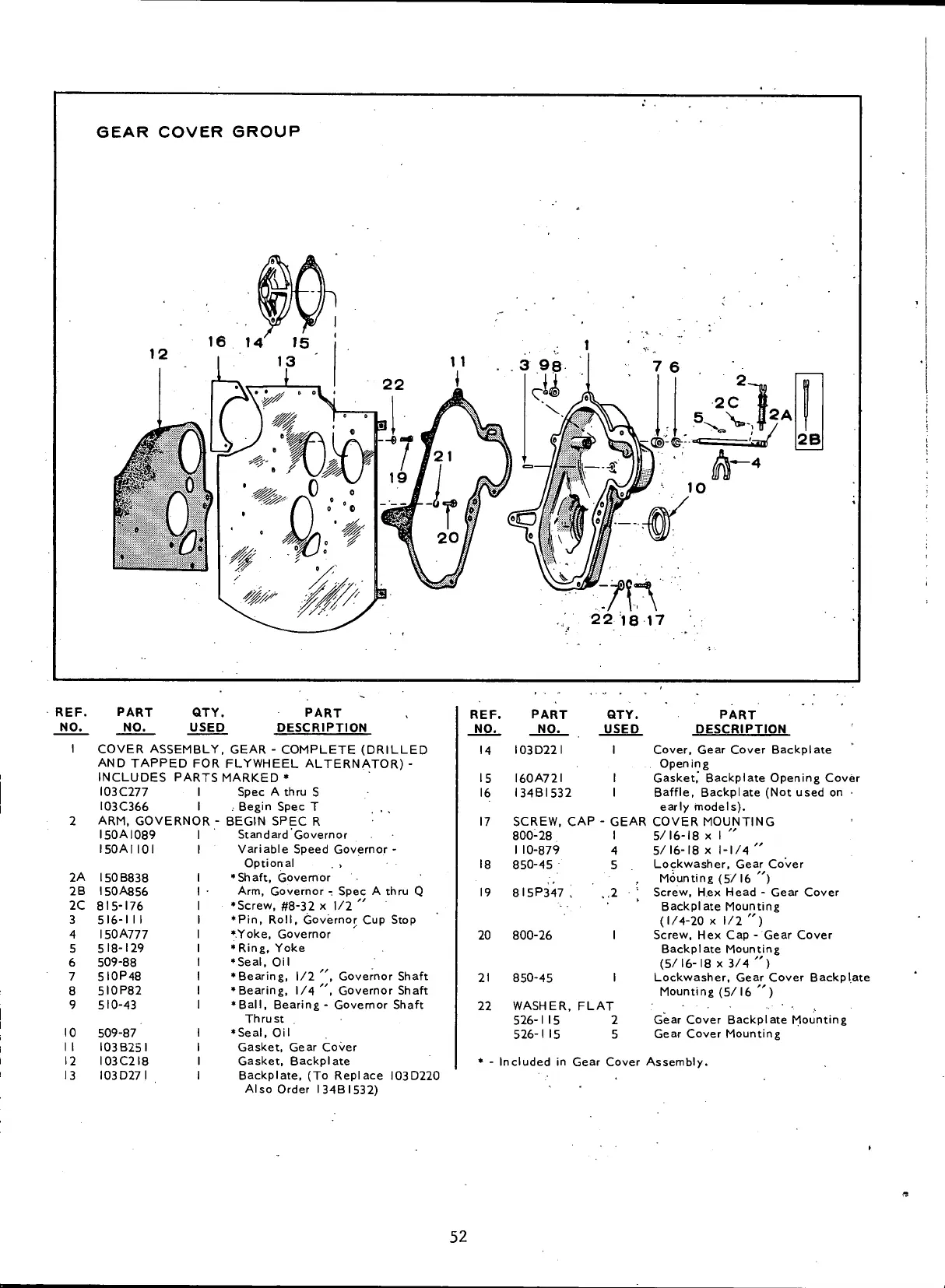

GEAR COVER GROUP
22 18 17
REF.
NO.
3
4
5
6
7
8
9
10
I I
12
13
PART
NO.
QTY.
USED
PART
DESCRIPTION
COVER ASSEMBLY
AND TAPPED FOR
INCLUDES PARTS
I03C277 I
I03C366 I
ARM. GOVERNOR -
I50AI089 I
I50AII0I I
, GEAR - COMPLETE (DRILLED
FLYWHEEL ALTERNATOR)-
MARKED *
Spec A thru S
• Begin Spec T
BEGIN SPEC R
Standard Governor
Variable Speed Governor -
Optional . >
2A I50B838 I 'Shaft, Governor
2B I50A856 I • Arm, Governor -. Spec A thru Q
2C 815-176 I 'Screw, #8-32 x 1/2 "
516-111 I *Pin, Roll, Governor Cup Stop
I50A777 I *Yoke, Governor
518-129 I 'Ring, Yoke
509- 88 I * Seal, Oil
5I0P48 I 'Bearing, 1/2 ", Governor Shaft
5I0P82 I 'Bearing, 1/4 ", Governor Shaft
510- 43 I 'Ball, Bearing - Governor Shaft
Thrust
509-87 I 'Seal, Oil
I03B25I I Gasket, Gear Cover
I03C2I8 I Gasket, Backplate
I03D27I I Backplate. (To Replace I03D220
Also Order I34BI532)
REF.
JiO.
15
16
18
19
PART
NO.
QTY.
USED
14 I03D22I
I60A72I
I34BI532
17 SCREW, CAP - GEAR
800-28
I 10-879
850-45
8I5P347 ^
20 800-26
21 850-45
I
22 WASHER, FLAT
526-115 2
526-115 5
PART
DESCRIPTION
Cover, Gear Cover Backplate
Opening
Gasket,' Backplate Opening Cover
Baffle, Backplate (Not used on •
early models).
COVER MOUNTING
5/16-18 x I "
5/16-18 x 1-1/4 "
Lockwasher, Gear Cover
Mounting (5/ 16 ")
Screw, Hex Head - Gear Cover
Backpl ate Mounting
(1/4-20 x 1/2 ")
Screw, Hex Cap - Gear Cover
Backplate Mounting
(5/16-18 x 3/4 ")
Lockwasher, Gear Cover Backplate
Mounting (5/ 16 " )
Gear Cover Backplate Mounting
Gear Cover Mounting
* - Included in Gear Cover Assembly.
52
