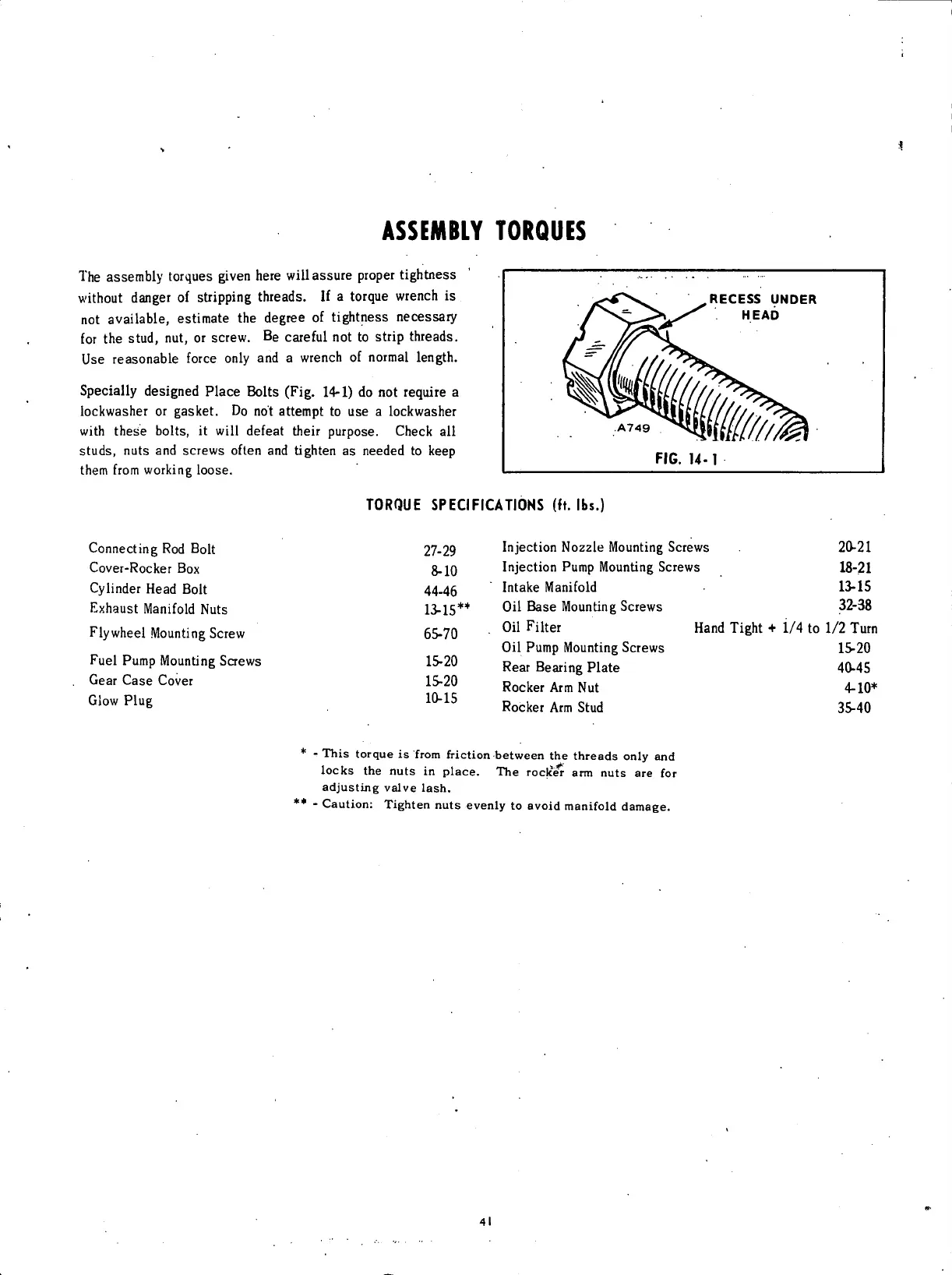

ASSEMBLY
TORQUES
The
assembly torques
given
here
will
assure
proper tightness
without
danger of
stripping
threads. If a torque wrench is
not
available, estimate the
degree
of tightness necessaiy
for
the stud, nut, or screw. Be
careful
not to
strip
threads.
Use reasonable force
only
and a wrench of
normal
length.
Specially
designed Place
Bolts
(Fig.
14-1) do not require a
lockwasher
or gasket. Do not attempt to use a lockwasher
with
these
bolts, it
will
defeat
their
purpose. Check all
studs, nuts and screws
often
and
tighten
as needed to keep
them
from
working
loose.
RECESS
UNDER
HEAD
FIG.
14-1
TORQUE
SPECIFICATIONS
(ft. Ibs.)
Connecting
Rod
Bolt
27-29
Cover-Rocker
Box
8-10
Cylinder
Head
Bolt
44-46
Exhaust
Manifold
Nuts
13-15
Flywheel
Mounting
Screw
65-70
Fuel
Pump
Mounting
Screws
15-20
Gear
Case
Cover
15-20
Glow
Plug
10-15
Injection
Nozzle
Mounting
Screws
Injection
Pump
Mounting
Screws
Intake
Manifold
Oil
Base
Mounting
Screws
Oil
Filter
Oil
Pump
Mounting
Screws
Rear
Bearing
Plate
Rocker
Arm
Nut
Rocker
Arm
Stud
20-21
18-21
13-15
32-38
Hand
Tight
+ 1/4 to 1/2
Turn
15-20
40-45
4-10*
35-40
*
-
This
torque is
from
friction
between the threads
only
and
locks
the nuts in place. The roclcer arm nuts are for
adjusting
valve lash.
**
- Caution:
Tighten
nuts evenly to
avoid
manifold
damage.
41
