Onan DJA Series User Manual

BREATHER HOSE
HOSE CLAM
CAP AND VALVE
CLAMP
BAFFLE
BREATHER TUBE —
CRANKCASE BREATHER
Beginning Spec R
Remove hose clamp, breather hose,
insulator clamp, insulator halves, and
breather cap clamp. Wash cap, valve
assembly, and baffle in suitable solvent
and reinstall.
FUEL FILTER
BODY
FILTER
SCREEN
GASKET
BOWL
AIR
CLEANER
(OPTIONAL)
KEEP OIL
AT THIS
LEVE
o e o o o e o «
OOOOOOO'
OOOOOOO*
O O O 0 O 0 0 <
BREATHER TUBE
CAP
FLAPPER
VALVE
ASSEMBLY
TUBE FROM
AIR
CLEANER
:VE:L
—^DILLgyiTI^J
OIL FILTER CHANGE
(See Schedule)
Place pan under old filter and
remove by turning counterclock-
wise. Clean filter mounting area.
Install new filter; oil filter gasket
and screw filter on clockwise
until gasket touches mounting
base, then tighten 1/2 turn.
BREATHER
TUBE BAFFLE
CRANKCASE BREATHER
Prior to Spec R
Remove breather cap. Remove valve from
cap. Wash valve in a suitable solvent.
Dry and install with perforated disc
toward engine. If faulty, install new
valve.
ALWAYS REPLACE CAP
TIGHUY.OR Oil LEAKAGE
MAY OCCUR.
CAP AND OIL LEVEL
INDICATOR
NEVER
OPERATE ENGINE
WITH OIL I
THIS I
AFTER WASHING ELEMENT DIP
IN ENGINE OIL AND SQUEEZE
AS DRY AS POSSIBLE.
AIR CLEANER
ELEMENT
AINER
CONNECTOR
(From fuel
transfer pump)
ELBOW
(To injection
pump)
DRAIN—PRIMARY
8
*
FILTER \
SECONDARY
FILTER
DRAIN
MODELS BEGINNING WITH SPEC S
Drain water periodically as required from both filters and
sediment bowl. Replace primary filter every 600 hours and
secondary filter every 3000 hours. When replacing filter,
tighten screw until gasket touches base, then tighten
screw 1 to 1-1/2 turns.

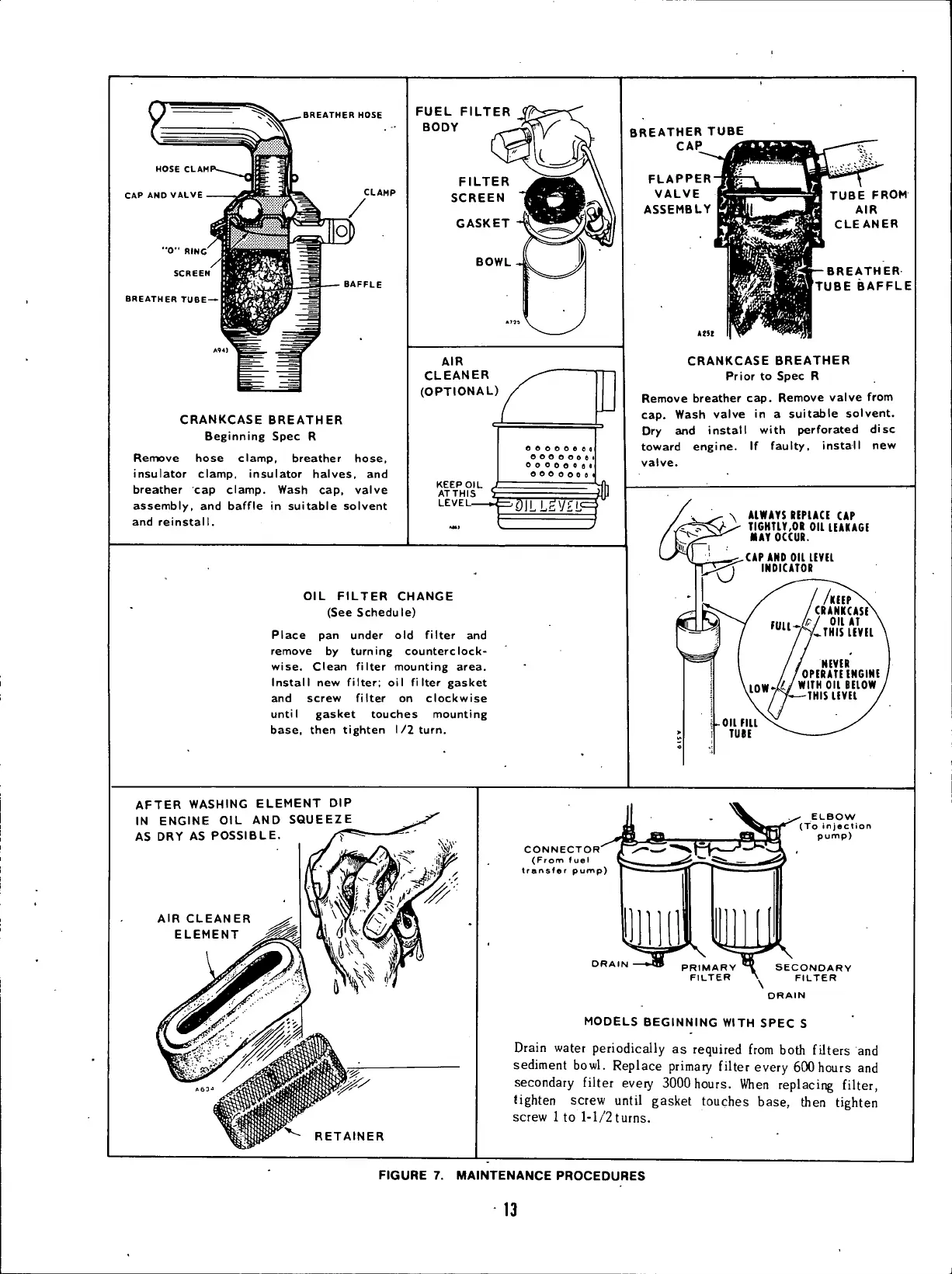

FIGURE 7. MAINTENANCE PROCEDURES
13
