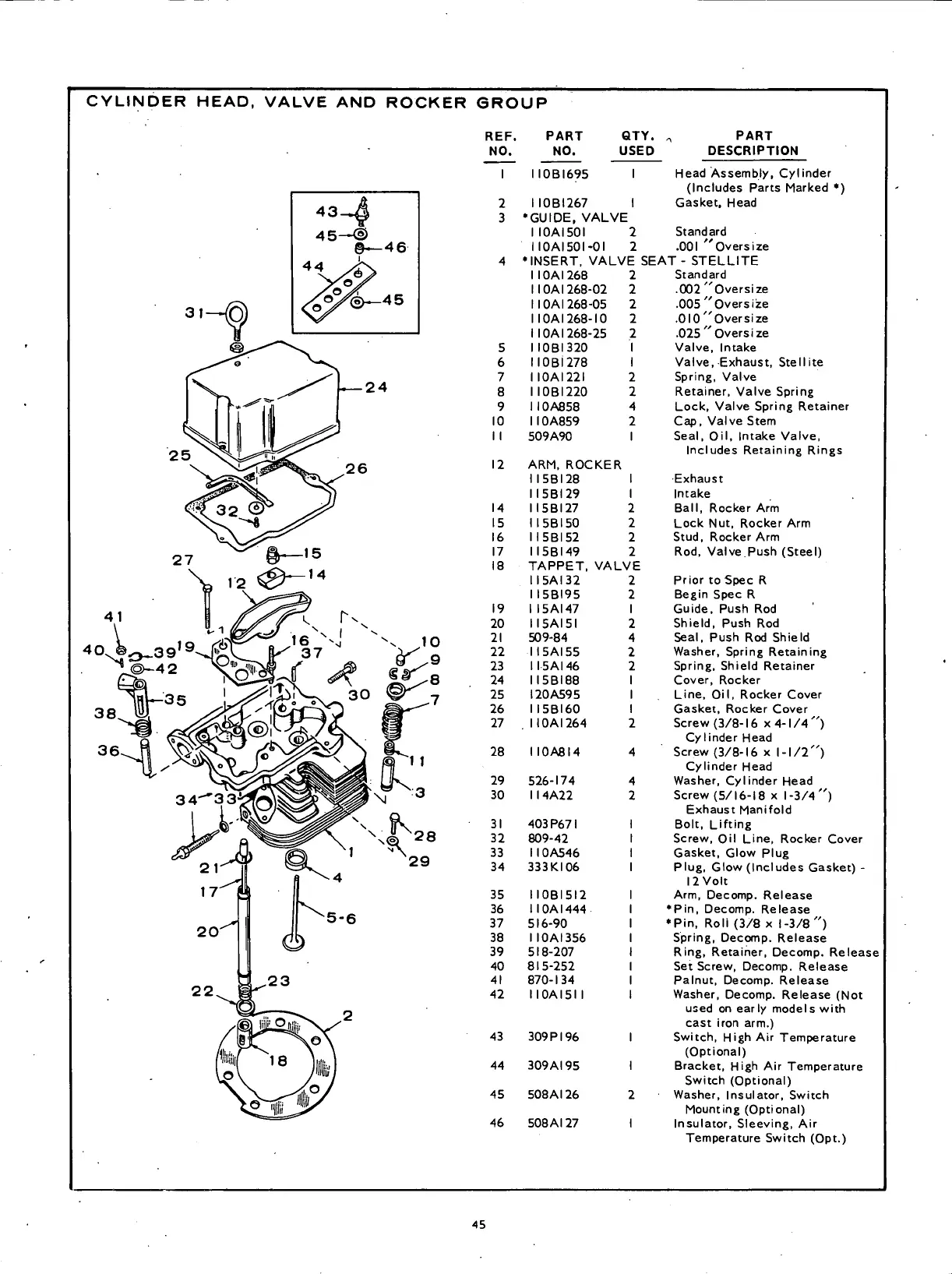

CYLINDER HEAD, VALVE AND ROCKER GROUP
41
REF.
PART
QTY. PART
NO.
NO.
USED
DESCRIPTION
1 1I0BI695
1
Head Assembly, Cylinder
(Includes Parts Marked *)
2
1 I0BI267 1
Gasket, Head
3
•GUIDE, VALVE
1 I0AI50I 2
Standard
1 I0AI50I-0I
2 .001 "Oversize
4
* INSERT, VALVE SEAT - STELLITE
1 IOAI 268
2 Standard
1 IOAI 268-02 2
.002 "Oversize
1 IOAI 268-05
2
.005 "Oversize
1 IOAI 268-10 2
.010 "Over size
1 IOA 1268-25
2
.025 "Oversize
5 1 I0BI320
1 Valve, Intake
6 11061278
1
Valve, Exhaust, Stellite
7 1 I0AI22I 2
Spring, Valve
8 1 1 OBI 220
2
Retainer, Valve Spring
9
1 I0A858
4
Lock, Valve Spring Retainer
10 1 I0A859 2
Cap, Valve Stem
1 1
509A90 1
Seal, Oil, Intake Valve,
Includes Retaining Rings
12 ARM, ROCKER
1 1 SBl 28
1 Exhaust
1 I5BI29
1 Intake
14 1 I5BI27 2
6all, Rocker Arm
15 1 1 56150 2
Lock Nut, Rocker Arm
16 1156152 2
Stud, Rocker Arm
17
1156149
2
Rod, Valve.Push (Steel)
18
TAPPET, VALVE
1 ISAI32 2
Prior to Spec R
1 I5BI95
2
6egin Spec R
19 1 ISAI 47 1 Guide, Push Rod
20 1 I5AI5I 2
Shield, Push Rod
21 509-84 4
Seal, Push Rod Shield
22
1 ISAI 55 2
Washer, Spring Retaining
23 1 I5AI46 2
Spring, Shield Retainer
24
1 156188
1 Cover, Rocker
25 I20A595 1
Line, Oil, Rocker Cover
26 1 156160 1
Gasket, Rocker Cover
27 . 1 IOAI 264 2
Screw (3/8-16 X4-I/4")
Cylinder Head
28 1 I0A8I4 4
Screw (3/8-16 x 1-1/2")
Cylinder Head
29 526-174
4
Washer, Cylinder Head
30
1 14A22 2 Screw (5/16-18 x 1-3/4")
Exhaust Manifold
31
403P67I 1
8olt, Lifting
32
809-42
1 Screw, Oil Line, Rocker Cover
33
1 I0A546
1
Gasket, Glow Plug
34 333KI06 1
Plug, Glow (Includes Gasket) -
12 Volt
35 1 1061512
1
Arm, Decomp. Release
36
1IOAI444 1 *Pin, Decomp. Release
37
516-90 1 •Pin, Roll (3/8 x 1-3/8")
38
1 I0AI356 1
Spring, Decomp. Release
39 518-207 1 Ring, Retainer, Decomp. Releas
40 815-252 1 Set Screw, Decomp. Release
41 870-134
1
Palnut, Decomp. Release
42
1I0AI5I 1
1
Washer, Decomp. Release (Not
used on early models with
cast iron arm.)
43
309 PI 96
1
Switch, High Air Temperature
(Optional)
44 309AI95 1
8racket, High Air Temperature
Switch (Optional)
45 508AI26 2 Washer, Insulator, Switch
Mounting (Optional)
46 508A127 1 Insulator, Sleeving, Air
Temperature Switch (Opt.)
