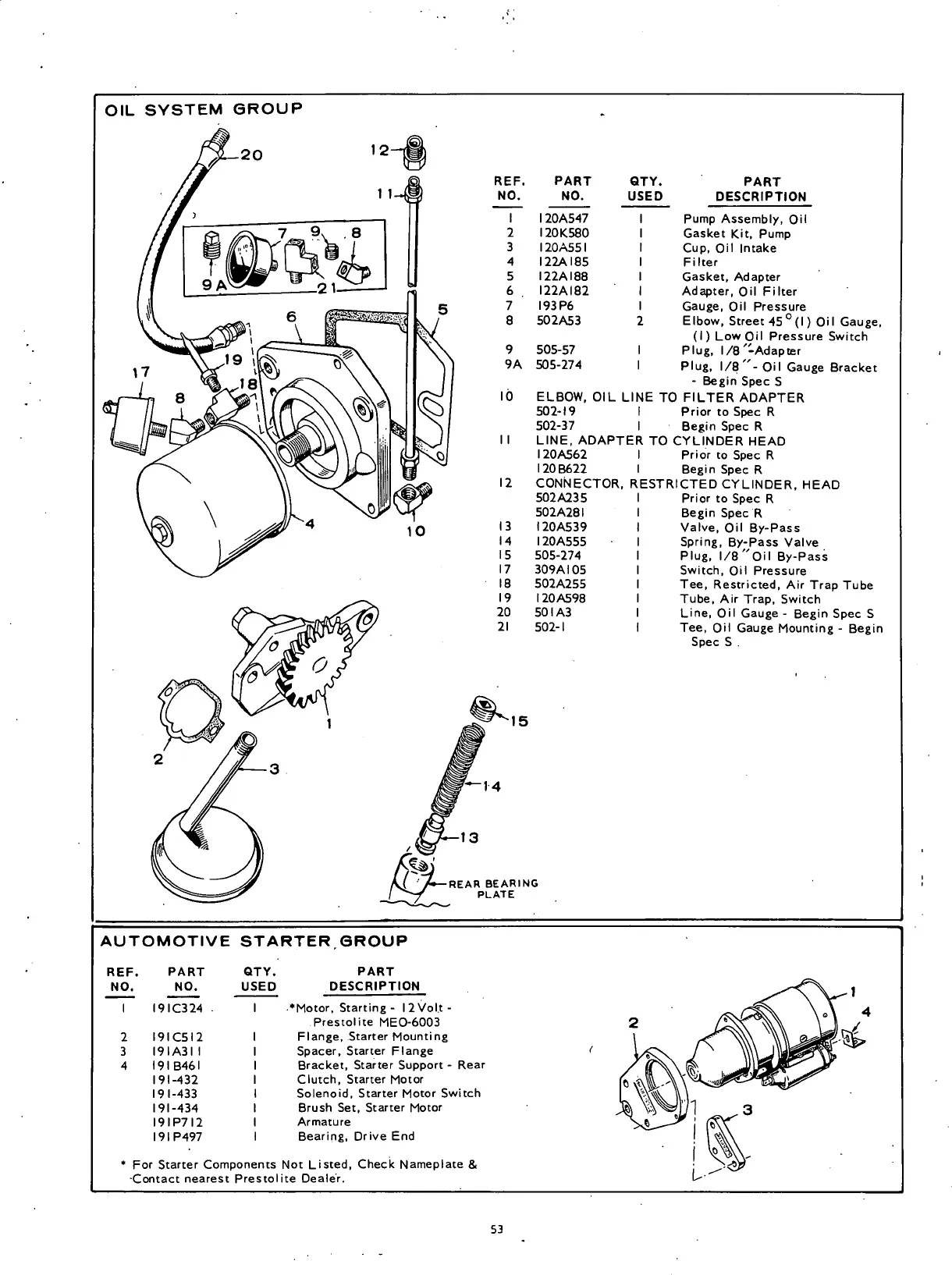

OIL SYSTEM GROUP
REF. PART QTY.
PART
NO.
NO.
USED
DESCRIPTION
1 120A547 1
Pump Assembly, Oil
2 I20K580 1
Gasket Kit, Pump
3
I20A55I
1
Cup, Oil Intake
4
I22AI85
1 Filter
5
I22AI88
1
Gasket, Adapter
6
I22AI82 1
Adapter, Oil Filter
7 I93P6
1
Gauge, Oil Pressure
8 502A53
2
Elbow, Street 45
0
(l) Oil Gauge
(1) LowOil Pressure Switch
9
505-57
1
Plug, 1/8'-Adapter
9A
505-274
1
Plug, 1/8"-Oil Gauge Bracket
- Begin Spec S
10
ELBOW, OIL LINE TO FILTER ADAPTER
502-19
1 Prior to Spec R
502-37
1
Begin Spec R
11
12
13
14
15
17
18
19
20
21
LINE, ADAPTER TO CYLINDER HEAD
I20A562 I Prior to Spec R
I20B622 I Begin Spec R
CONNECTOR, RESTRICTED CYLINDER, HEAD
502A235
502A28I
I20A539
I20A555
505-274
309A105
502A255
I20A598
501 A3
502-1
I Prior to Spec R
I Begin Spec R
I Valve, Oil By-Pass
I Spring, By-Pass Valve
I Plug, 1/8 "Oil By-Pass
I Switch, Oil Pressure
I Tee, Restricted, Air Trap Tube
I Tube, Air Trap, Switch
I Line, Oil Gauge - Begin Spec S
I Tee, Oil Gauge Mounting - Begin
Spec S .
REAR BEARING
PLATE
AUTOMOTIVE STARTER GROUP
REF.
NO.
PART
NO.
I9IC324
I9IC5I2
I9IA3I I
I9IB46I
191-432
191-433
191-434
I9IP7I2
I9IP497
QTY.
USED
PART
DESCRIPTION
•Motor, Startmg - l2Vol.t-
Prestolite MEO-6003
Flange, Starter Mounting
Spacer, Starter Flange
Bracket, Starter Support - Rear
Clutch, Starter Motor
Solenoid, Starter Motor Switch
Brush Set, Starter Motor
Armature
Bearing, Drive End
• For Starter Components Not Listed, Check Nameplate &
-Contact nearest Prestolite Dealer.
