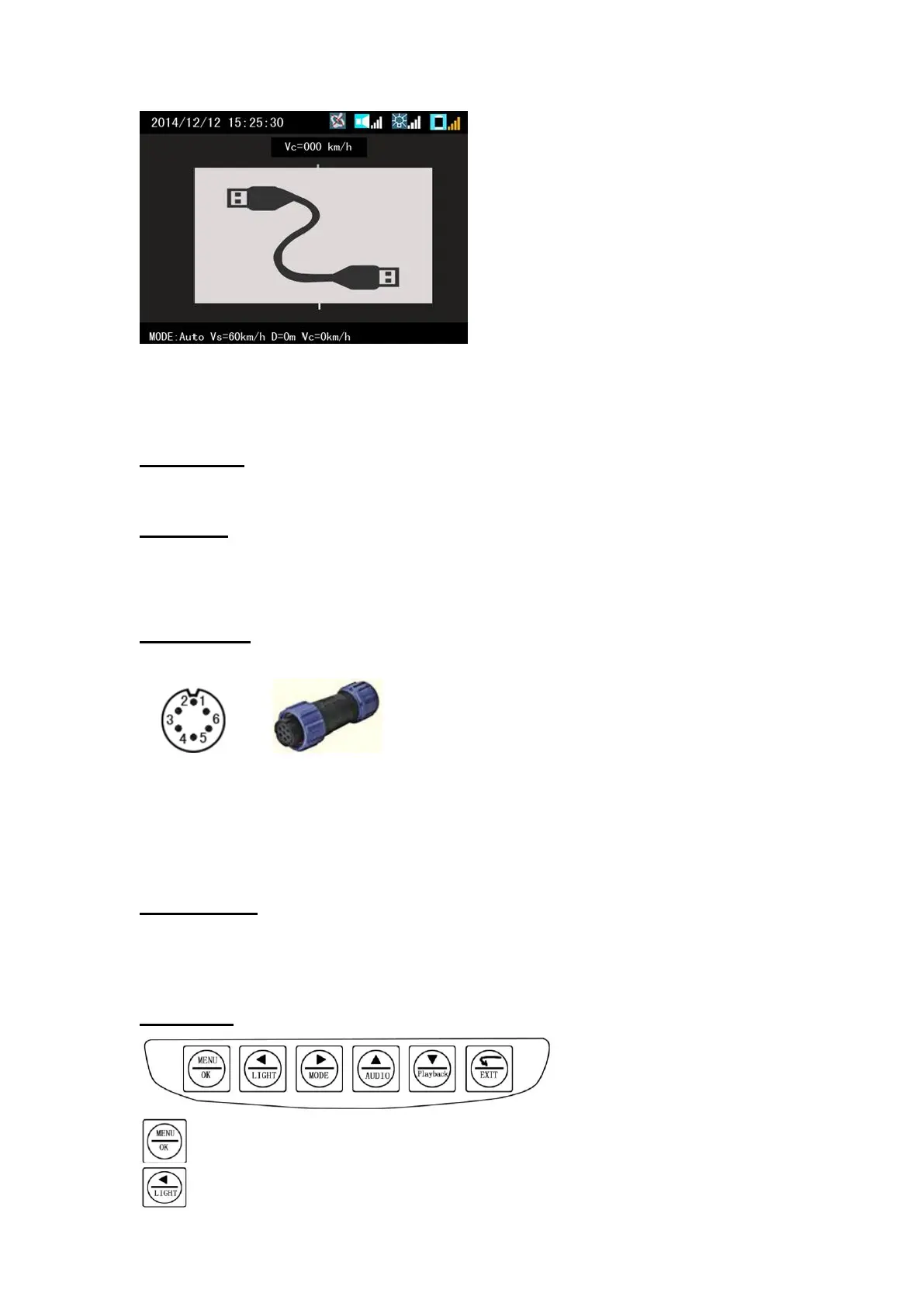

When connecting USB cable to the computer and the device is power on, use my computer or Microsoft windows
file explorer to find SD card. When operating files, files are encrypted and need to be via the software that
accompanies the product to view images.
When not operating files, the device will automatically power off according to the time set normally.
Real-time Clock
The device has a built-in clock that is Real Time Clock (RTC), whose accuracy is 20 ppm.
The working temperature is -30°C + 60°C(-22°F + 140°F), with ±10 minutes every year.
GPS Receiver
The device has a built-in Global Positioning System module, which can receive 12 satellites at the same time
and quickly track, locate, recapture and process data. It can detect these signals: longitude, latitude and altitude.
The GPS is used for auto settings and system time updating; When GPS is on, the device will consume more
battery. When GPS is on and successfully gets location, the icon will be shown on top of screen.
UART Serial Port
The serial port is the aviation socket at side of the device. Use this port to connect to external devices. Below
is the wiring connection image.
Pin 1：TX / Send ------------------------------------------------------------------Red
Pin 2：RX / Receive --------------------------------------------------------------Yellow
Pin 3：IO / Bus --------------------------------------------------------------------Green
Pin 4：7.4V external power supply--------------------------------------------Blue
Pin 5：GND wire----------------------------------------------------------------- -Black
Pin 6：GND wire-------------------------------------------------------------------White
LCD Touch Screen
The device adopts a 480*272 (4.3”) resistance-type color touch screen. Use buttons at the bottom of panel
or touch screen to set various parameters and operate the device.
Note: when using touch screen to operate, do not use too much force, otherwise it will damage touch
screen.
Section #3 - System and Display Info
Panel Buttons
Adjust backlit brightness. There will be brightness level shown at top of the display
Enter menu and confirm settings
To Next Page
