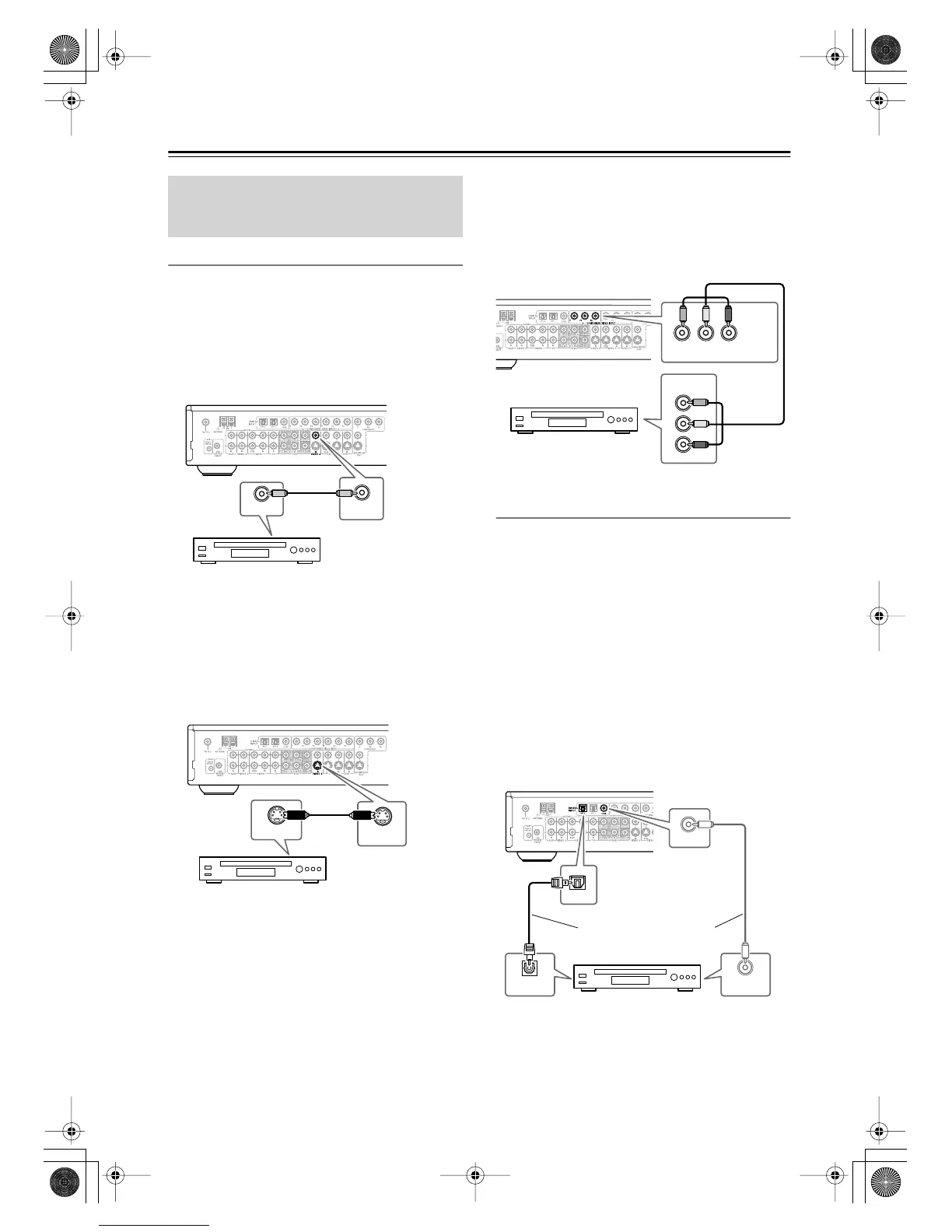

Connecting AV Components —Continued
Video Connections
You only need to use one of the following video connec-
tion methods.
■ Using Composite Video
Use a composite video cable to connect the TX-LR552’s
V VIDEO 2 IN to the composite video output on your
video component, as shown.
•Your TV must also be connected via composite video.
■ Using S-Video
Use an S-Video cable to connect the TX-LR552’s
S VIDEO 2 IN to the S-Video output on your video com-
ponent, as shown.
•Your TV must also be connected via S-Video.
■ Using Component Video
Use a component video cable to connect the
TX-LR552’s COMPONENT VIDEO INPUT 2 to the
component video output on your video component, as
shown.
•Your TV must also be connected via component video.
Audio Connections
Notes:
•To connect an LD player with an AC-3RF output,
you’ll need a commercially available demodulator.
■ Using a Coaxial or Optical Connection
• Use an optical digital audio cable to connect the
TX-LR552’s OPT 2 DIGITAL INPUT to the optical
output on your video component, as shown.
OR
• Use a coaxial digital audio cable to connect the
TX-LR552’s COAX DIGITAL INPUT to the coaxial
output on your video component, as shown.
• Initially, the VIDEO 2 input source is not assigned to
any of the digital audio inputs. If you use a digital
input, you’ll need to change the VIDEO 2 input source
assignment (see page 29).
Connecting Other Video Sources—
Set-top Box (Satellite, Cable, Over-
the-Air), LD Player, etc.
VIDEO OUT
IN
VIDEO 2
Set-top box (satellite,
cable, over-the-air), LD
player, etc.
S VIDEO OUT
IN
VIDEO 2
Set-top box (satellite,
cable, over-the-air), LD
player, etc.
Y
P
B
PR
COMPONENT
VIDEO OUT
COMPONENT VIDEO INPUT
YP
B
P
R
2
Set-top box (satellite,
cable, over-the-air), LD
player, etc.
COAX
OPT2
DIGITAL OUT
OPTICAL
DIGITAL OUT
COAXIAL
Set-top box (satellite, cable,
over-the-air), LD player, etc.
Connect one or the other
