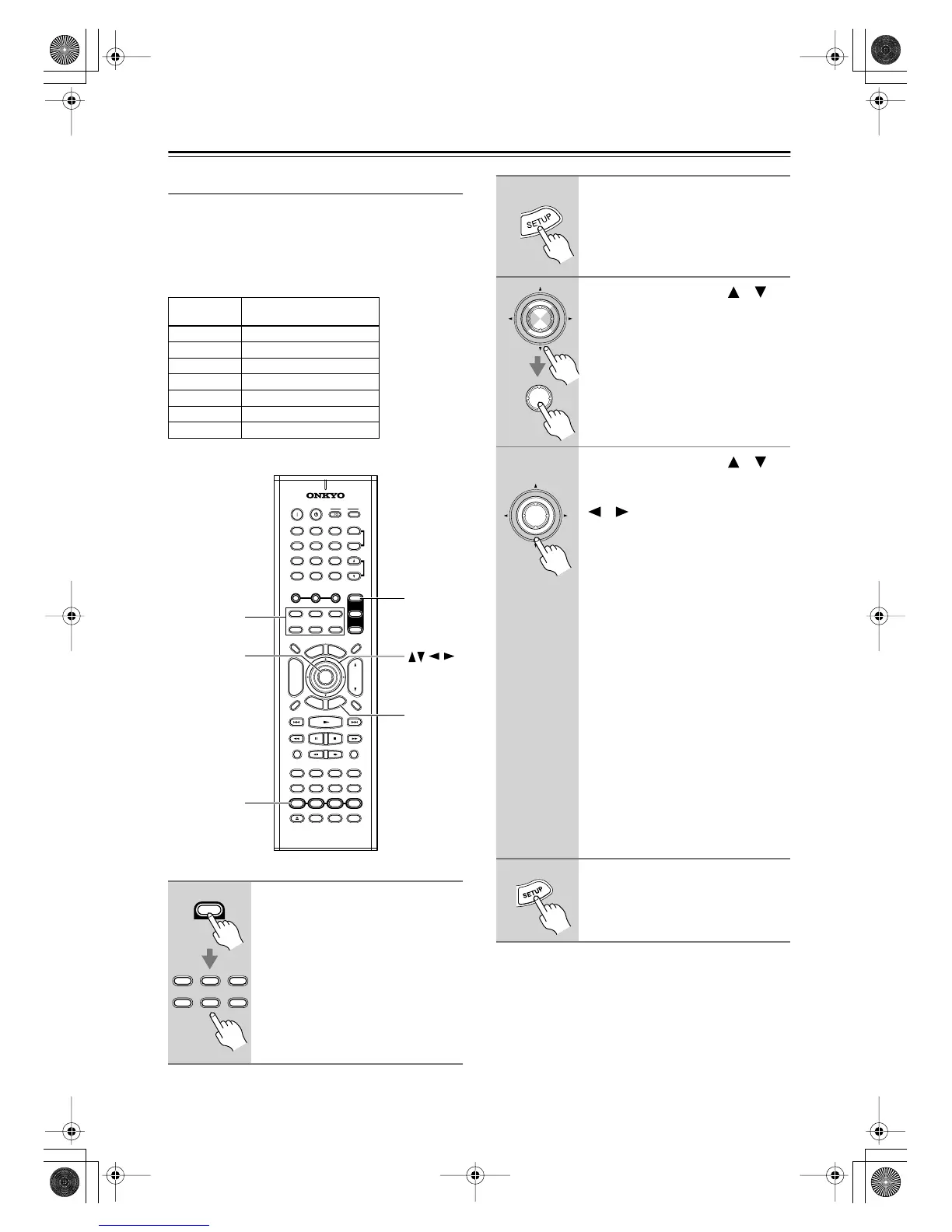

Component Video Input Setup
This section explains how to change the component
video input socket to input source assignments. You only
need to change them if you connect a video component
to a component video input other than the default assign-
ment listed in the following table. There are no other rea-
sons to change these assignments.
Notes:
When an input source that’s set to Last is selected, the
video source remains the same. For example, if you set
the VIDEO 1 input source to Last, then select the DVD
input source, then select the VIDEO 1 input source, you
can watch a DVD while listening to audio from the com-
ponent connected to the VIDEO 1 audio inputs.
Input source
Default component video
input assignment
DVD INPUT1
VIDEO 1 INPUT2
VIDEO 2 INPUT2
TV Last
AUX Last
FM Last
AM Last
1
Press the REMOTE MODE [AMP]
button followed by the [INPUT
SELECTOR] button for the input
source whose assignment you
want to change.
+
10 0
CLEAR
123
456
789
--/---
INPUT
I
+
-
ENTER
S
E
T
U
P
R
E
T
U
R
N
CINE FLTR
CH SEL TEST TONE
P MEM
TUN
+ TUN -
DSP
STEREO SURR DIRECT
L.NIGHT
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
DVD
TV
AMP
TV AUX TUN
DVD V1
INPUT SELECTOR
V2
DISC
CH
TONE
REMOTE
MODE
TUNER
DISPLAY
TV
INPUT
PREV
CH
DIMMER SLEEP
RANDOM
SP A SP B
MUTING
EXIT GUIDE
ANGLE
SEARCH
SUBTITLEAUDIO
MEMORYA
-
BREPEAT
ON STANDBY
T
V
TV CH
T
V VOL
RC
-
577S
LAST M
OPEN
/
CLOSE
TUN M
VIDEO OFF
LEVEL LEVEL
+
_
+
-
PLAY MODE
AMP
SETUP
TEST TONE
ENTER
INPUT
SELECTOR
AMP
TUNER
TV AUX TUN
DVD V1
INPUT SELECTOR
V2
2
Press the [SETUP] button.
3
Use the Up and Down [ ]/[ ]
buttons to select “4. Input
Setup,” and then press [ENTER].
4
Use the Up and Down [ ]/[ ]
buttons to select “Comp Video,”
and then use the Left and Right
[ ]/[ ] buttons to select:
Input1: Select if the video component
is connected to COMPO-
NENT VIDEO INPUT 1.
Input2: Select if the video component
is connected to COMPO-
NENT VIDEO INPUT 2.
Video: Select this to output compos-
ite video and S-Video sources
from the COMPONENT
VIDEO OUT.
Last: Select if you want to watch
video from the previously
selected component.
Note that if the previously selected
input source is assigned to Video, and
you select an input source that's
assigned to Last, composite video or S-
Video from the current input source
(not the last) will be output by the
COMPONENT VIDEO OUT.
5
Press the [SETUP] button.
The setup menu closes.
ENTER
ENTER
ENTER
