Onkyo TX-RZ3400

51
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

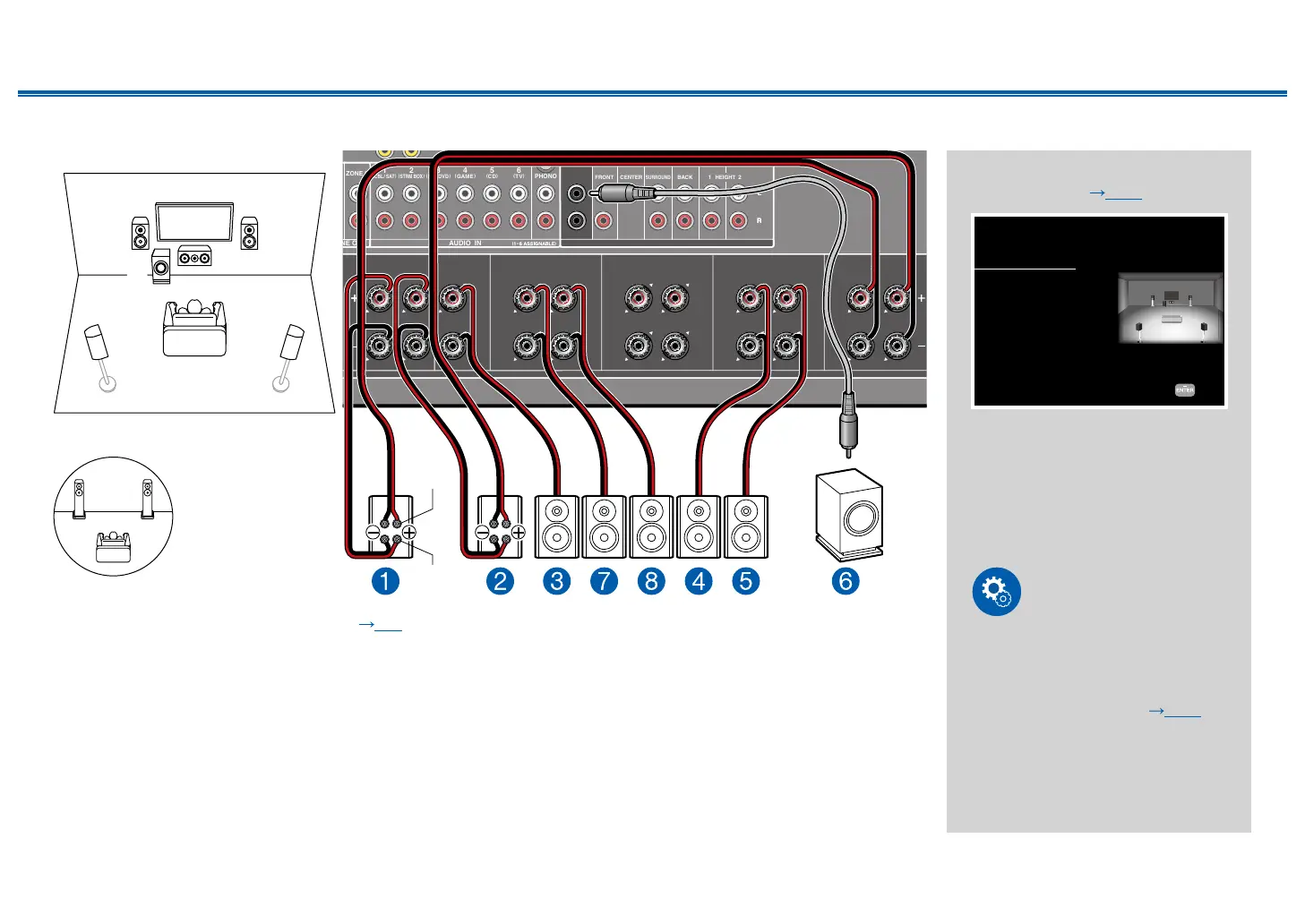

 5.1 Channel System (Bi-Amping the Speakers)+ ZONE SPEAKER
ZONE 2

MAIN ROOM





(
CBL / SAT
) (
STRM BOX
)
1 2 3 4 5 6
(
BD / DVD
) (
GAME
) (
T V
)
PHONO
FRONT CENTER
(
CD
)
ZONE 3
ZONE B
LINE OUT
)
1 2
BACK HEIGHT
OPTICALCOAXIAL
LL
RR
1
(
1
~
6 ASSIGNABLE
)
2
SUB
-
WOOFER
SURROUND
PRE OUT
PRE/LIN
E OUT
AUDIO IN
FRONTFRONT CENTER
RR LL
SURROUND BACKSURROUND BACK
RR LL RR LL
SURROUNDSURROUND
HEIGHT 1 HEIGHT 1
SPEAKERS
HEIGHT 2 HEIGHT 2
RR LL RR LL
(
ZONE 3
) (
Bi
-
AMP
)
(
ZONE 2
)
2
For high-
frequency
For low-
frequency
You can congure a 5.1 Channel System ( p19) by connecting front speakers that support Bi-Amping connection.
The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
MAIN ROOM: This is a basic 5.1 Channel System.
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing 5.1-ch playback in the main room
(where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also,
different sources can be played back in both rooms.
 "Speaker Setup" settings during
Initial Setup ( p185)
Speaker Setup
Select how many speakers you have.
Next
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Zone 2 Preout
Bi-Amp
5.1 ch
< >
1ch
---
---
Zone 2
Zone 2
Yes
• Speaker Channels: 5.1 ch
• Subwoofer: 1ch
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: Zone 2
• Zone 2 Preout: Zone 2
• Bi-Amp: Yes
Setup
When video and audio via HDMI
input are output to ZONE 2, set "1.
Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p154)
to "Use" on the Setup menu.
