Onkyo TX-RZ3400

52
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
 7.1 Channel System





(
CBL / SAT
) (
STRM BOX
)
1 2 3 4 5 6
(
BD / DVD
) (
GAME
) (
T V
)
PHONO
FRONT CENTER
(
CD
)
ZONE 3
ZONE B
LINE OUT
)
1 2
BACK HEIGHT
OPTICALCOAXIAL
LL
RR
1
(
1
~
6 ASSIGNABLE
)
2
SUB
-
WOOFER
SURROUND
PRE OUT
PRE/LIN
E OUT
AUDIO IN
FRONTFRONT CENTER
RR LL
SURROUND BACKSURROUND BACK
RR LL RR LL
SURROUNDSURROUND
HEIGHT 1 HEIGHT 1
SPEAKERS
HEIGHT 2 HEIGHT 2
RR LL RR LL
(
ZONE 3
) (
Bi
-
AMP
)
(
ZONE 2
)
2

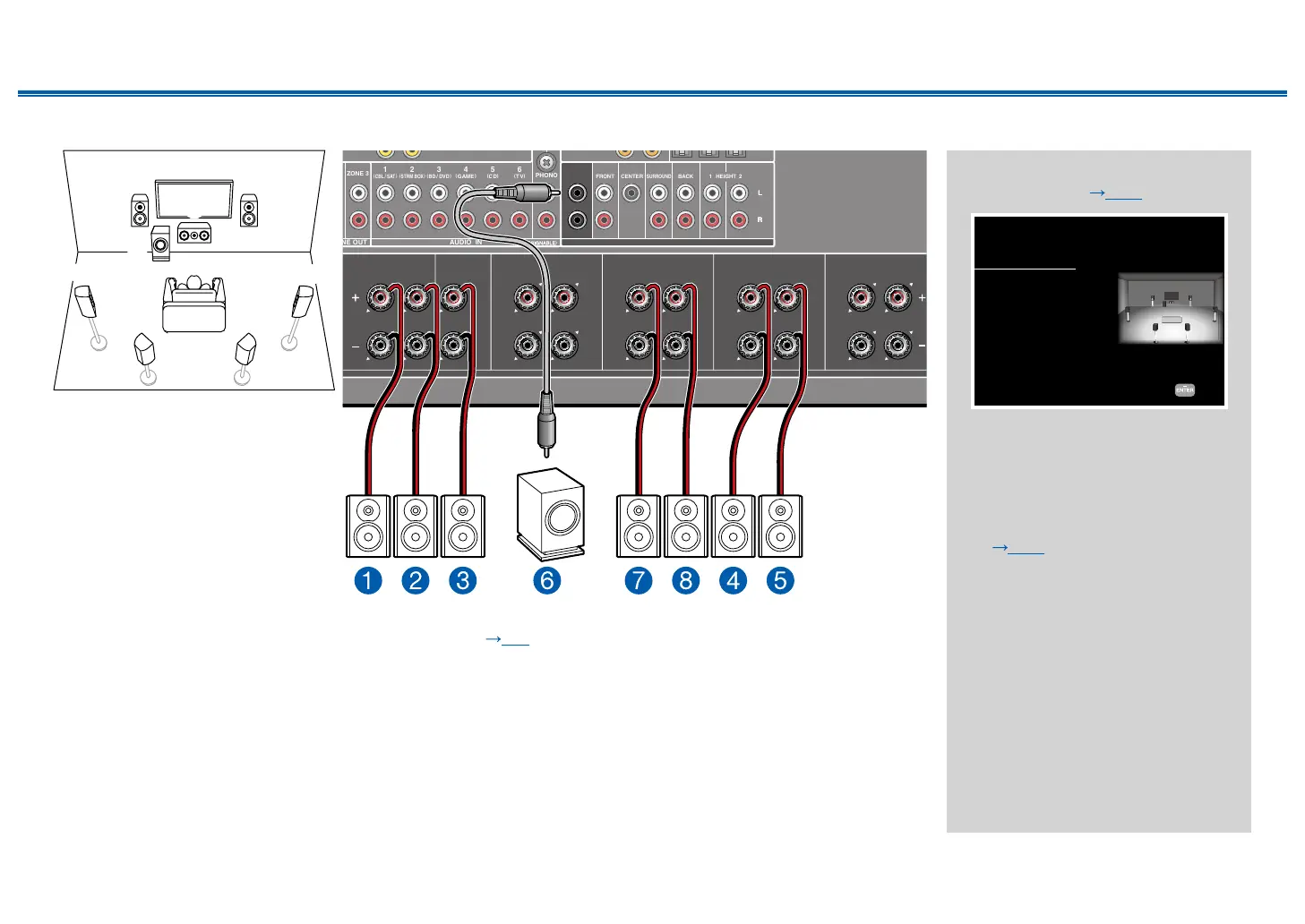

This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers. For
details of the speaker layout, refer to "Speaker Installation" ( p20).
 "Speaker Setup" settings during
Initial Setup ( p185)
Speaker Setup
Select how many speakers you have.
Next
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Zone 2 Preout
Bi-Amp
7.1 ch
< >
1ch
---
---
No
Zone 2
No
• Speaker Channels: 7.1 ch
• Subwoofer: 1ch
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value (
p159)
• Bi-Amp: No
