Onkyo TX-RZ3400

66
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

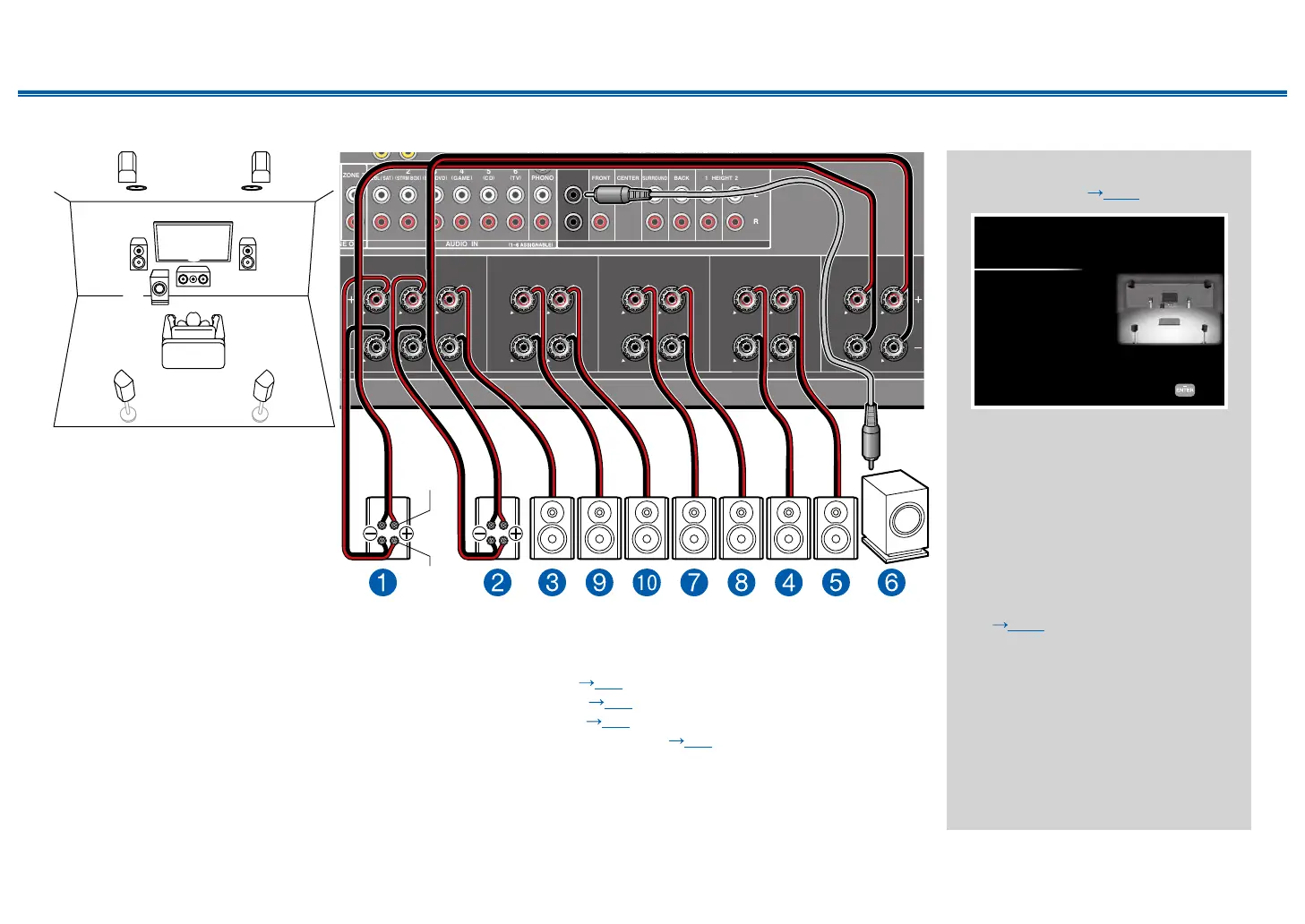

 5.1.4 Channel System (Bi-Amping the Speakers)







(
CBL / SAT
) (
STRM BOX
)
1 2 3 4 5 6
(
BD / DVD
) (
GAME
) (
T V
)
PHONO
FRONT CENTER
(
CD
)
ZONE 3
ZONE B
LINE OUT
)
1 2
BACK HEIGHT
OPTICALCOAXIAL
LL
RR
1
(
1
~
6 ASSIGNABLE
)
2
SUB
-
WOOFER
SURROUND
PRE OUT
PRE/LIN
E OUT
AUDIO IN
FRONTFRONT CENTER
RR LL
SURROUND BACKSURROUND BACK
RR LL RR LL
SURROUNDSURROUND
HEIGHT 1 HEIGHT 1
SPEAKERS
HEIGHT 2 HEIGHT 2
RR LL RR LL
(
ZONE 3
) (
Bi
-
AMP
)
(
ZONE 2
)
2
For high-
frequency
For low-
frequency
This is an example of combining the top middle speakers at the front and the rear high speakers at the rear to the 5.1
Channel System. The height speakers in front can be selected from following 4 types. The height speakers that can be
combined at the rear differ depending on the height speakers used at the front.
 Combination example when Top Front Speakers are used at the front ( p30)
 Combination example when Top Middle Speakers are used at the front ( p32)
 Combination example when Front High Speakers are used at the front ( p33)
 Combination example when Dolby Enabled Speakers (Front) are used at the front ( p35)
You can congure a 5.1.4 Channel System by connecting front speakers that support Bi-Amping connection. The Bi-
Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
• If front speakers are to be Bi-Amping connected, height 1 speakers need to be connected to the SURROUND BACK
jacks.
 "Speaker Setup" settings during
Initial Setup ( p185)
Speaker Setup
Next
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Zone 2 Preout
Bi-Amp
Select how many speakers you have.
5.1.4 ch < >
1ch
Top Middle
Rear High
No
Zone 2
Yes
• Speaker Channels: 5.1.4 ch
• Subwoofer: 1ch
• Height 1 Speaker: Select the
type of height speaker actually
installed.
• Height 2 Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: No
• Zone 2 Preout: Set any value (
p159)
• Bi-Amp: Yes
