Connecting the AV Receiver/AV Amplifier—Continued
Connecting a Camcorder or Other Device

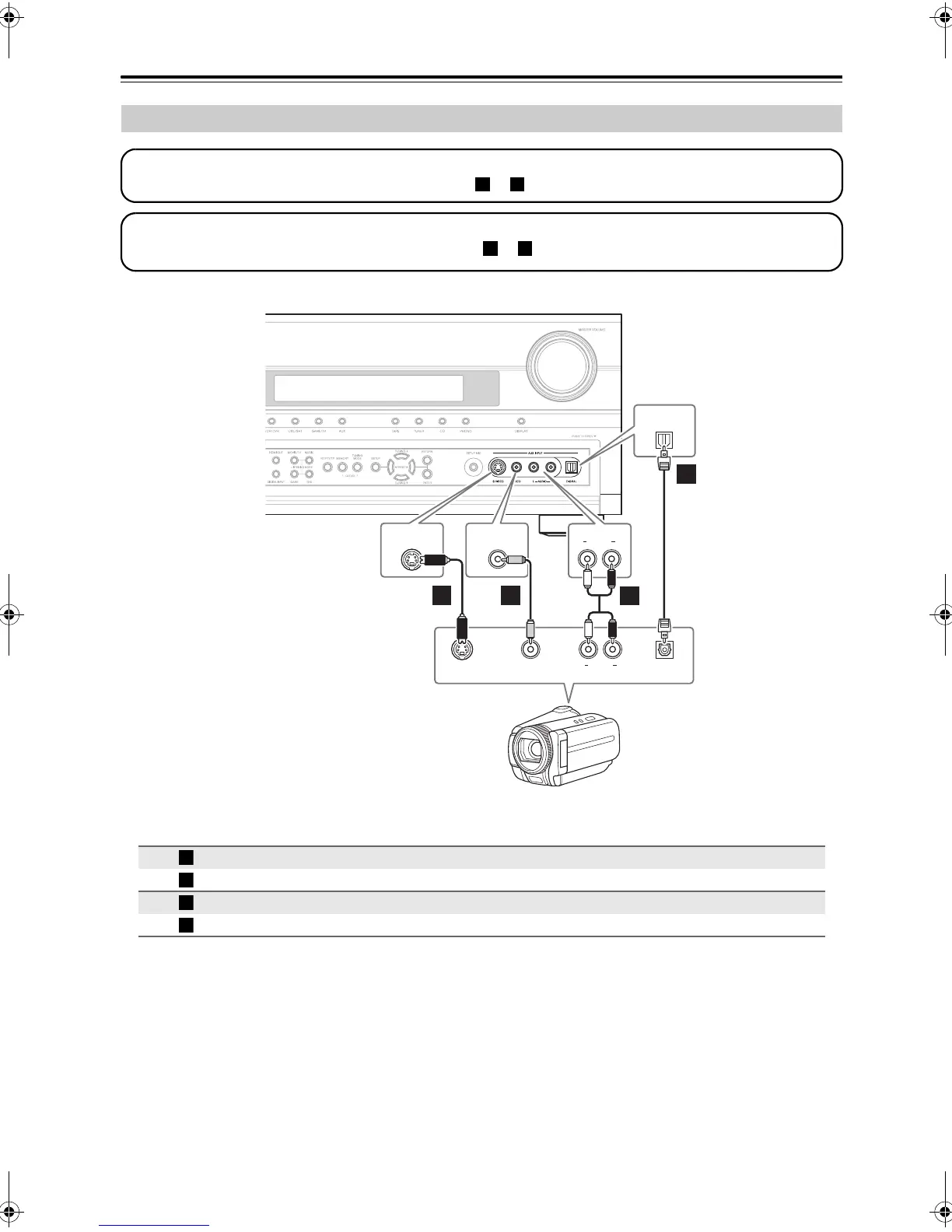

Connection AV receiver/AV amplifier Signal flow Camcorder etc.
AUX INPUT S VIDEO ⇐ S-Video output
AUX INPUT VIDEO ⇐ Composite video output
AUX INPUT L-AUDIO-R ⇐ Analog audio L/R output
AUX INPUT DIGITAL ⇐ Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder ( or ), and then make the connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder ( or ), and then make the connection.
a b
OPTICAL
OUT
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
S VIDEO
AUX INPUT
DIGITAL
AUDIO
VIDEO
LR
AUX INPUT
AUX INPUT
AUX INPUT
A
a
b
B
Camcorder, etc.
A
B
a
b
