Onkyo TX-SV343

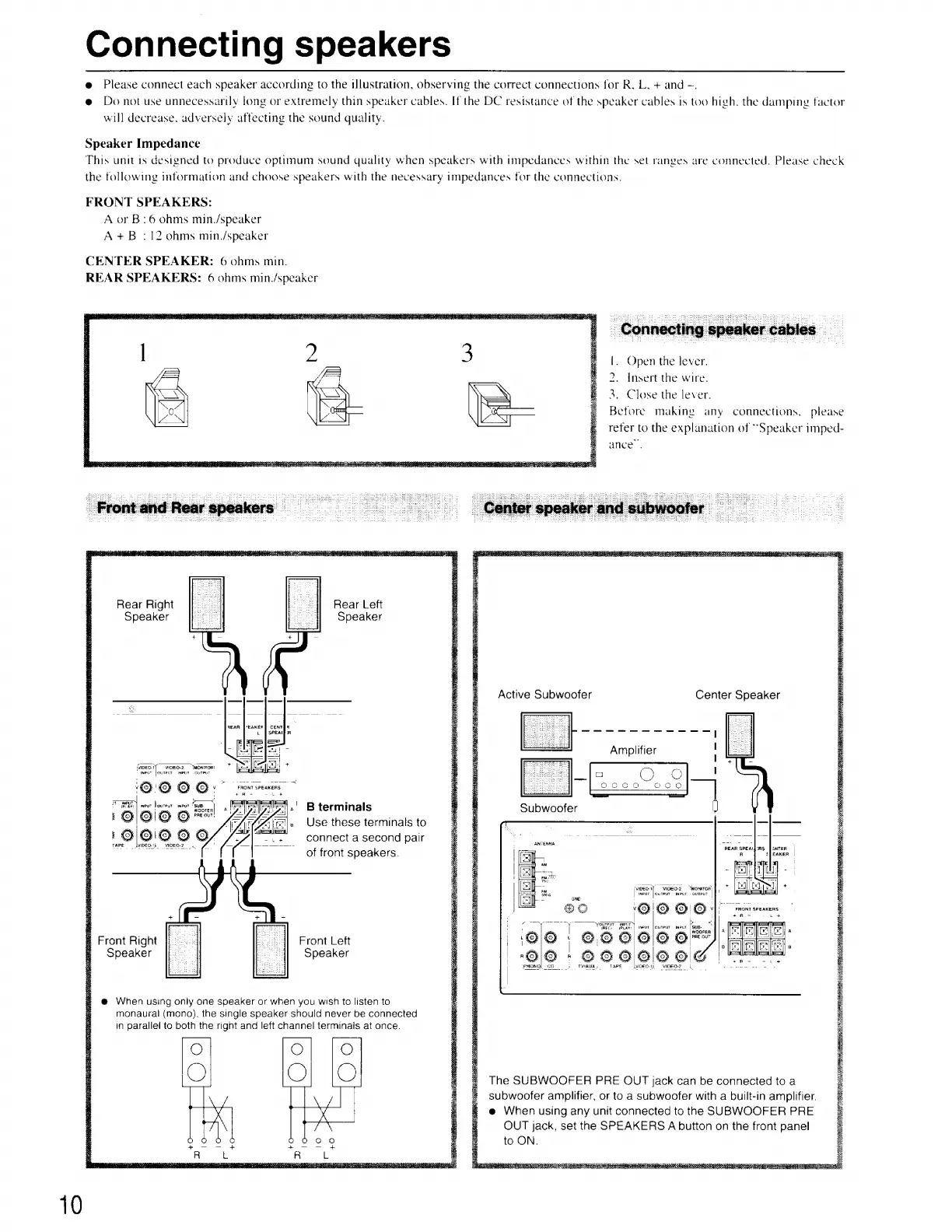

Connecting speakers
e Please connect each speaker according to the lustration, observing the correct connections for R, L, + and -.
@ Do not use unnecessarily long or extremely thin speaker cables. If the DC resistance of the speaker cables is too high. the damping factor
will decrease. adversely affecting the sound quality.
Speaker Impedance
This unit is designed to produce optimum sound quality when speakers with impedances within the set ranges are connected. Please check
the following information and choose speakers with the necessary impedances for the connections.
FRONT SPEAKERS:
A or B:6 ohms min./speaker
A+B :12 ohms min./speaker
CENTER SPEAKER: 6 ohms min.
REAR SPEAKERS: 6 ohms min./speaker
|. Open the lever.
2. Insert the wire.
3, Close the lever.
Before making any connections, please
refer to the explanation of “Speaker imped-
ance.
Rear Left
Speaker
Rear Right
Speaker
Active Subwoofer Center Speaker
WIDEG-TY — ¥IDEO.2 TMON:TOR!
WRT | OUTPUT IWPUT © OUTPUT
\
| a,
f ae i
12 ' ©
1 © | MPT Jouteur INPUT ' SUBE H
. = | =) WOOFER A
is 4 Ff; q PR T
O|AIO O == wea |e \
| A A,
©) © GC
— _Mpeo VIDEO?
an 7
FRONT SPEAKERS
‘Om © km
B terminals
Use these terminals to
connect a second pair
of front speakers.
[VIDEO-4{ VIDEO-2 TMONITOR’
INPUT [OUTPUT INPUT | OUTPUT
i
:
INPUT
sup.
a
|
ttle
AAA
AA
Front
Left
©|©
©O.©
©|O0/\©
Speaker
~
-
on
Front Right
Speaker
@ When using only one speaker or when you wish to listen to
monaural (mono), the single speaker should never be connected
in parallel to both the right and left channel terminals at once.
O) The SUBWOOFER PRE OUT jack can be connected to a
subwoofer amplifier, or to a subwoofer with a built-in amplifier.
e When using any unit connected to the SUBWOOFER PRE
OUT jack, set the SPEAKERS A button on the front panel
to ON.
