Onkyo TX-SV343

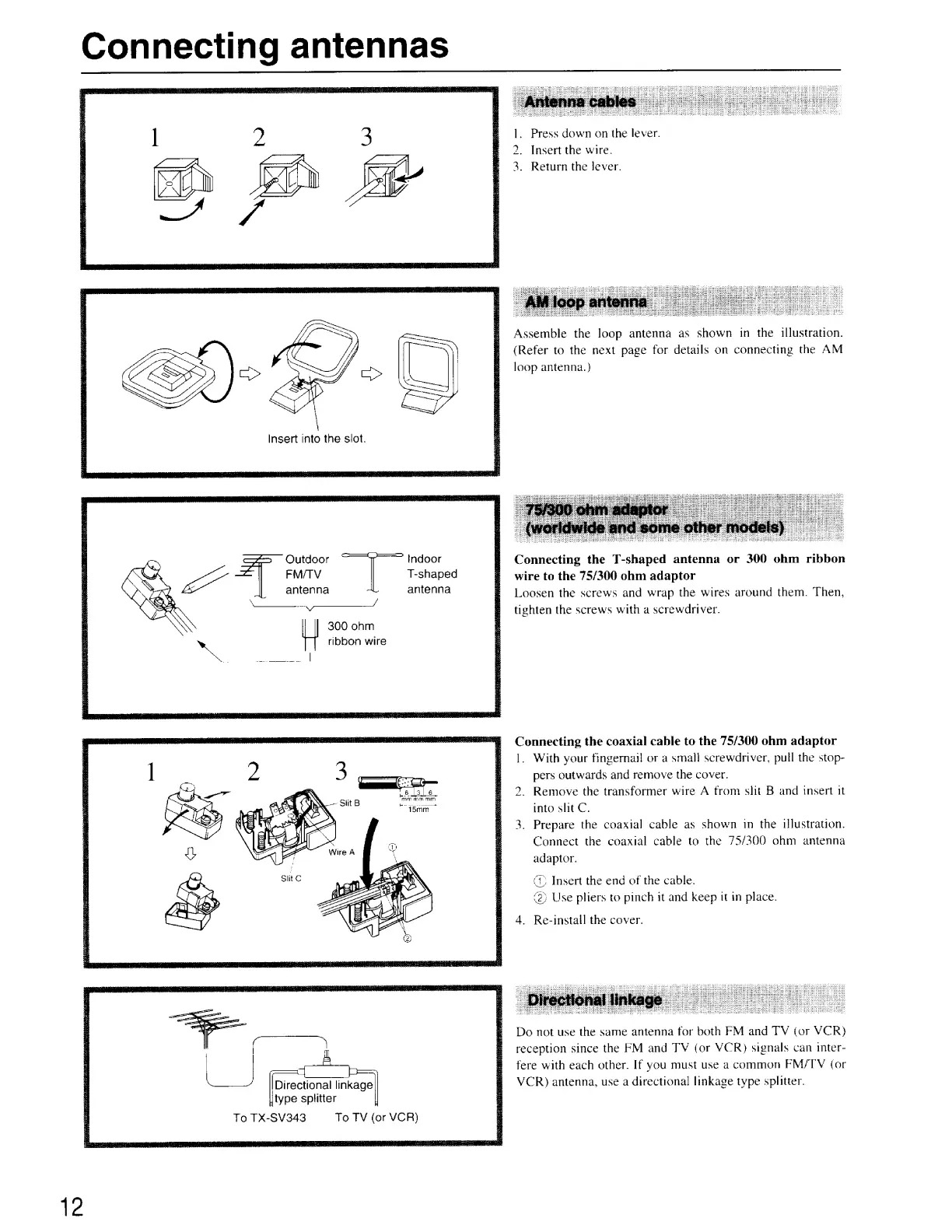

Connecting antennas
Insert into the slot.
Outdoor Indoor
FM/TV T-shaped
antenna antenna
Se
300 ohm
ribbon wire
Directional linkage
type splitter
To TX-SV343 To TV (or VCR)
12
Press down on the lever.
Insert the wire.
Return the lever.
Assemble the loop antenna as shown in the illustration.
(Refer to the next page for details on connecting the AM
loop antenna.)
Connecting the T-shaped antenna or 300 ohm ribbon
wire to the 75/300 ohm adaptor
Loosen the screws and wrap the wires around them. Then,
tighten the screws with a screwdriver.
Connecting the coaxial cable to the 75/300 ohm adaptor
1. With your fingernail or a smali screwdriver, pull the stop-
pers outwards and remove the cover.
Remove the transformer wire A from slit B and insert it
into shtC.
3. Prepare the coaxial cable as shown in the illustration.
Connect the coaxial cable to the 75/300 ohm antenna
adaptor.
Io
(> Insert the end of the cable.
(2) Use pliers to pinch it and keep it in place.
4. Re-install the cover.
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can inter-
fere with each other. If you must use a common FM/T'Y (or
VCR) antenna, use a directional linkage type splitter.
