Onkyo TX-SV343

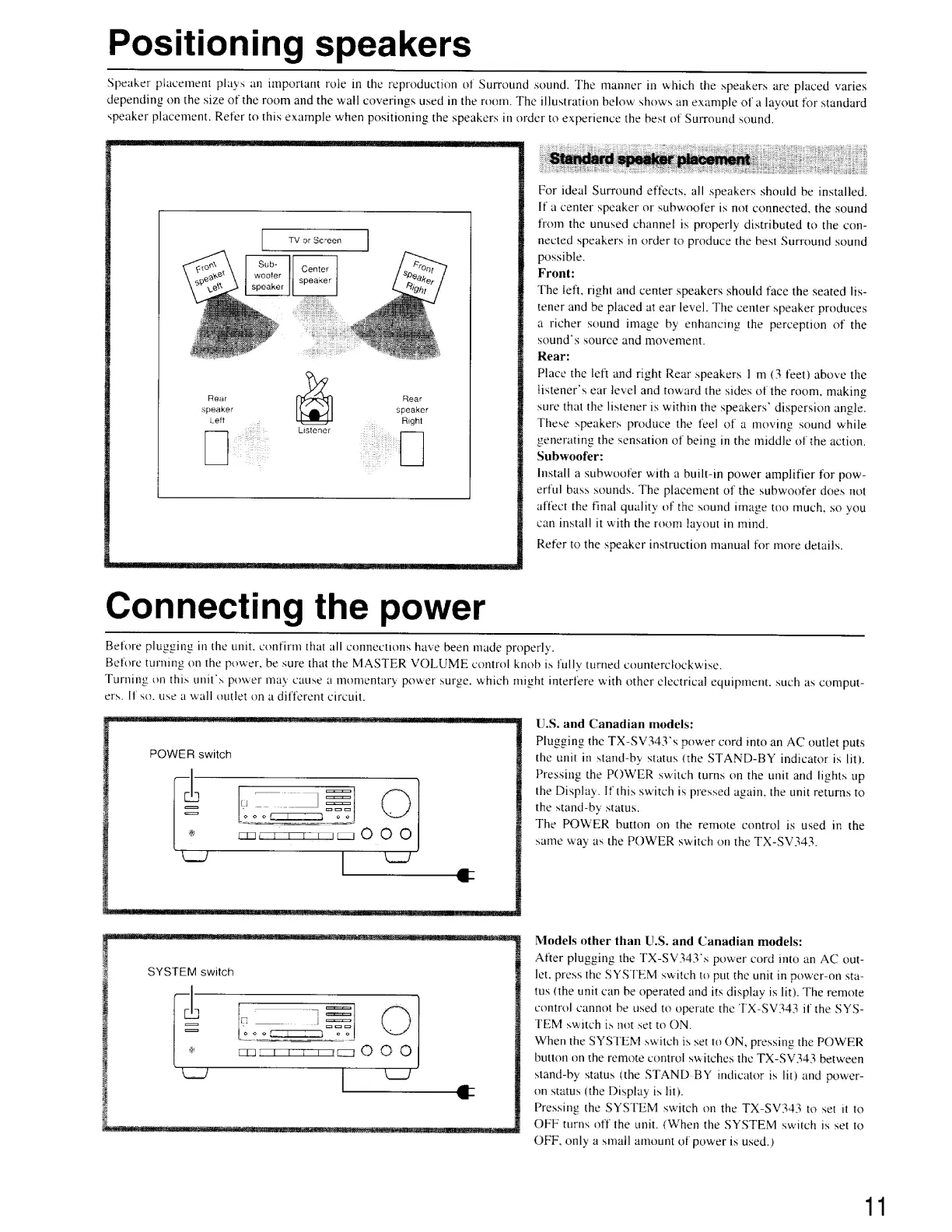

Positioning speakers
Speaker
placement
plays
an
tmportant
role
in
the
reproduction
of
Surround
sound,
The
manner
in
which
the
speakers
are
placed
varies
depending
on
the
size
of
the
room
and
the
wall
coverings
used
in
the
room.
The
illustration
below
shows
an
example
of
a
layout
for
standard
speaker
placement.
Refer
to
this
example
when
positioning
the
speakers
in
order
to
experience
the
best
of
Surround
sound.
For ideal Surround effects, all speakers should be installed.
If a center speaker or subwoofer is not connected, the sound
from the unused channel is properly distributed to the con-
| nected speakers in order to produce the best Surround sound
Sub ; possible.
uo- 4
wooter senner Front:
speaker
|
f
The
left,
right
and
center
speakers
should
face
the
seated
lis-
tener and be placed at ear level. The center speaker produces
a richer sound image by enhancing the perception of the
sound's source and movement.
Rear:
Place the left and right Rear speakers | m (3 feet) above the
listener’s ear level and toward the sides of the room, making
speaker spuaker sure that the listener is within the speakers’ dispersion angle.
Left on, [7 Right These speakers produce the feel of a moving sound while
: | generating the sensation of being in the middle of the action.
| Sg | | Subwoofer:
Install a subwoofer with a built-in power amplifier for pow-
erful bass sounds. The placement of the subwoofer does not
affect the final quality of the sound image too much, so you
can install it with the room layout in mind.
Refer to the speaker instruction manual for more details.
Connecting the power
Betore plugging in the unit. confirm that all connections have been made properly.
Before turning on the power, be sure that the MASTER VOLUME control knob is fully turned counterclockwise.
Turning on this unit’s power may cause a momentary power surge. which might interfere with other electrical equipment. such as comput-
ers. [f so. use a wall outlet on a different circuit.
U.S. and Canadian medels:
Plugging the TX-SV343"s power cord into an AC outlet puts
POWER
switch
the
unit
in
stand-by
status
(the
STAND-BY
indicator
is
lit).
Pressing the POWER switch turns on the unit and lights up
the Display. If this switch is pressed again, the unit returns to
the stand-by status,
The POWER button on the remote control is used in the
same way as the POWER switch on the TX-SV343.
Models other than U.S. and Canadian models:
After plugging the TX-SV343°s power cord into an AC out-
SYSTEM
switch
let.
press
the
SYSTEM
switch
to
put
the
unit
in
power-on
sta-
tus (the unit can be operated and its display is lit). The remote
control cannot be used to operate the TX-SV343 if the SYS-
TEM switch 1s not set to ON.
When the SYSTEM switch is set to ON, pressing the POWER
button on the remote control switches the TX-SV343 between
stand-by status (the STAND-BY indicator is lit) and power-
on status (the Display is lit).
Pressing the SYSTEM switch on the TX-SV343 to set it to
OFF turns off the unit. (When the SYSTEM switch is set to
OFF, only a smail amount of power ts used.)
11
