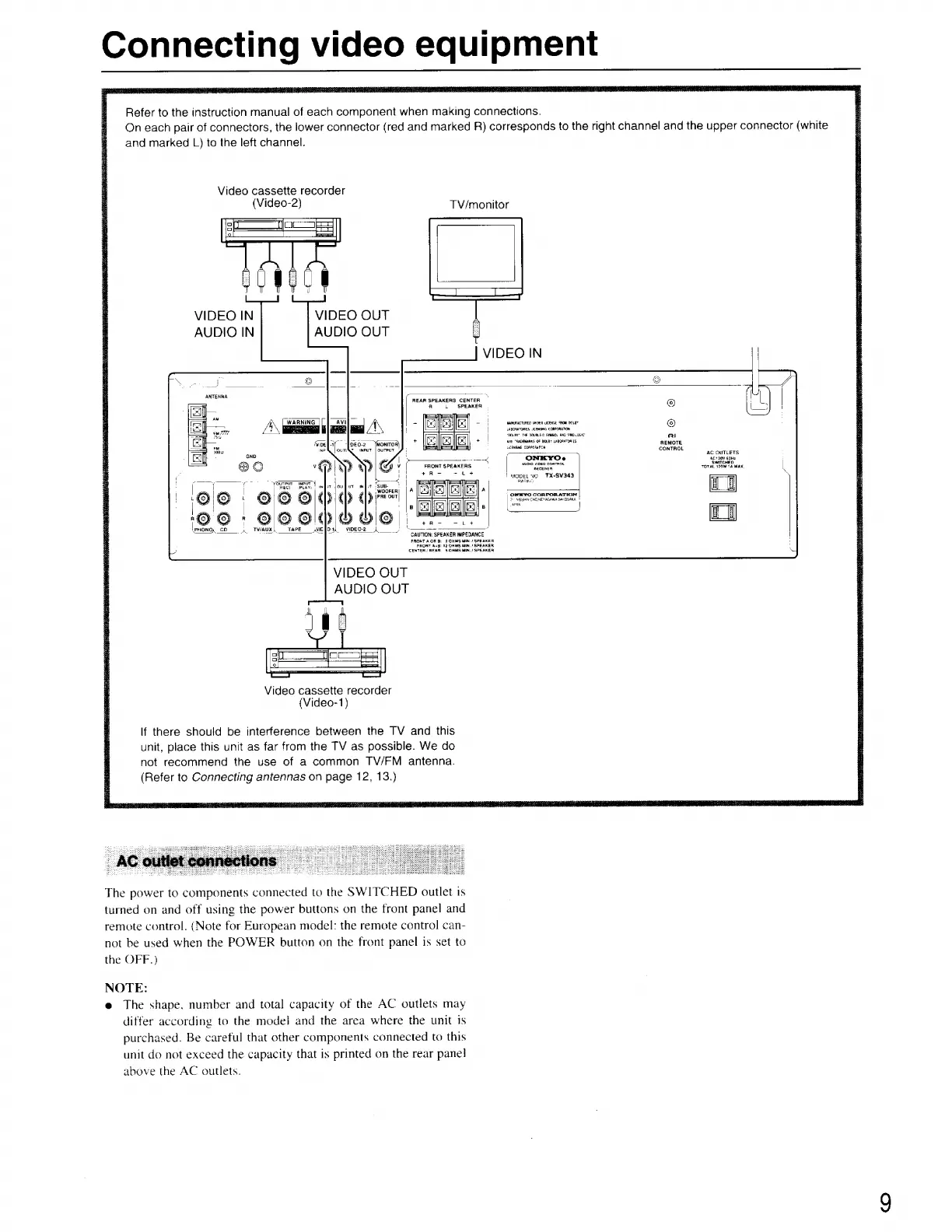

Connecting video equipment
Refer to the instruction manual of each component when making connections.
On each pair of connectors, the lower connector (red and marked R) corresponds to the right channel and the upper connector (white
and marked L) to the left channel.
Video cassette recorder
(Video-2) TV/monitor
VIDEO IN
AUDIO IN
VIDEO OUT
AUDIO OUT
- i
_
ANTENNA a,
REAR SPEAKERS CENTER
L SPEAKEA
©
MANUFACTUREC UNDER UCENSE FROM DOLSY
LABORATORIES ICENSING CORPORATION
“Di BY". THE GOUBLE-D SYMBOL ANG “PAO .0G'C”
ARE *RACEMARRS OF DOLBY LASORATORIES
LCEMSNG CORPORATION
ONKYO.s
2 (MONITOR
OUTPUT Uf i
| aU VIDEO CONTROL
RECEIVER
®
Al
AEMOTE
CONTROL
AC OUTLETS
AC 120 EOHz
SWITCHED
TOTAL 120 1A MAK
! MODEL NG 7X-S¥343
INPUT 71 RATIBE:
PLAT . |
. OWEYO COMPOR ATION
2 MSSHIN-CHG NEV AGA A Se OSAKA, |
_#
CAUTION: SPEAKER IMPEDANCE
FRONT AOA B: OHMS MIN. / SPEAKER
FRONT A+B: 17 CHMS MIN. ! SPEAKER
CENTER / AE A&A
VIDEO OUT
AUDIO OUT
} ROD Rod Ger | iS
Sok TAPE WIPO WIDEO-2 A
5 GHMS MIN. / SPEAKER
Video cassette recorder
(Video-1)
If there should be interference between the TV and this
unit, place this unit as far from the TV as possible. We do
not recommend the use of a common TV/FM antenna.
(Refer to Connecting antennas on page 12, 13.)
The power to components connected to the SWITCHED outlet 1s
turned on and off using the power buttons on the front panel and
remote control. (Note for European model: the remote control can-
not be used when the POWER button on the front panel is set to
the OFF.)
NOTE:
The shape, number and total capacity of the AC outlets may
differ according to the model and the area where the unit is
purchased. Be careful that other components connected to this
unit do not exceed the capacity that is printed on the rear panel
above the AC outlets.
