Onkyo TX-SV343

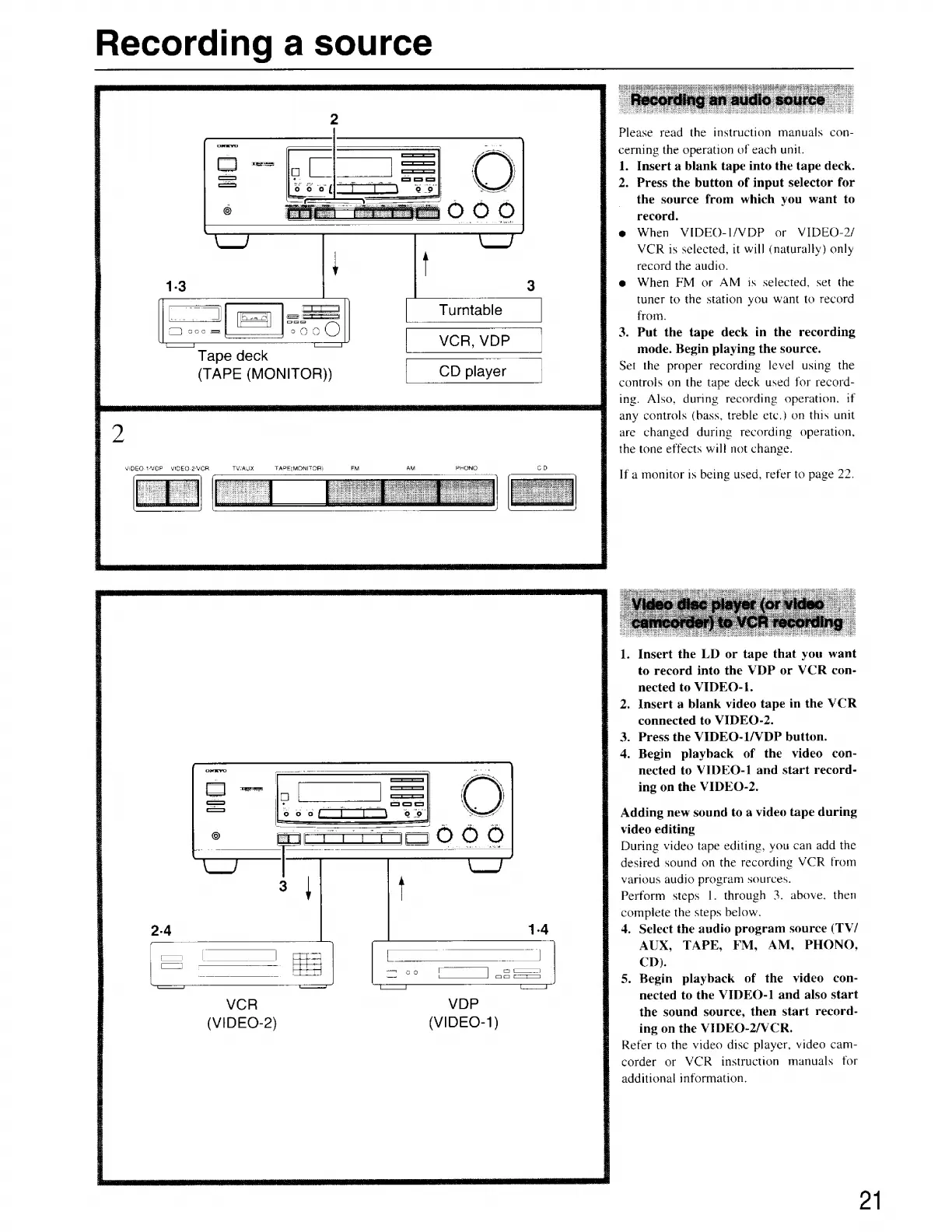

Recording a source
Tape deck
(TAPE (MONITOR))
2
VIDEO-1VOP VIDEOQ-2VCR TWAUM TAPE(MONITOR)
VCR VDP
(VIDEO-2) (VIDEO-1)
Please read the instruction manuals con-
cerning the operation of each unit.
1. Insert a blank tape into the tape deck.
2. Press the button of input selector for
the source from which you want to
record.
@ When VIDEO-1/VDP or VIDEO-2/
VCR is selected, it will (naturally) only
record the audio.
@ When FM or AM is selected, set the
tuner to the station you want to record
from.
3. Put the tape deck in the recording
mode. Begin playing the source.
Set the proper recording level using the
controls on the tape deck used for record-
ing. Also, during recording operation, if
any controls (bass, treble etc.) on this unit
are changed during recording operation,
the tone effects will not change.
If a monitor is being used, refer to page 22.
1. Insert the LD or tape that you want
to record into the VDP or VCR con-
nected to VIDEO-I.
2. Insert a blank video tape in the VCR
connected to VIDEQ-2.
3. Press the VIDEO-1/VDP button.
4. Begin playback of the video con-
nected to VIDEQO-1 and start record-
ing on the VIDEO-2.
Adding new sound to a video tape during
video editing
During video tape editing, you can add the
desired sound on the recording VCR from
various audio program sources.
Perform steps |. through 3. above. then
complete the steps below.
4. Select the audio program source (TV/
AUX, TAPE, FM, AM, PHONO,
CD).
5. Begin playback of the video con-
nected to the VIDEO-1 and also start
the sound source, then start record-
ing on the VIDEO-2/VCR.
Refer to the video disc player, video cam-
corder or VCR instruction manuals for
additional information.
21
