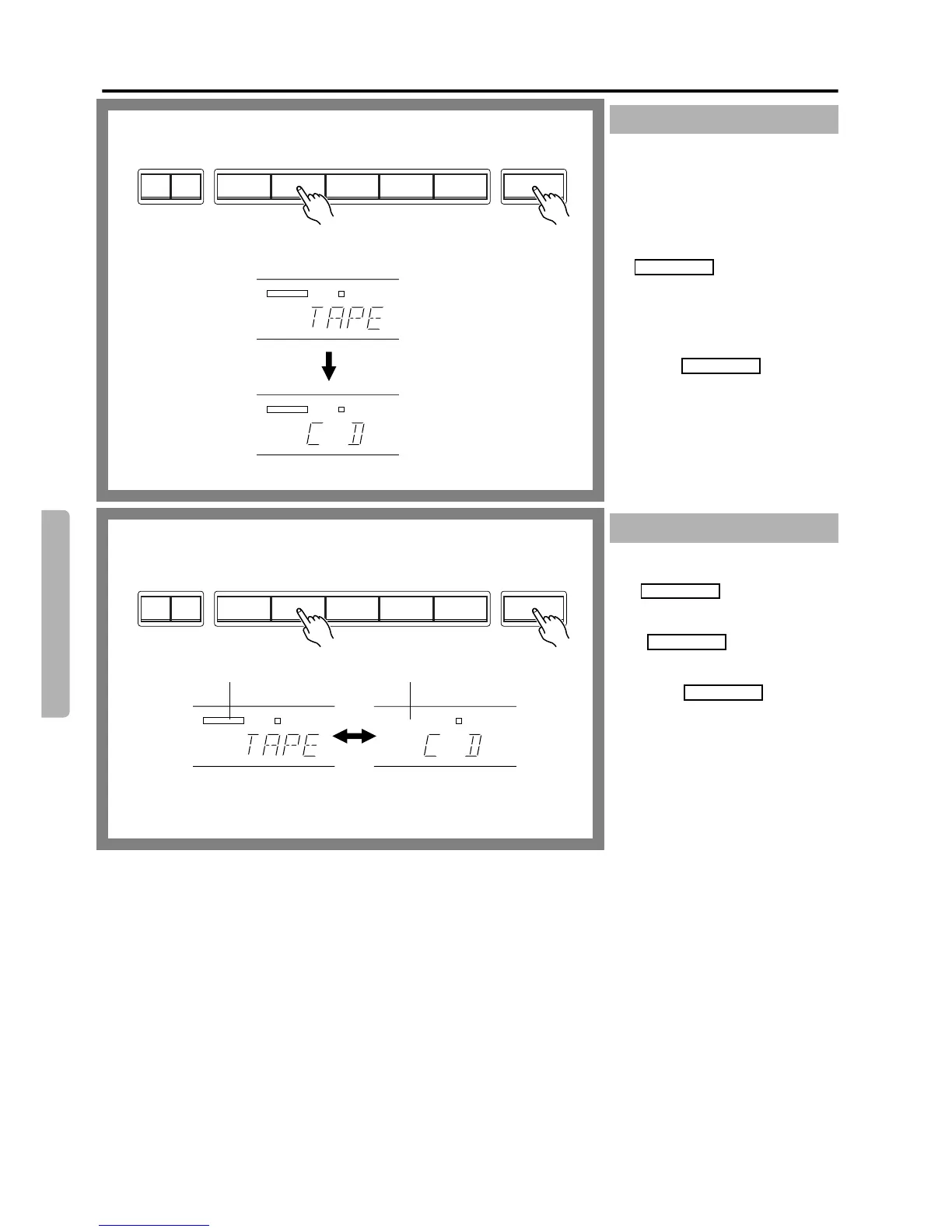

Using TAPE (MONITOR) Button
Connect the graphic equalizer to the TAPE
jacks on the rear panel.
If a tape deck is used, connect it to the tape
jacks on the graphic equalizer.
While pressing the button for the source
that you wish to equalize and listen to,
press the TAPE (MONITOR) button.
The indicator lights up.
Follow the graphic equalizer operating
instructions.
To record an equalized signal, use the tape
deck connected to the equalizer for record-
ing.
To turn the indicator off,
press the TAPE (MONITOR) button while
pressing the button for the source.
CAUTION:
● Do not use a Surround mode together
with the equalizer. This will result in
distortion and possible damage to Sur-
round decoder circuitry.
If a 3-head tape deck is connected to this
unit, the recording can be monitored.
If the indicator is not lit, the
sound from the source (the sound that has
not yet been recorded) is heard.
If the indicator is lit, the
sound that has just been recorded can be
heard.
To turn the indicator on
or off, press the TAPE (MONITOR) but-
ton while simultaneously pressing the
input selector button for the desired
source.
Using a graphic equalizer
To monitor during recording
