OPTIMUM
MASCHINEN - GERMANY
Maintenance
Version 1.1.5 dated 2015-08-31Page 42 Original operating instructions
BF30VarioGB
INFORMATION
The spindle bearing is lifetime-lubricated. It is not necessary to lubricate it again.
As required
V-ledges
Readjusting
X and Y axis

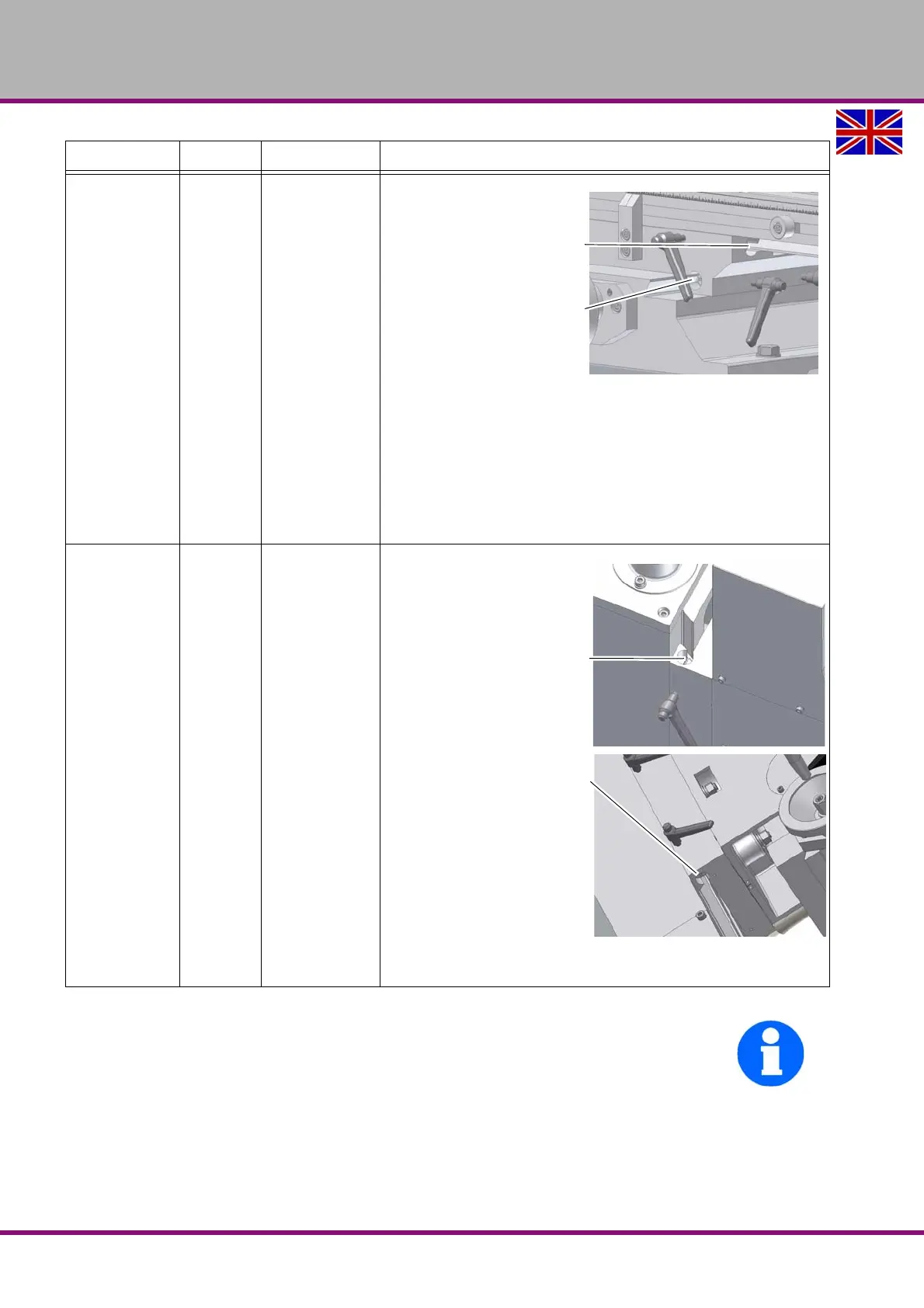

Img.5-7: Cross table
Turn the adjusting screw of the respective taper gib
frontand rear, or left and right in the clockwise direction.
The taper gib is continued to push in and reduced by it the
gap in the guide way.
Check the settings. The respective guide way must be still
easily mobile from the adjustment, result in however a sta-
ble guidance.
As required
V-ledges
Readjusting
Z axis:
Img.5-8: Column and mill head
Proceed as described under "Readjusting X and Y axis".
Interval Where? What? How?
Cross table
Regulating screw V-ledge
X axis right side
Regulating screw V-ledge
Y axis front
Regulating screw V-ledge
Z-axis top
Regulating screw V-ledge
Z-axis bottom
