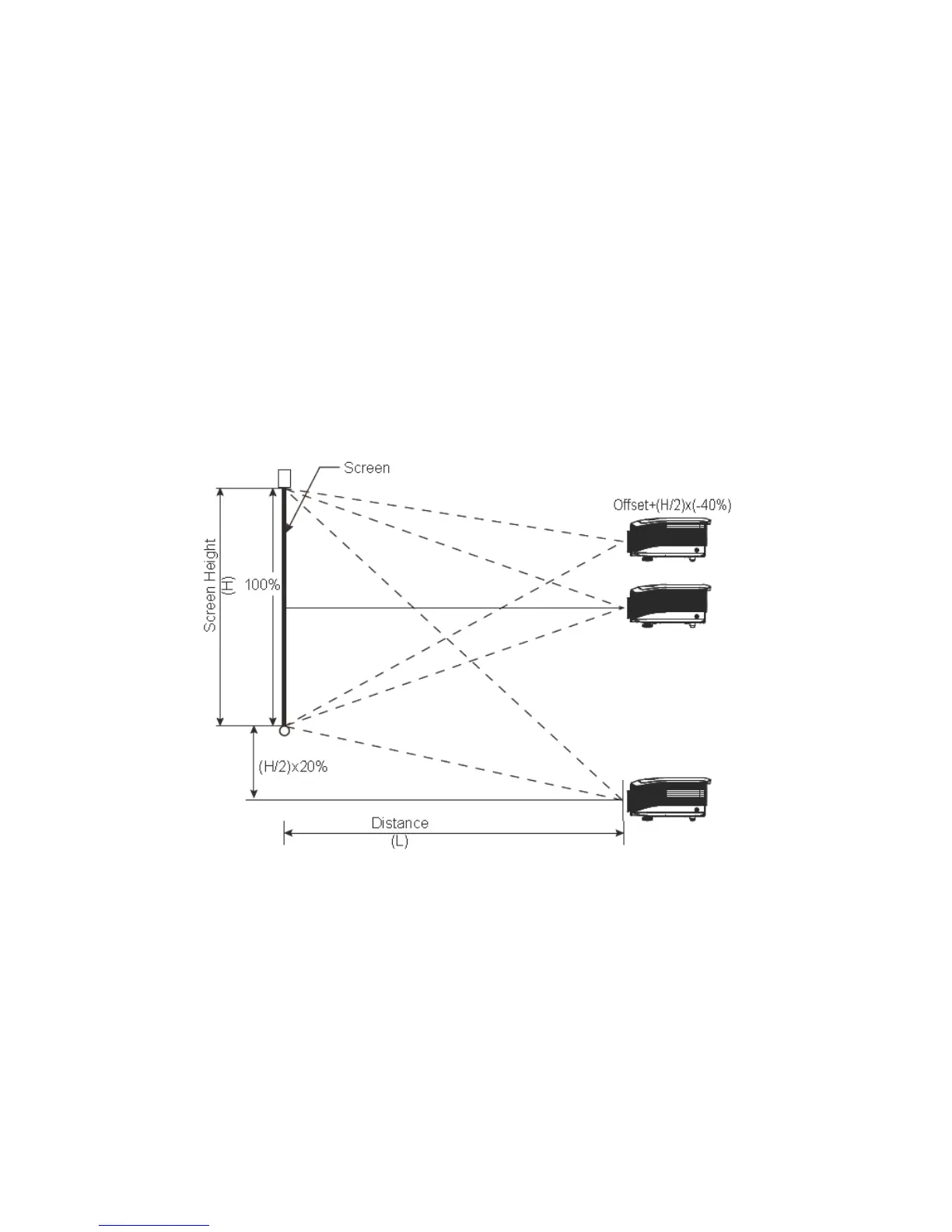

Adjusting the vertical image position
The vertical image height can be adjusted between -40% and 120% of half image height.
Note that the maximum vertical image height adjustment can be limited by the horizontal
image position.
For example it is not possible to achieve the maximum vertical image position height detailed
above if the horizontal image position is at maximum.
Please consult the PureShift Range diagram below for further clarification
