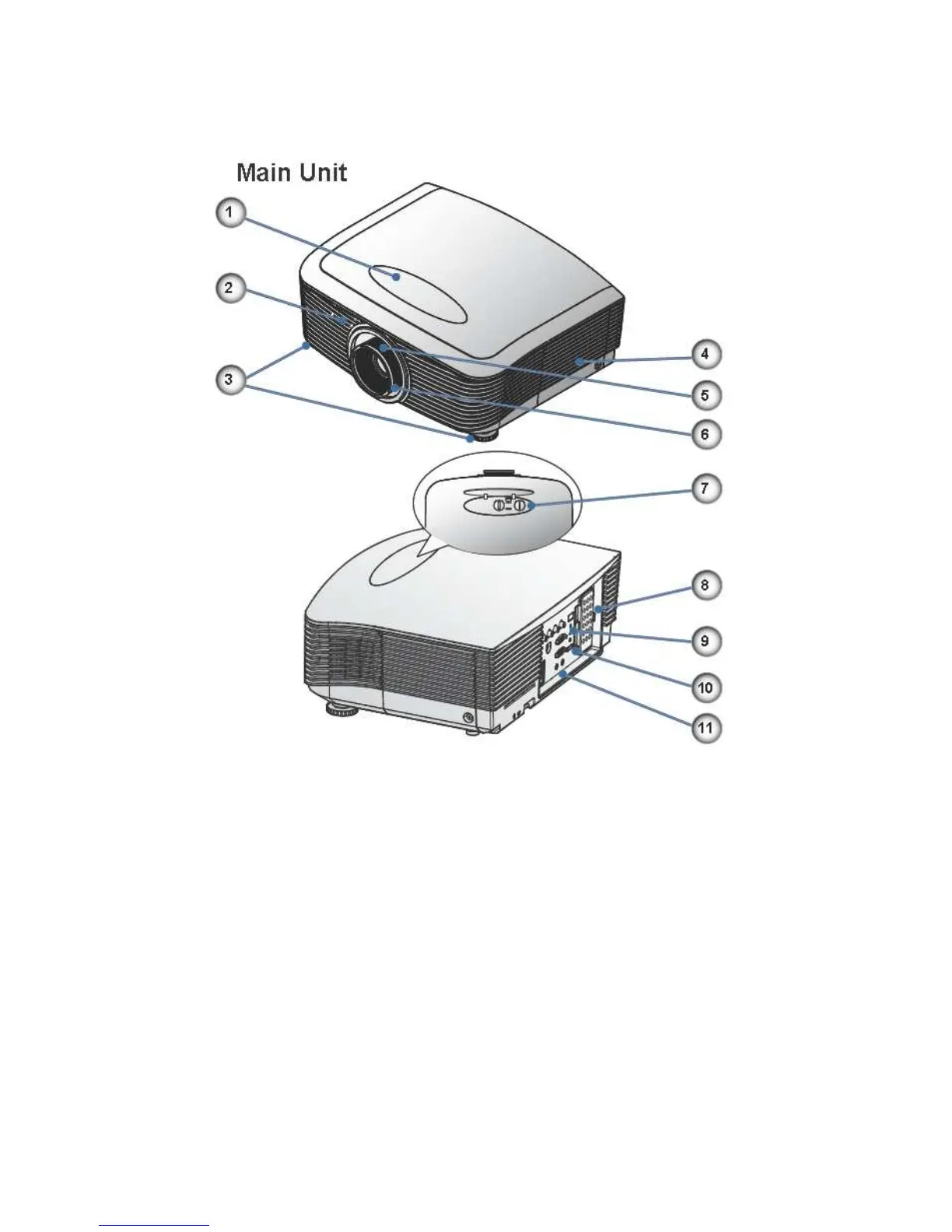

2-6. Main Unit View
1. Lens Shift Adjustment Cover
2. IR Receiver
3. TiIt-Adjustment Feet
4. Lamp RepIacement Cover
5. Zoom
6. Focus
7. VerticaI and HorizontaI Lens Shift Adjustment ControI and Lens Release
8. Backup Remote Tray
9. LED Indicators
10. Power Button
11. Connection Ports
