Optoma HD86 - Disassembly and Assembly Procedures; Removing the Lens

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
30
2009/08/18
4. DISASSEMBLY AND ASSEMBLY

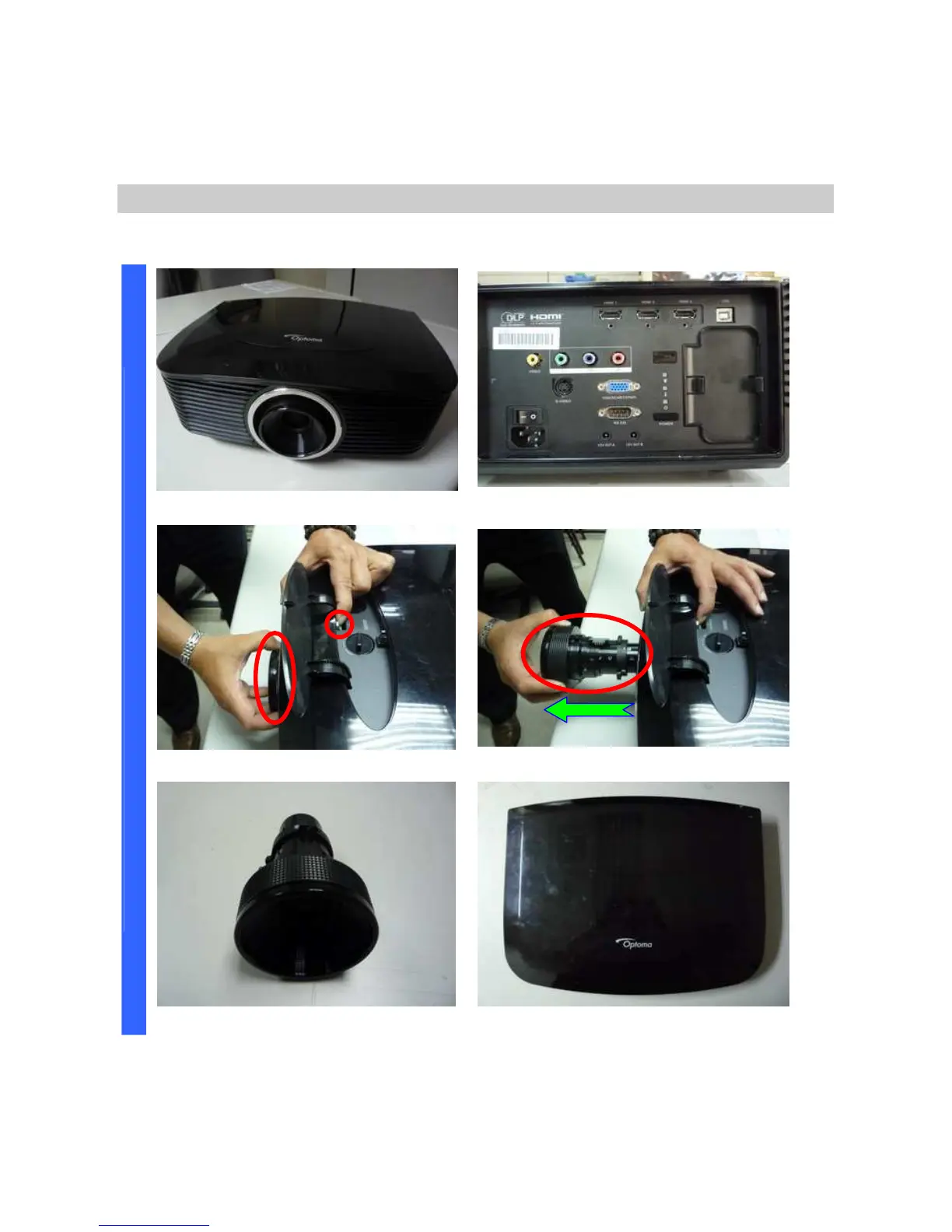

Review and Remove the Lens
Look the full set projector. Look at the IO side.
Push the button and anti-clockwise. Remove the Lens.
D
I
S
A
S
S
E
M
B
L
Y
Look the Lens. Review the Top cover of full unit.
