Optoma HD86 - Removing Lamp Cover and Module

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
31
2009/08/18

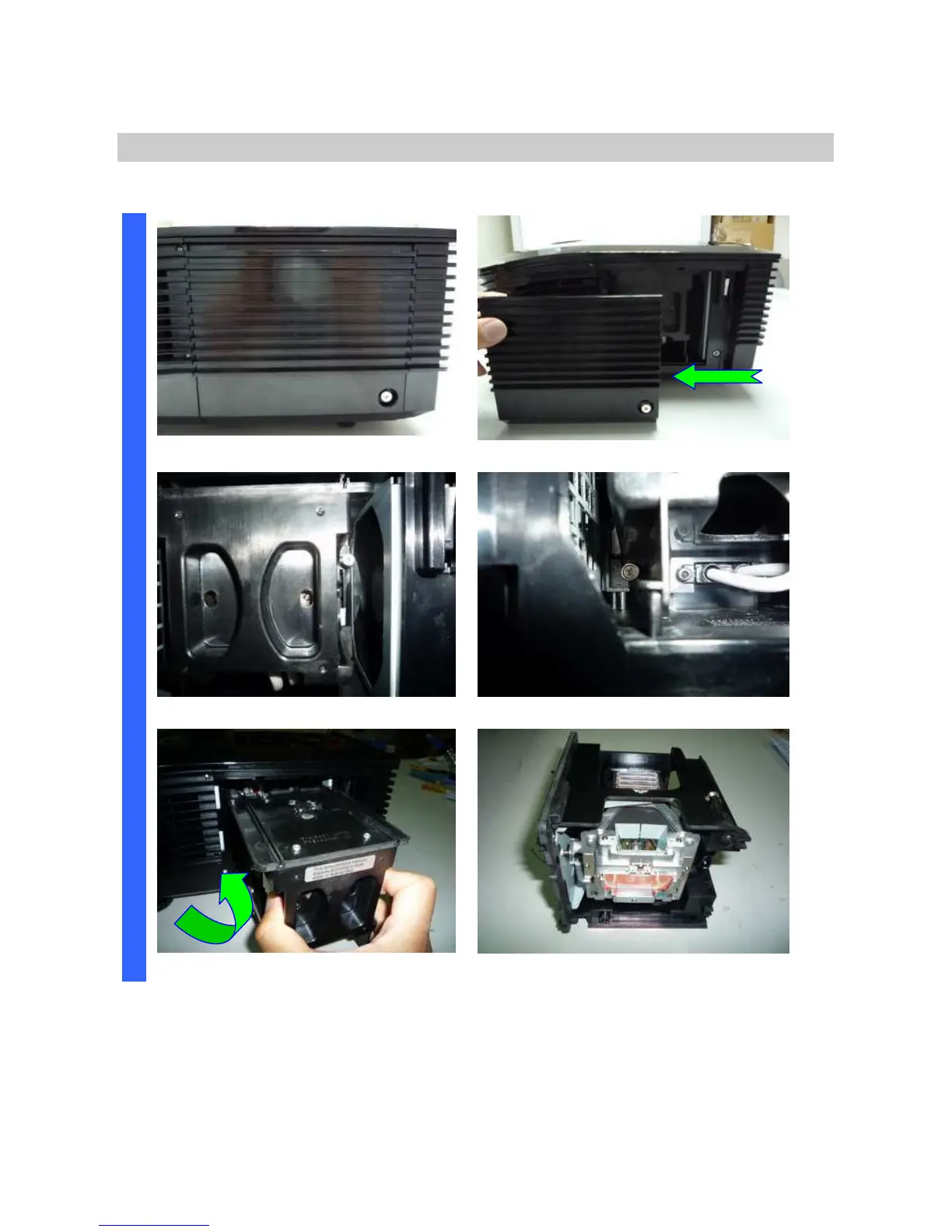

Remove the Lamp Cover and Lamp Module
Remove the screws (M4x19.7). Remove the Lamp cover.
Loose two other screws. Loose two other screws.
D
I
S
A
S
S
E
M
B
L
Y
Remove the Lamp module. Look the Lamp #1.
