Optoma HD86 - Troubleshooting by Operational Status

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
26
2009/08/18
`
• Black lines on screen (horizontal and vertical)
→
DMD Set malfunction
• Missing pixels (Missing white: 1 or more, missing black: 5 or more, or
sequence missing pixels)
→
DMD Set malfunction
• Shadows on screen
→
Dirt on DMD/projection lens surface
• Bluish shadows on corners of screen (during white screen display)
→
Shifted optical axis of Lens Base Unit

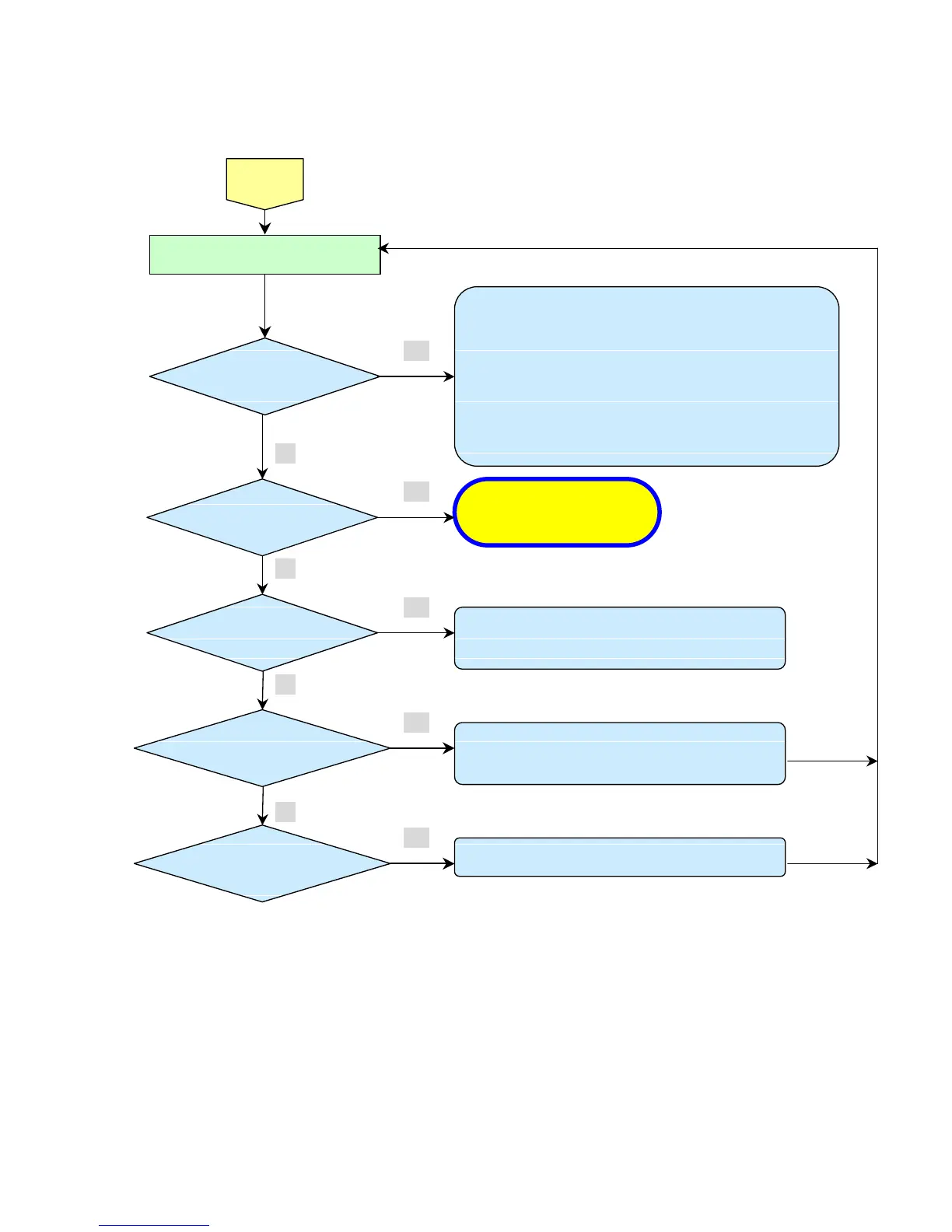

Check the
projection
Screen
Check using all black/white screens with
PC connection
Are abnormalities
noticeable on
projection
screen?
Does the lamp
go off during
oper
ation?
System OK
Normal operation
• Thermal break active due to lamp housing over temp.
<Over temperture >
TEMP LED ON
Fan Stop or
Fan speed didn’t
match spec.
?
• Temperature protector operated due to the increase
in temperature based on operating environment
• Temperature protector operated due to blocked suction and
exhaust holes or dirty fan
• PWR LED flashing x6 , Lamp LED flashing x1 : Fan1 NG
• PWR LED flashing x6 , Lamp LED flashing x2 : Fan2 NG
• PWR LED flashing x6 , Lamp LED flashing x3 : Fan3 NG
<Thermal Break>
TBD
No
No
No
No
Yes
Yes
Yes
Yes
Yes
