Optoma HD86 - Removing Front IR and IO Boards

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
40
2009/08/18
Remove the Front IR board and IO board

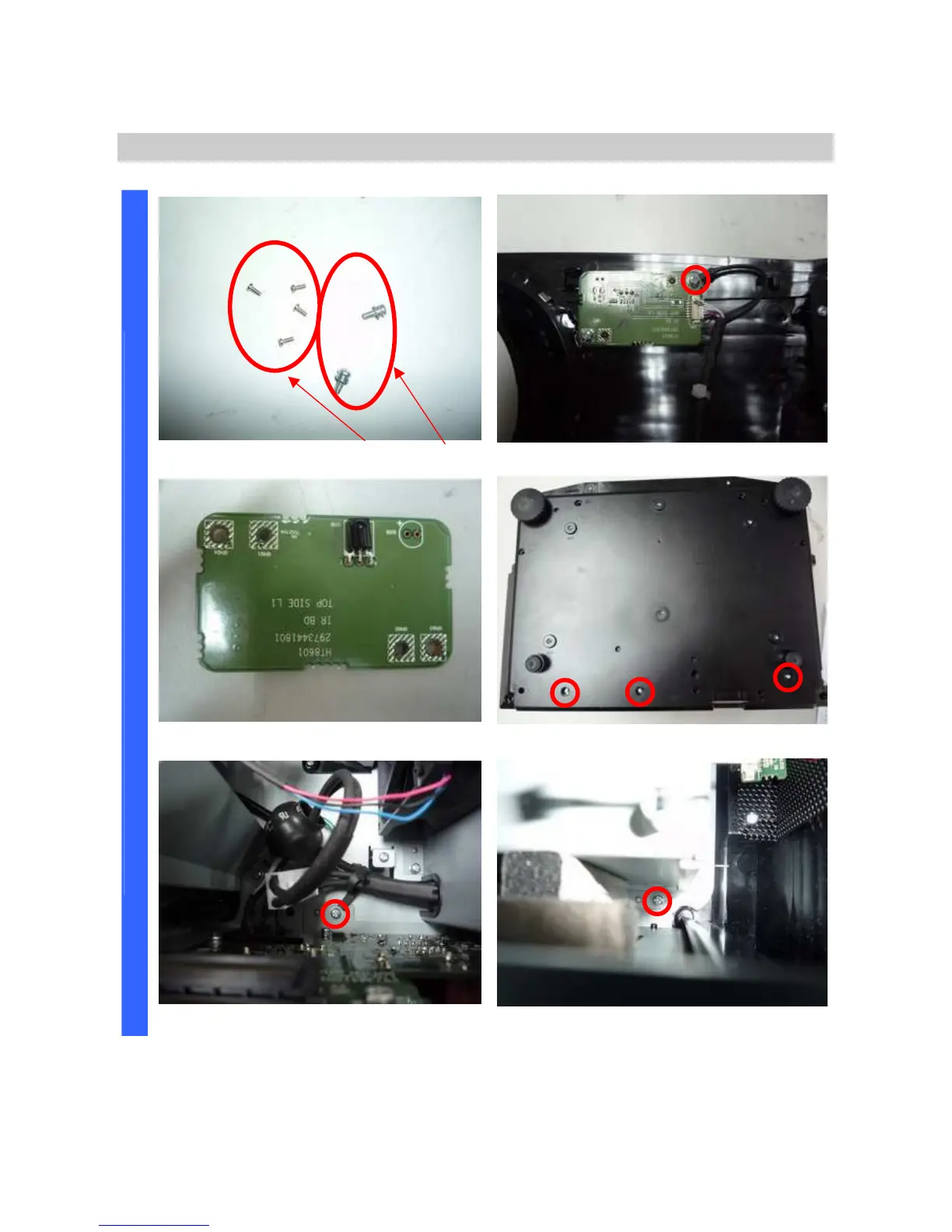

Review these 4+2 screws(M2x5)&(M3x8).
Remove the screw (M3x8).
Look the Front IR board. Remove these 3 screws (M3x8).
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw (M3x8). Remove the screw (M3x8).
