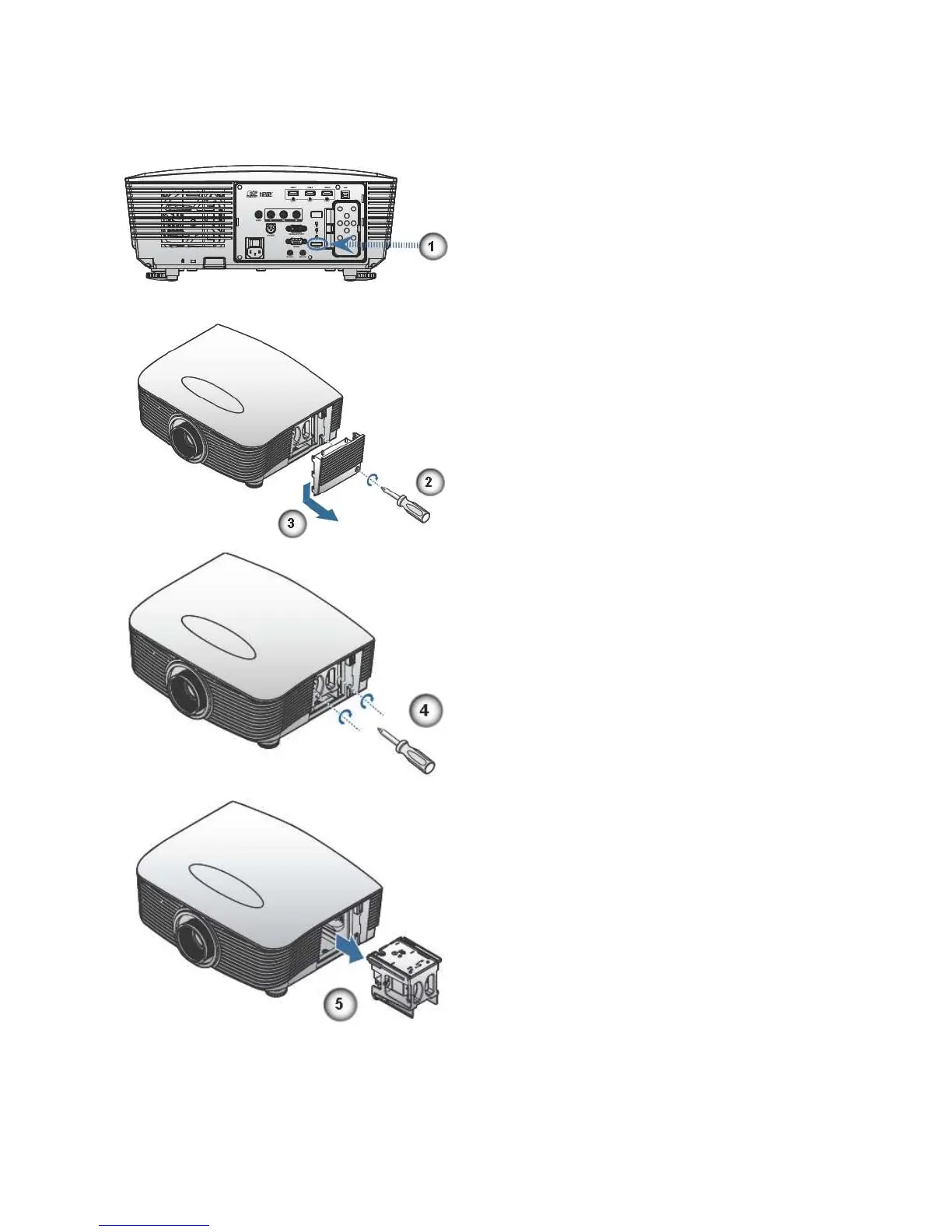

Lamp Replacing Procedure:
1. Switch off the power to the projector by
pressing the Power button.
2. Allow the projector to cool down at least 30
minutes.(1)
3. Disconnect the power cord.
4. Unlock the lamp cover. (2)
5. Pull up and remove the cover. (3)
6. Use a screwdriver to remove the screws
from the lamp module. (4)
7. Pull out the lamp module. (5)
To replace the lamp module,
reverse the previous steps.
1. Turn on the projector and do “Lamp Reset”
after the lamp module is replaced.
Lamp Reset:
(i)Press “Menu” -> (ii)Select “System” ->
(iii)Select “Lamp Settings” ->
(iv)Select “Lamp Reset” ->
(v)Select “Yes”.
