(48H-59H) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
(5AH-6BH) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 85 Hz
Min Horiz. Freq - 30 kHz
Max Horiz. Freq - 91 kHz
Pixel Clock - 170 MHz
GTF - Not Used
(6CH-7DH) Detailed Timing / Descriptor Block 4:
Monitor Name:
HD86
(7EH) Block No: (01) Extension EDID Block(s)
(7FH) CheckSum OK

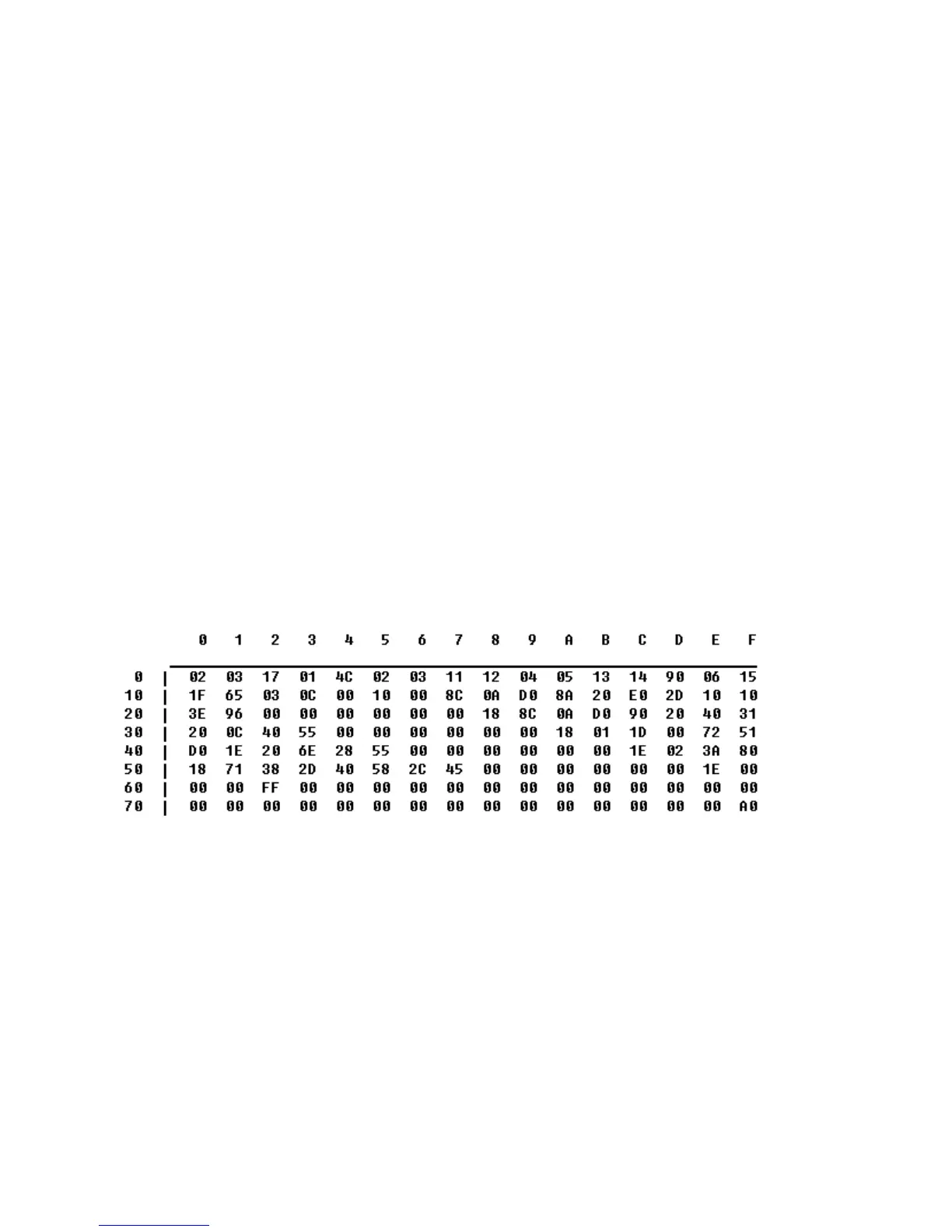

Bytes 128-255 [80H-FFH]
Extended Block Type: CEA 861B
Detailed Timing Blocks start at Byte:(17H)
Native Format: (0x1)
Video Short Block Description:
(05H) 720 x 480 P 59.94/60Hz 4:3
(06H) 720 x 480 P 59.94/60Hz 16:9
(07H) 720 x 576 P 50Hz 4:3
(08H) 720 x 576 P 50Hz 16:9
