optris Xi 80 - Page 43

Mechanical Installation 43-

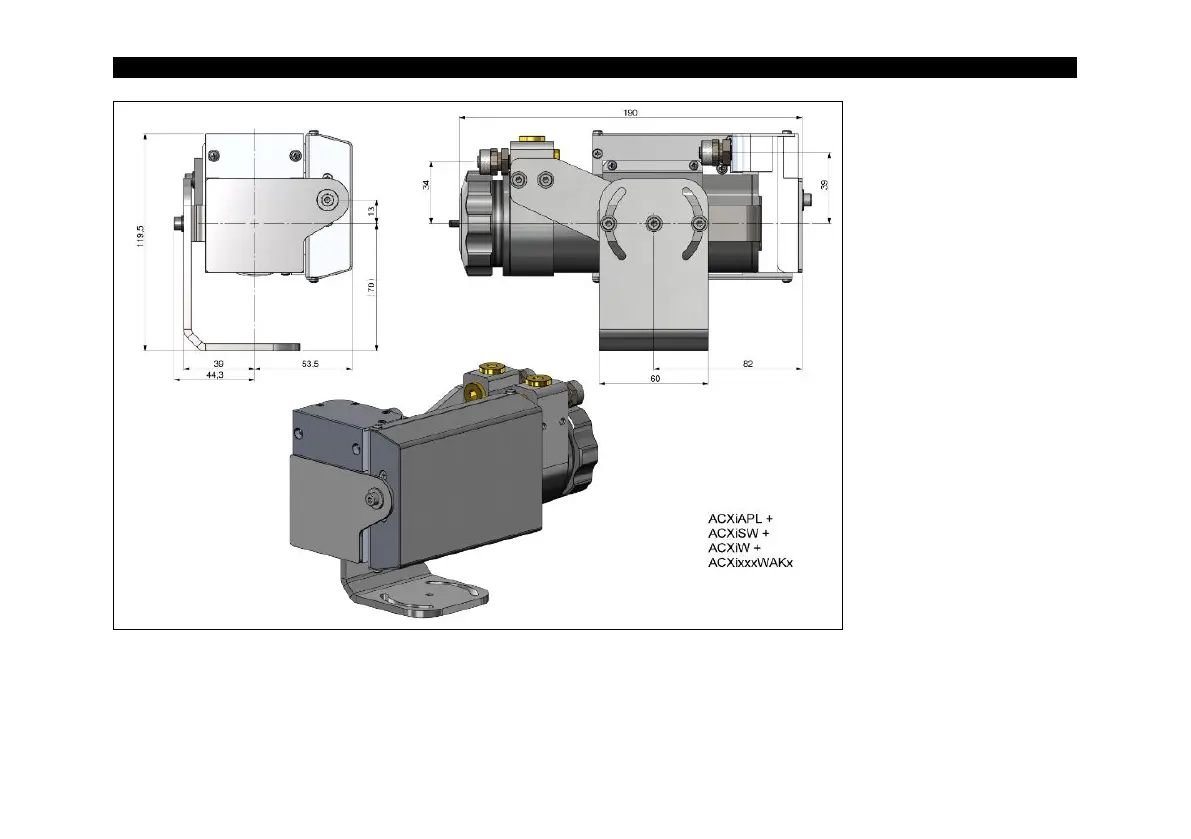

Figure 17: Air purge (ACXIAPL), water cooling (ACXIW), shutter (ACXISW) and appropriate
mounting kit (ACXIxxxWAKx), dimensions [mm]
Components:
• Air purge
• Water cooling
• Shutter
• Mounting kit
