optris Xi 80 - Page 44

-44 -

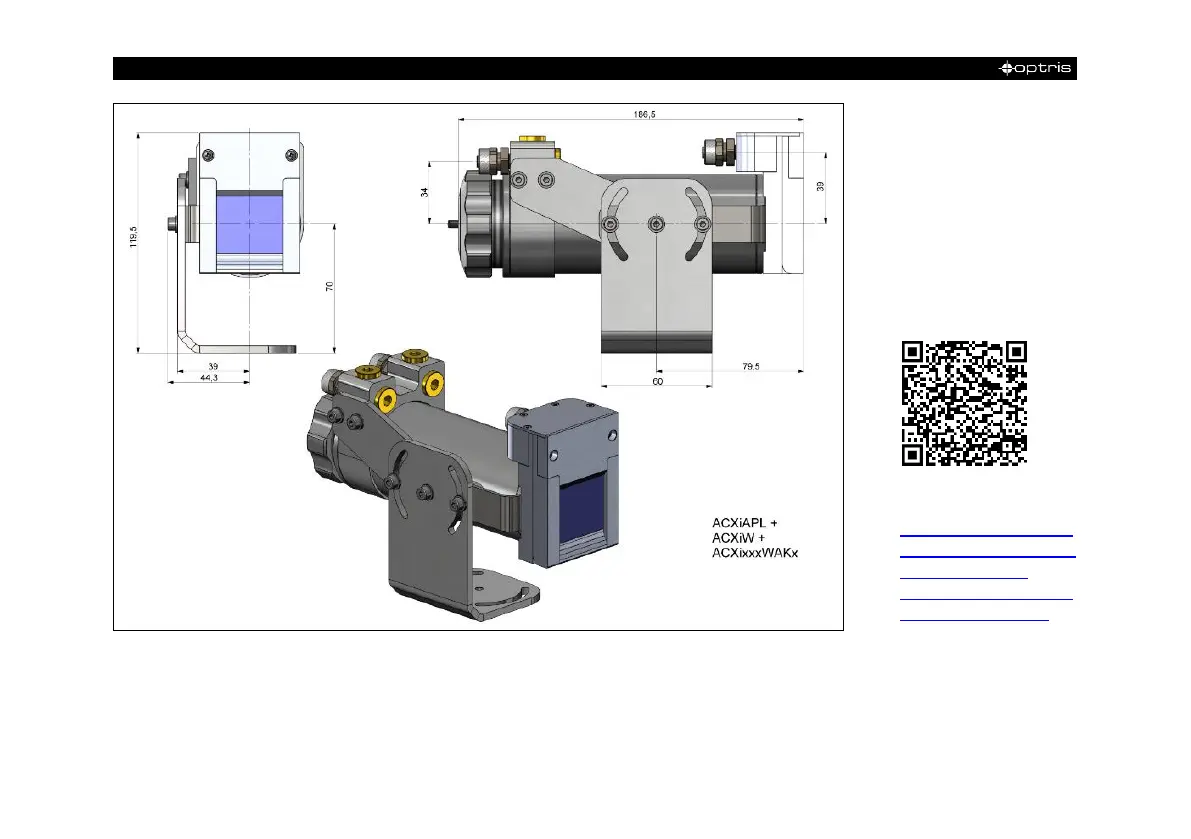

Figure 18: Air Purge (ACXIAPL), water Cooling (ACXIW) and appropriate mounting kit
(ACXIxxxWAKx), dimensions [mm]
Components:
• Air purge
• Water cooling
• Mounting kit
How-to video
https://www.optris.global
/assembly-of-xi-400-into-
the-water-cooling-
housing-with-the-use-of-
the-laminar-air-purge
