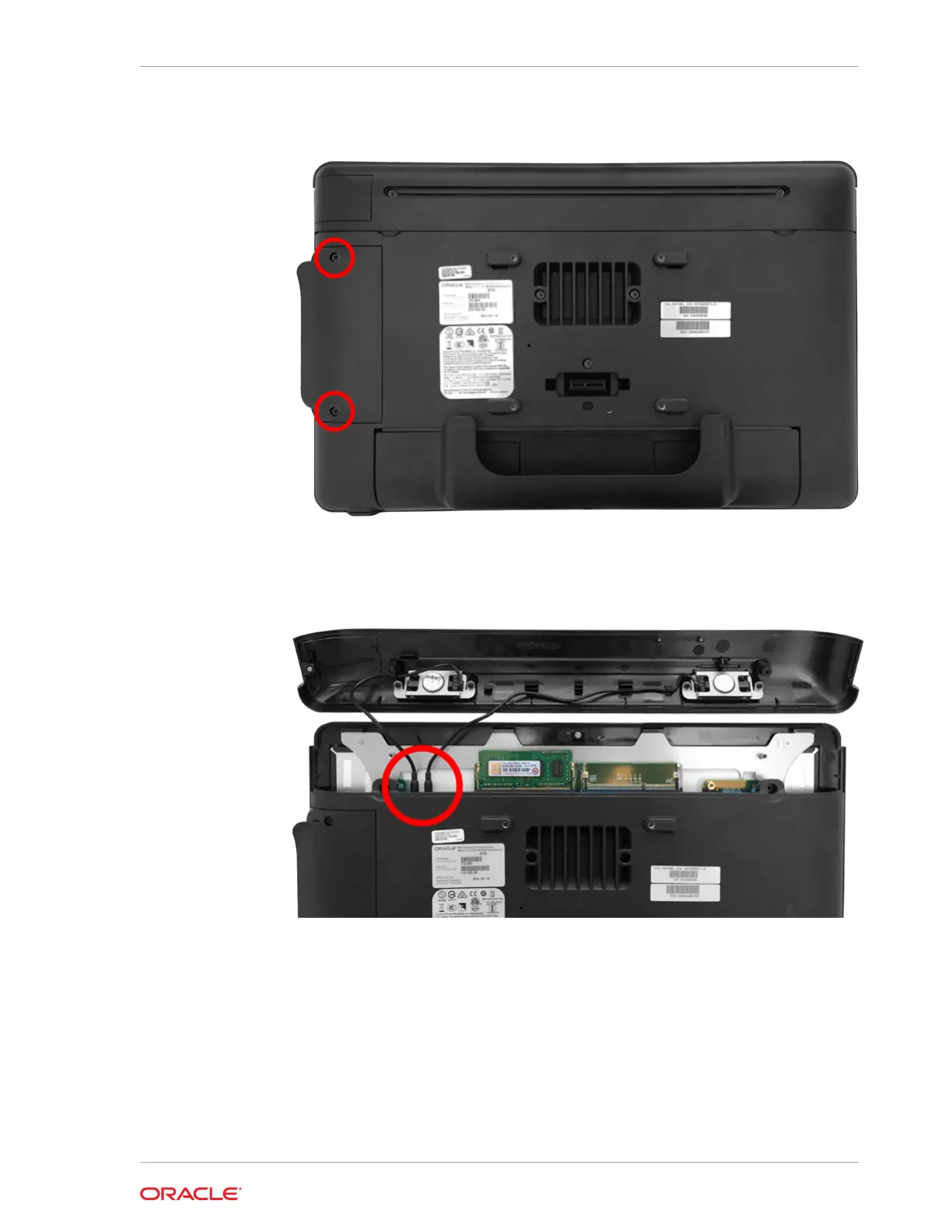

4. Slide in the magnetic stripe reader and tighten the two captive screws.
5. Connect the left and right speaker cables. Connect the speakers based on their
orientation as shown.
6. Place the top cover and tighten the screws to secure the top cover.
Chapter 12
Reassembling the Workstation
12-7
