MICROS Tablet E-Series 8 Dimension

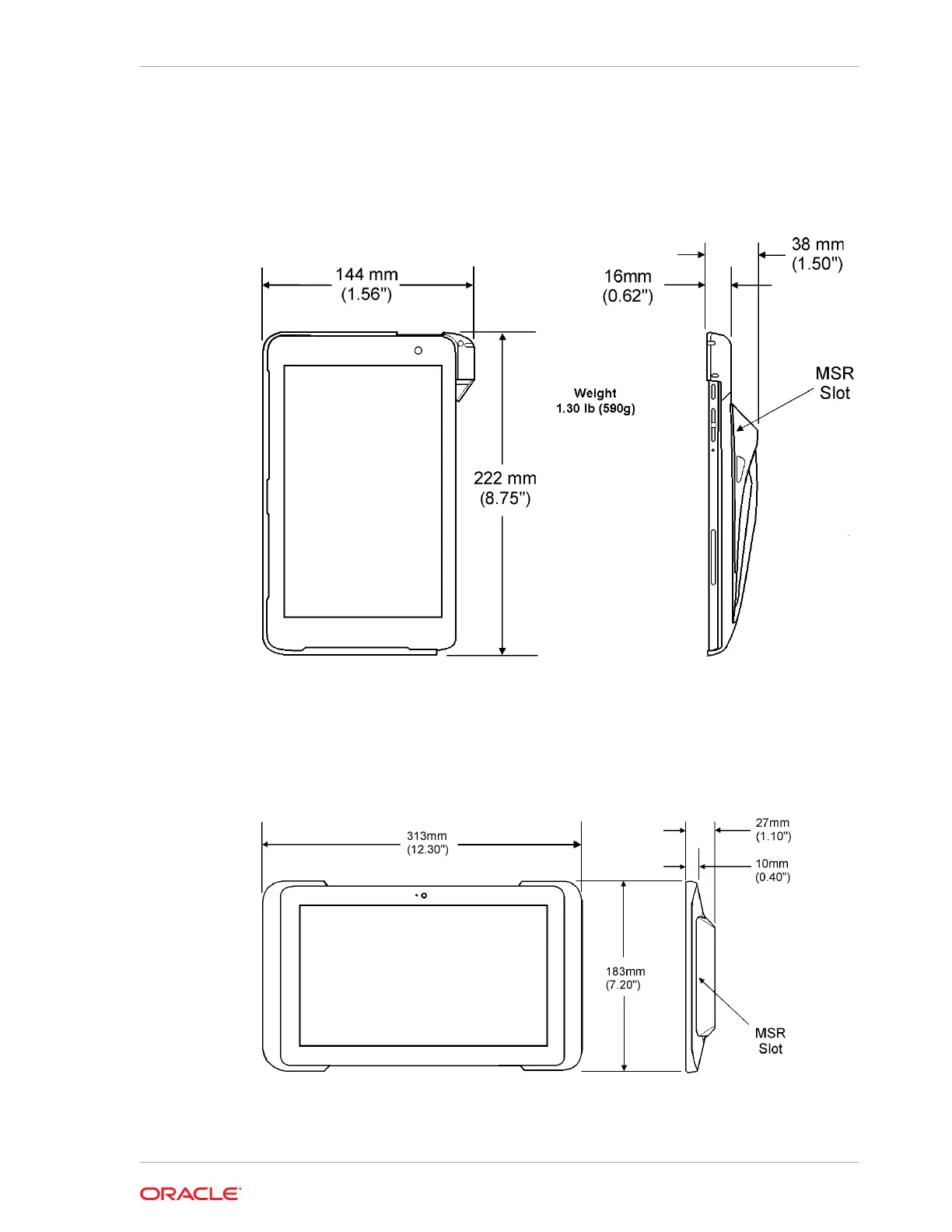

Figure 29-15 Tablet E-Series 8 Dimensions

MICROS Tablet E-Series 11 Dimensions

Figure 29-16 Tablet E-Series 11 Dimensions

Chapter 29

MICROS Tablet E-Series 8 Dimension

29-15
