Order Confirmation System Installation
The Order Confirmation System is composed of an in-store Order Confirmation
Controller (OCC) attached to a curb-side Remote Display Pedestal for drive-through
applications. Refer to Order Confirmation Controller Equipment Dimensions section for
detailed dimensions of the pedestal and base plate.
Order Confirmation Controller (OCC) Requirements
The Order Confirmation Controller requires a Category 6 or better cable run and face
plate. The AC Power Requirements are the same as a MICROS workstation.
The OCC can be placed on a shelf or mounted to a wall with the included wall bracket.
Order Confirmation Controller Equipment Dimensions includes dimensional drawings
of the unit and wall mount bracket.
Remote Display Pedestal Requirements
Listed below are the site preparation requirements for the Remote Pedestal. The
Equipment Dimensions section includes dimensional drawings for the Pedestal and
the pre-attached base plate
Concrete Slab
A 0.23” (6mm) thick base plate is affixed to the pedestal to provide a stable platform.
Mount the base plate to a 1/2” thick concrete slab, roughly the same dimension as the
base plate. An opening for conduit egress is located at the center of the base plate.
For new installations, a minimum of four studs (supplied by the installer) projecting
from the slab is required.

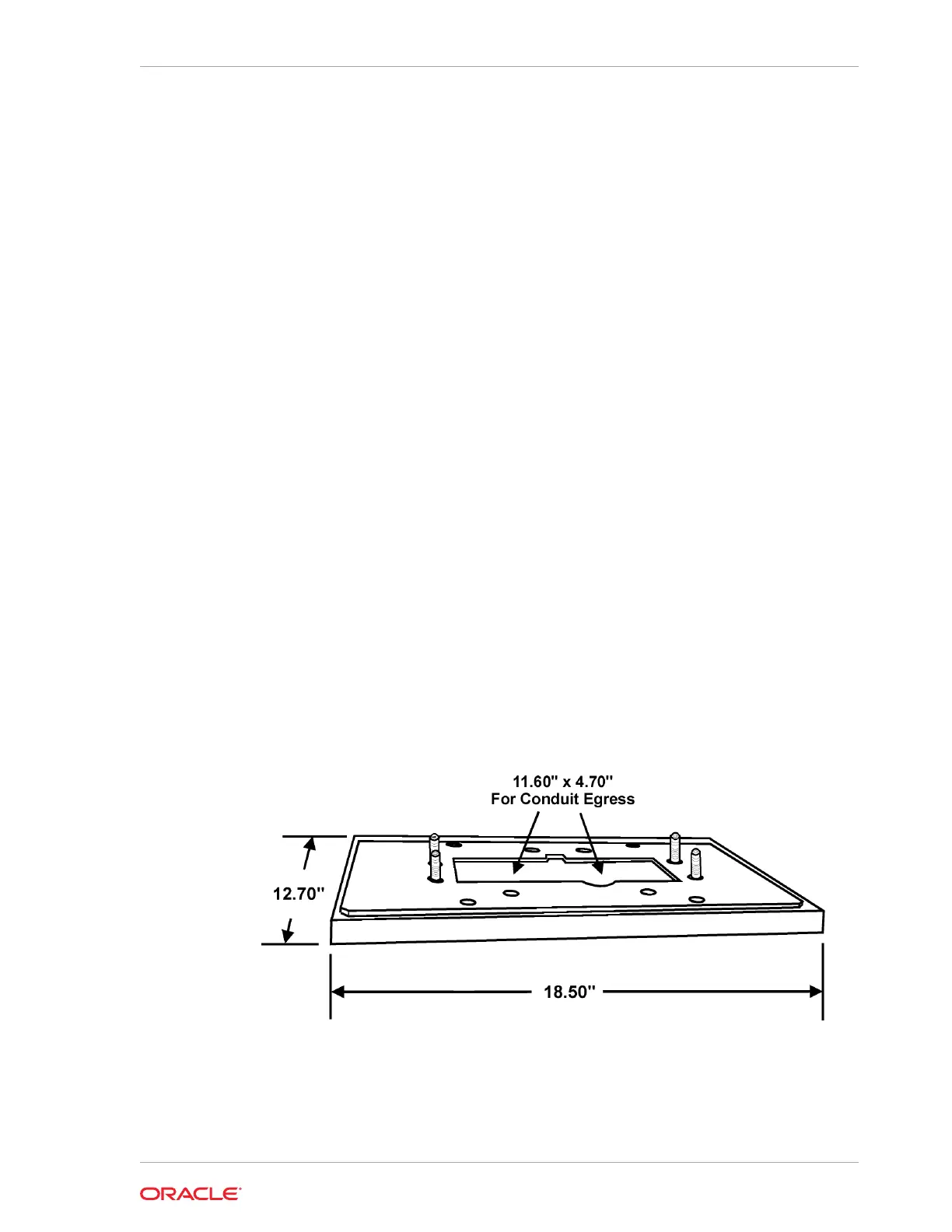

Figure 15-2 Pedestal Slab Example
Conduit Runs
The pedestal requires three independent conduits, AC Power, Audio, and VGA over
Cat 5e cable.
Chapter 15
Order Confirmation System Installation
15-3
